Quectel EM06 Series User Manual

LTE-A Module Series
EM06 Series Hardware Design
EM06_Series_Hardware_Design 49 / 69
Table 27: Major Specifications of Antenna Connectors
Item
Specification
Nominal Frequency Range
DC to 6 GHz
Nominal Impedance
50 Ω
Temperature Rating
-40 °C to +85 °C
Voltage Standing Wave Ratio (VSWR)
Meet the requirements of:
Max 1.3 (DC–3 GHz)
Max 1.45 (3–6 GHz)
The receptacle accepts two types of mating plugs to meet two maximum mated heights: 1.20 mm (using a
Ø 0.81 mm coaxial cable) and 1.45 mm (using a Ø 1.13 mm coaxial cable).
The following figure shows the specifications of mating plugs using Ø 0.81 mm coaxial cables.

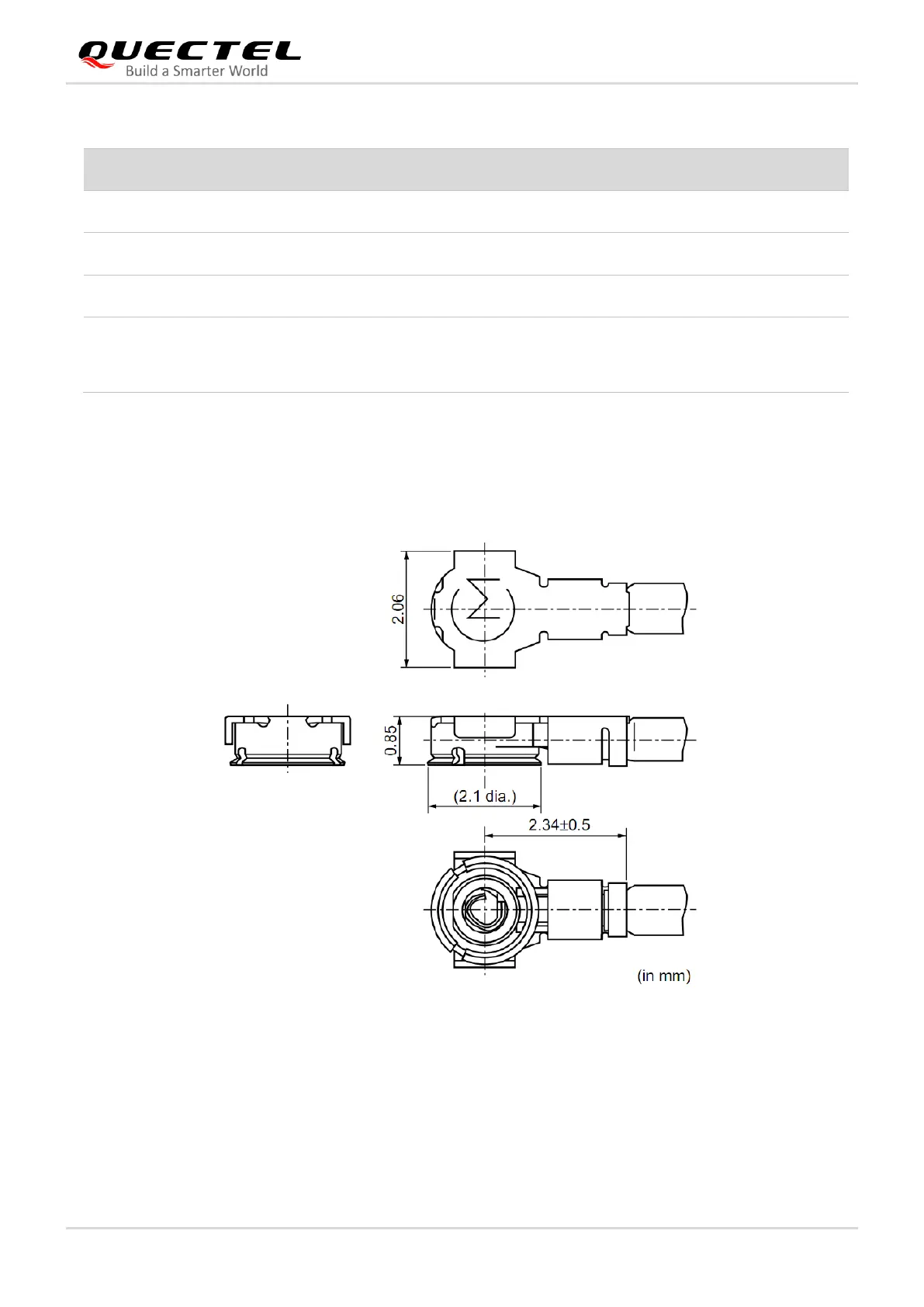

Figure 27: Specifications of Mating Plugs with Ø 0.81 mm Coaxial Cables
