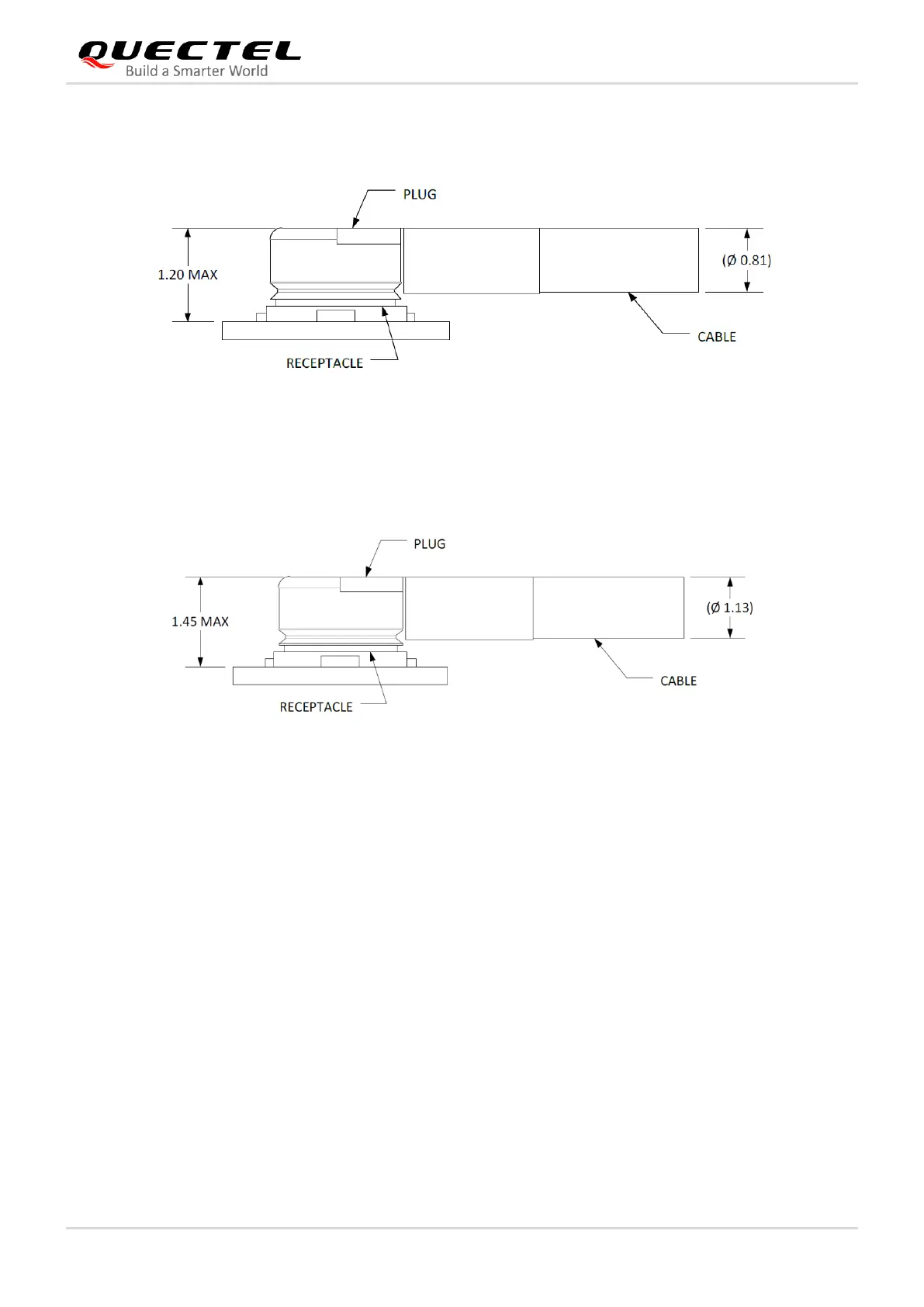

The following figure illustrates the connection between the receptacle antenna connector on EM06 series
and the mating plug using a Ø 0.81 mm coaxial cable.
Figure 28: Connect Receptacle and Mating Plug Using Ø 0.81 mm Coaxial Cable
The following figure illustrates the connection between the receptacle antenna connector on EM06 series
and the mating plug using a Ø1.13 mm coaxial cable.
Figure 29: Connect Receptacle and Mating Plug Using Ø 1.13 mm Coaxial Cable
