GNSS Module Series
L89 EVB User Guide
L89_EVB_User_Guide 11 / 26
3 Interface Applications
3.1. Micro-USB Interface
The main power is supplied through the Micro-USB interface. The Micro-USB interface is configured to
transfer electrical energy and output NMEA data to the L89 EVB.
Micro-USB
Interface

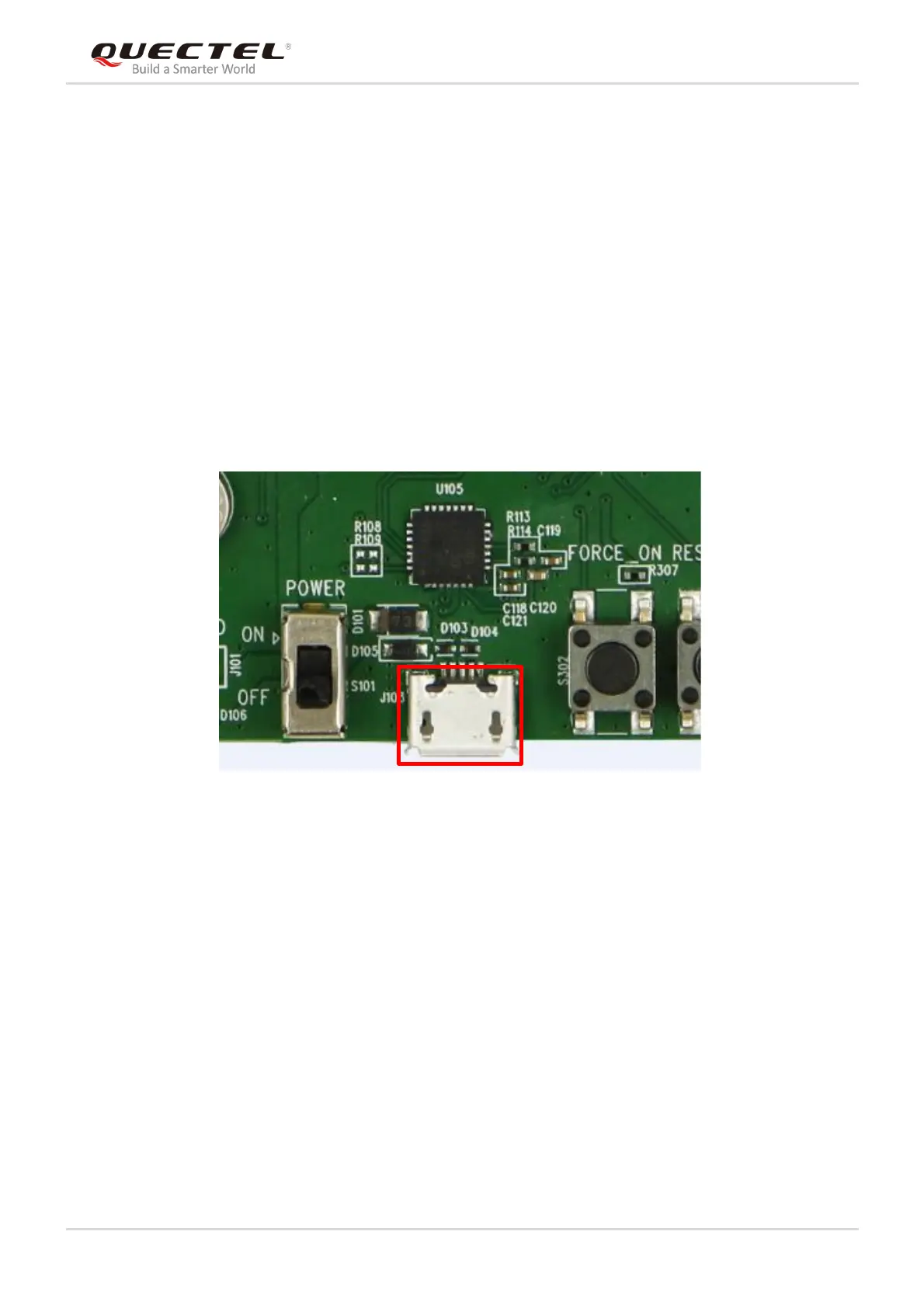

Figure 4: Micro-USB Interface
