5.1.2. Explanations of Views and Windows

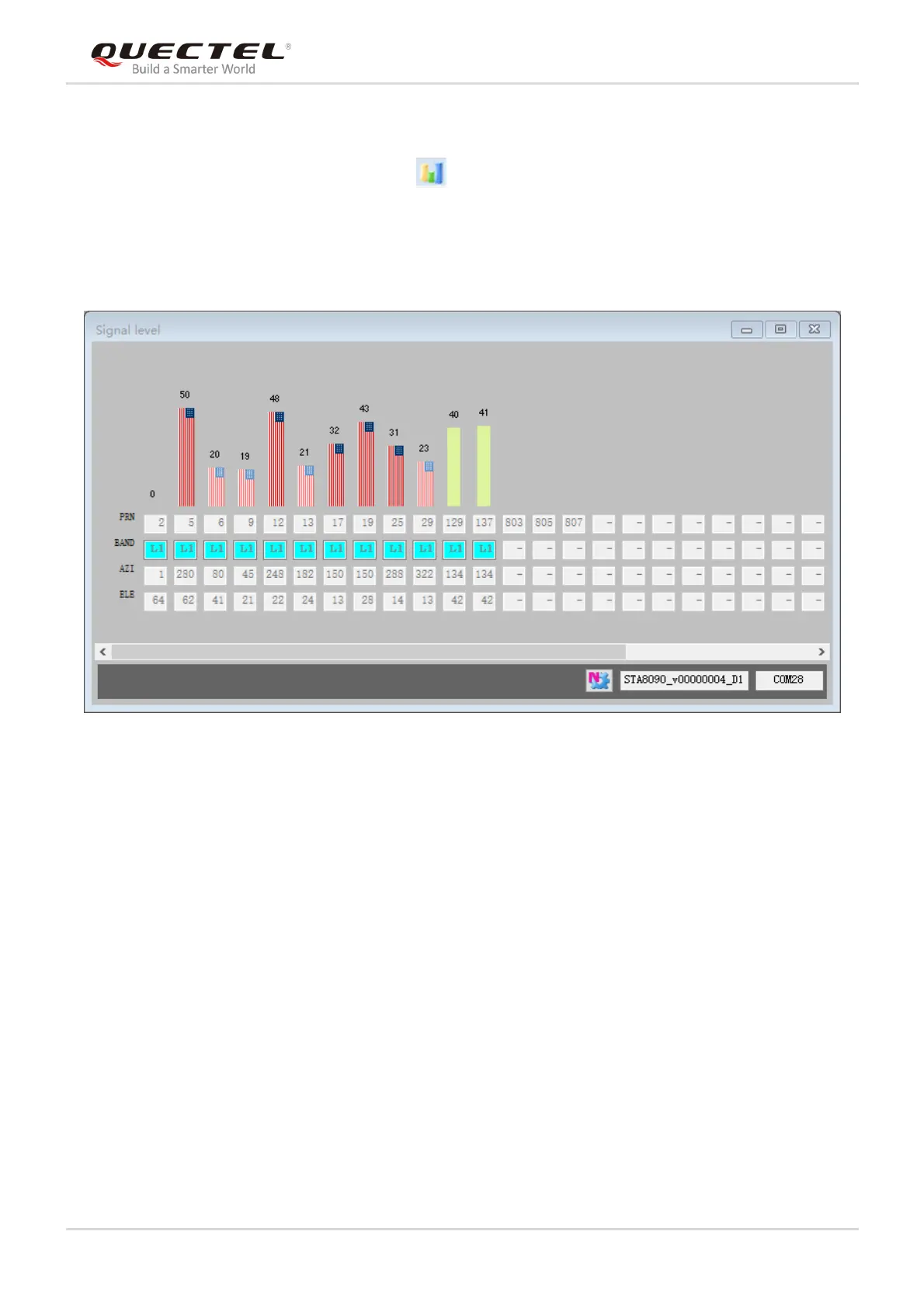

The following interface will be displayed after button is clicked. The digit shown above each column
is the CN value. The digits shown below each column are displayed information such as the PRN, the
frequency band (BAND) used by the satellite, the azimuth (AZI) and the elevation (ELE) of the satellite.
Bright-colored columns indicate that the navigation data of this satellite is in use, while faded columns
indicate no usage of the navigation data.
Figure 15: Signal Level
