4.2. QGNSS Interface Explanation
You can view GNSS information, such as C/N
0
message, time, position, speed, and precision in the
QGNSS interface. See the following table to find out more about these parameters.
Table 6: QGNSS Interface Explanation

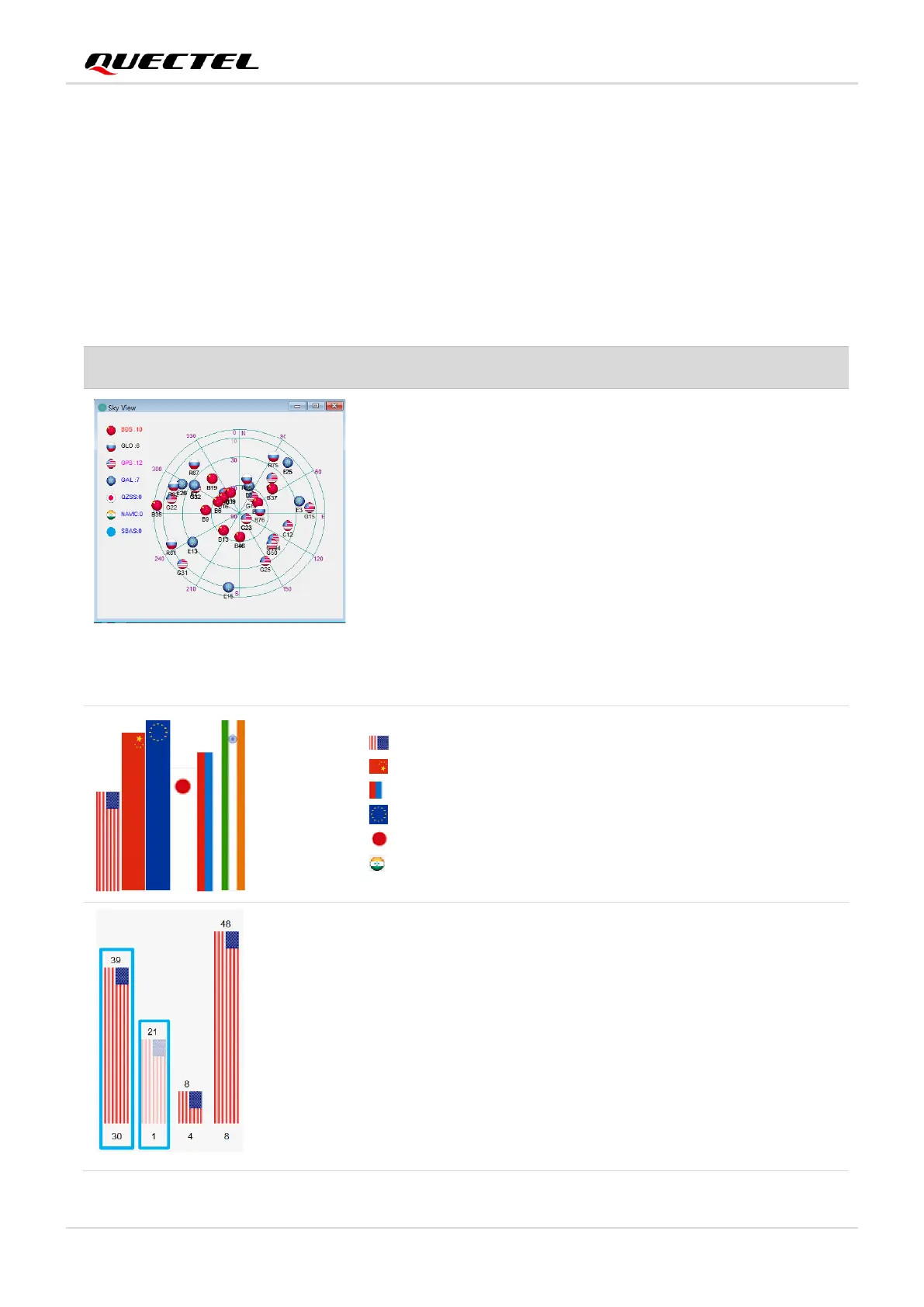

This sky view interface shows the position of the satellites in use.
1) The left column icons show the satellites in use and their
numbers.
⚫ BDS: 10
⚫ GLO (GLONASS): 6
⚫ GPS: 12
⚫ GAL (Galileo): 7
⚫ QZSS: 0
⚫ NAVIC: 0
⚫ SBAS: 0
2) The sky view on the right shows the position of the satellites
in use.
⚫ PRN 30 C/N
0
is 39 dB-Hz.
⚫ Column in bright red means that the navigation data of the
satellite is in use.
⚫ PRN 1 C/N
0
is 21 dB-Hz.
⚫ Column in light red means that the navigation data of the
satellite is not in use.
