5G Module Series
RG500L_EVB_User_Guide 15 / 38
2.3. Top and Bottom Views of RG500L EVB
The following figures show top and bottom views of the RG500L EVB.

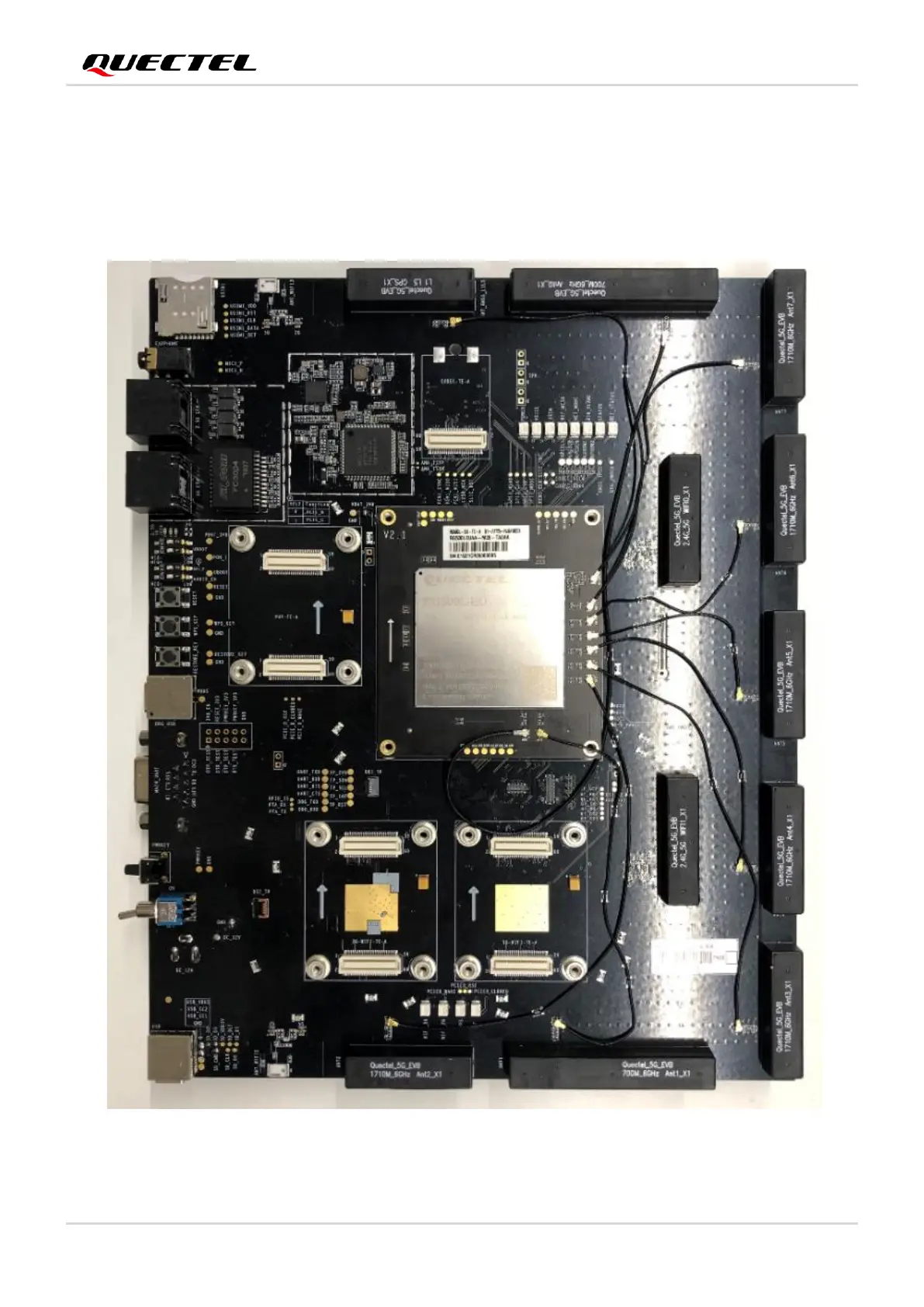

Figure 3: RG500L EVB Top View
