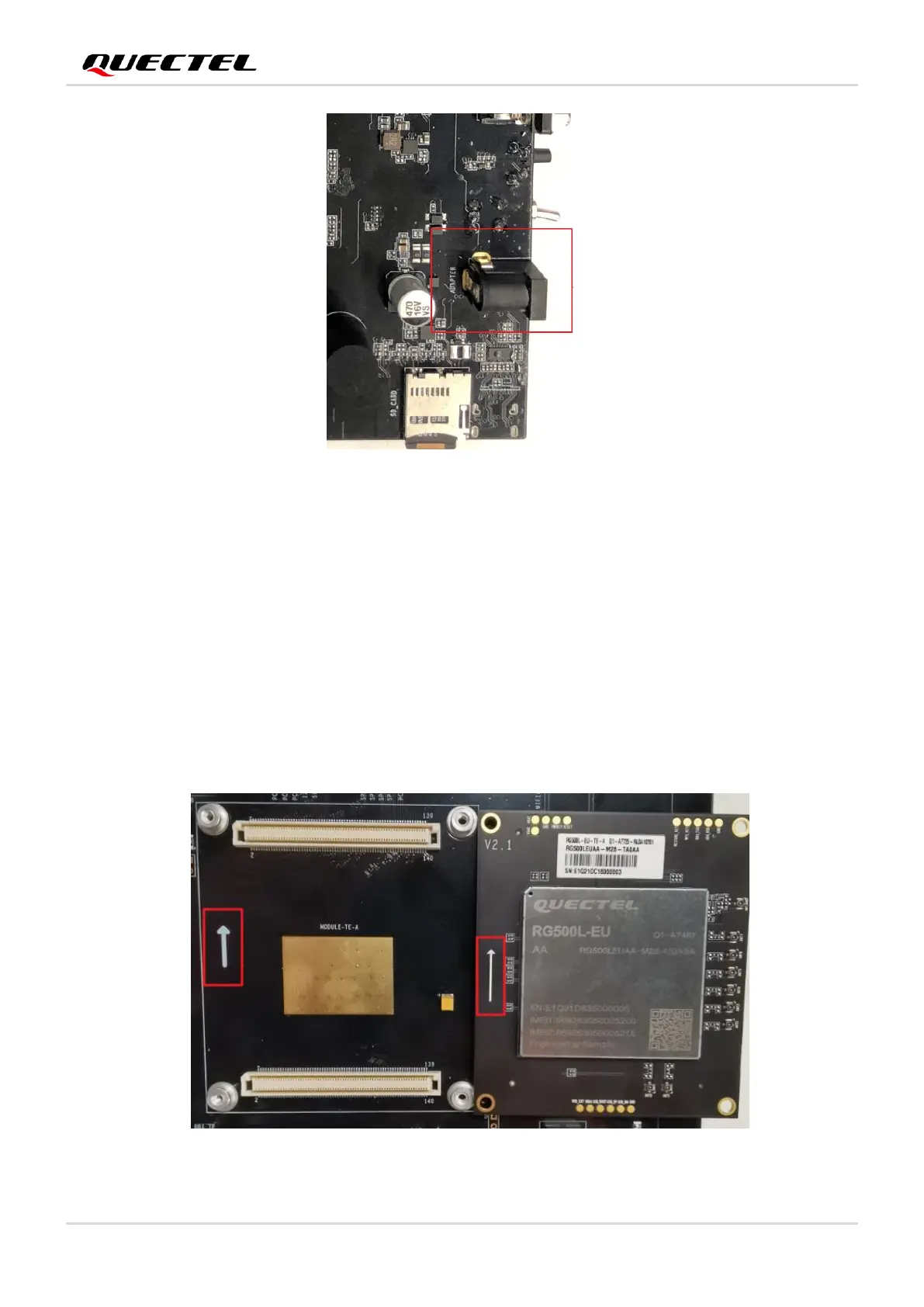

Figure 6: EVB Power Supply Interface
3.2. Module TE-A Interface (J0101/J0102)
Module TE-A interface is designed to accommodate the TE-A of the module. The TE-A is mounted onto
and connected to the EVB via BTB connectors J0101 and J0102 so that the developer will be able to test
the functionalities of the modules easily (please insert the TE-A as indicated by the arrow to prevent
reverse insertion).
The following figure shows the connection between the module TE-A and the EVB.
Figure 7: Connection Between Module TE-A and EVB
