3.7. Switches and Buttons
The RG500L EVB includes three switches (S0203, S0401 and S1205) and four buttons (S1201, S1202,
S1203 and S1204), as shown in the following figures.
S0203
Power Switch

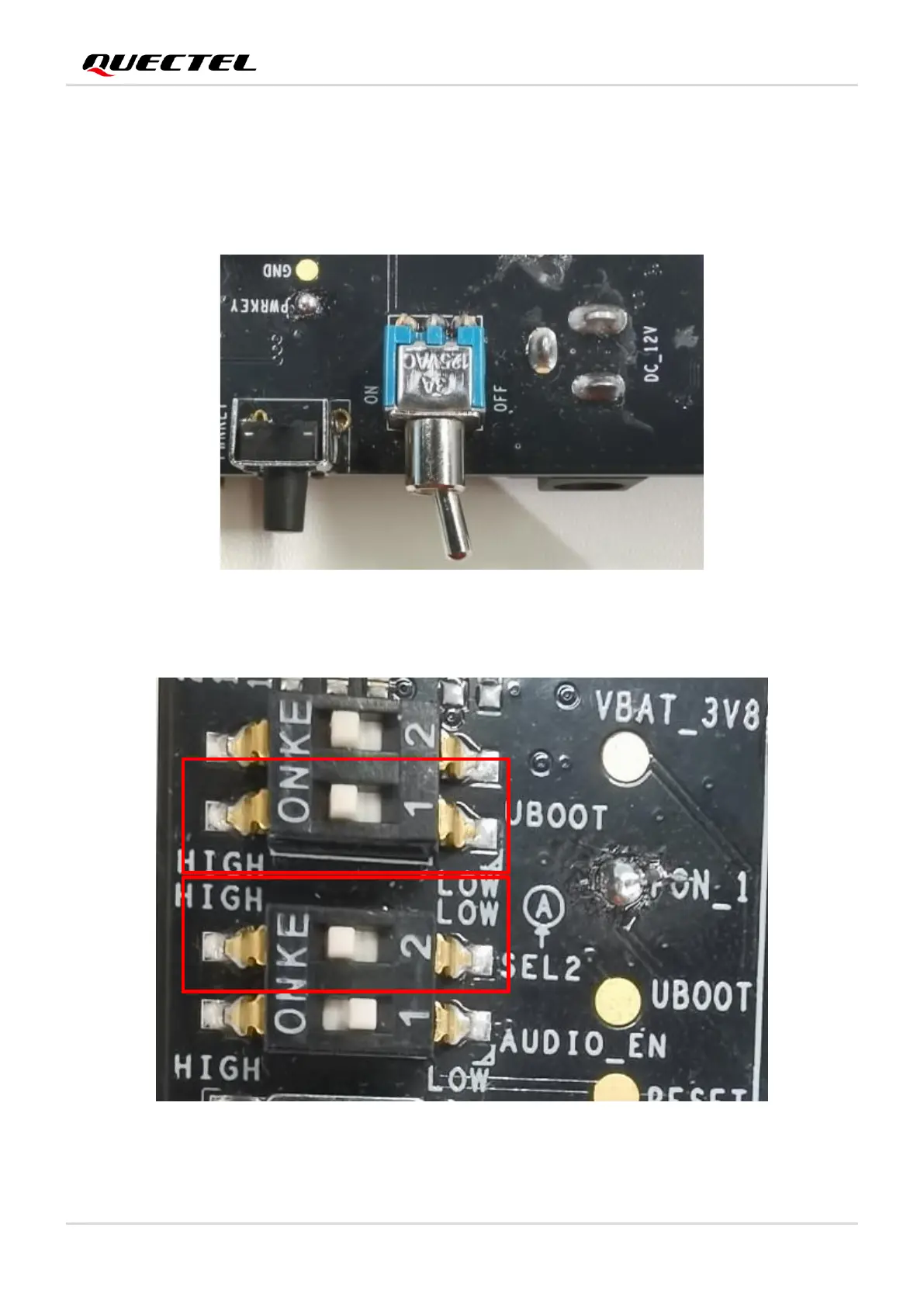

Figure 16: Power Switch (S0203)
S1205
USB_BOOT Switch
S0401
PCIe Port Switch
Figure 17: USB_BOOT Switch (S1205) and PCIe Port Switch (S0401)
