WPS_KEY
RESET
S1203
RESTORE_KEY
S1201

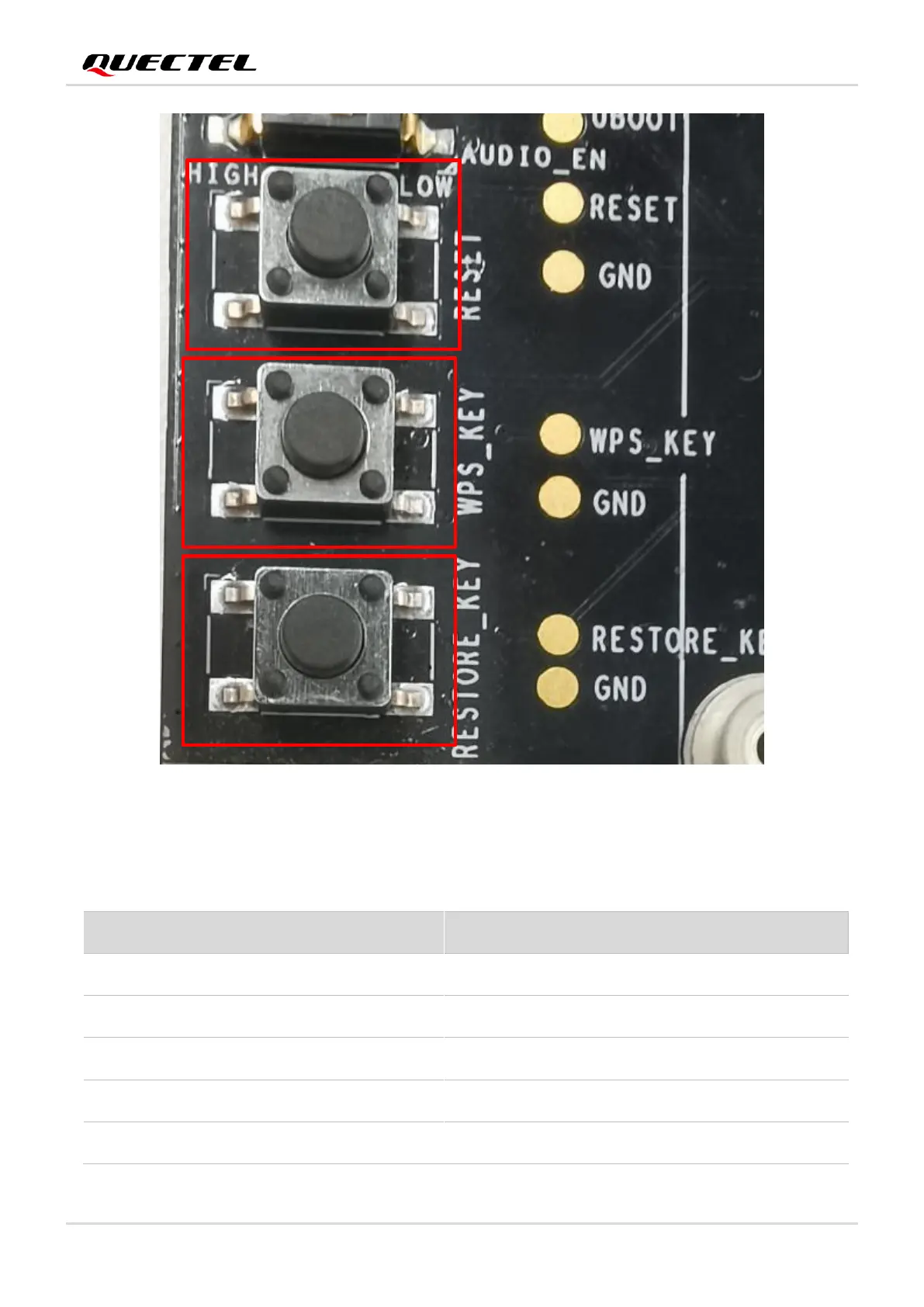

Figure 19: RESET/WPS_KEY/RESTORE_KEY Buttons (S1204/S1203/S1201)
Table 6: Description of Switches and Buttons
Switch/Button
Reference Designator
Description
Power Switch
S0203
VBAT ON/OFF control
PWRKEY Button
S1202
Power key used to turn on/off the module
PCIe Port Switch
S0401
Used to select PCIe port. For details, see Table 5.
RESET Button
S1204
Reset button used to reset the module
WPS_KEY
S1203
Wi-Fi protected setup
