5G Module Series
RG500L_EVB_User_Guide 30 / 38
D0501
D0502
D0504
D0503

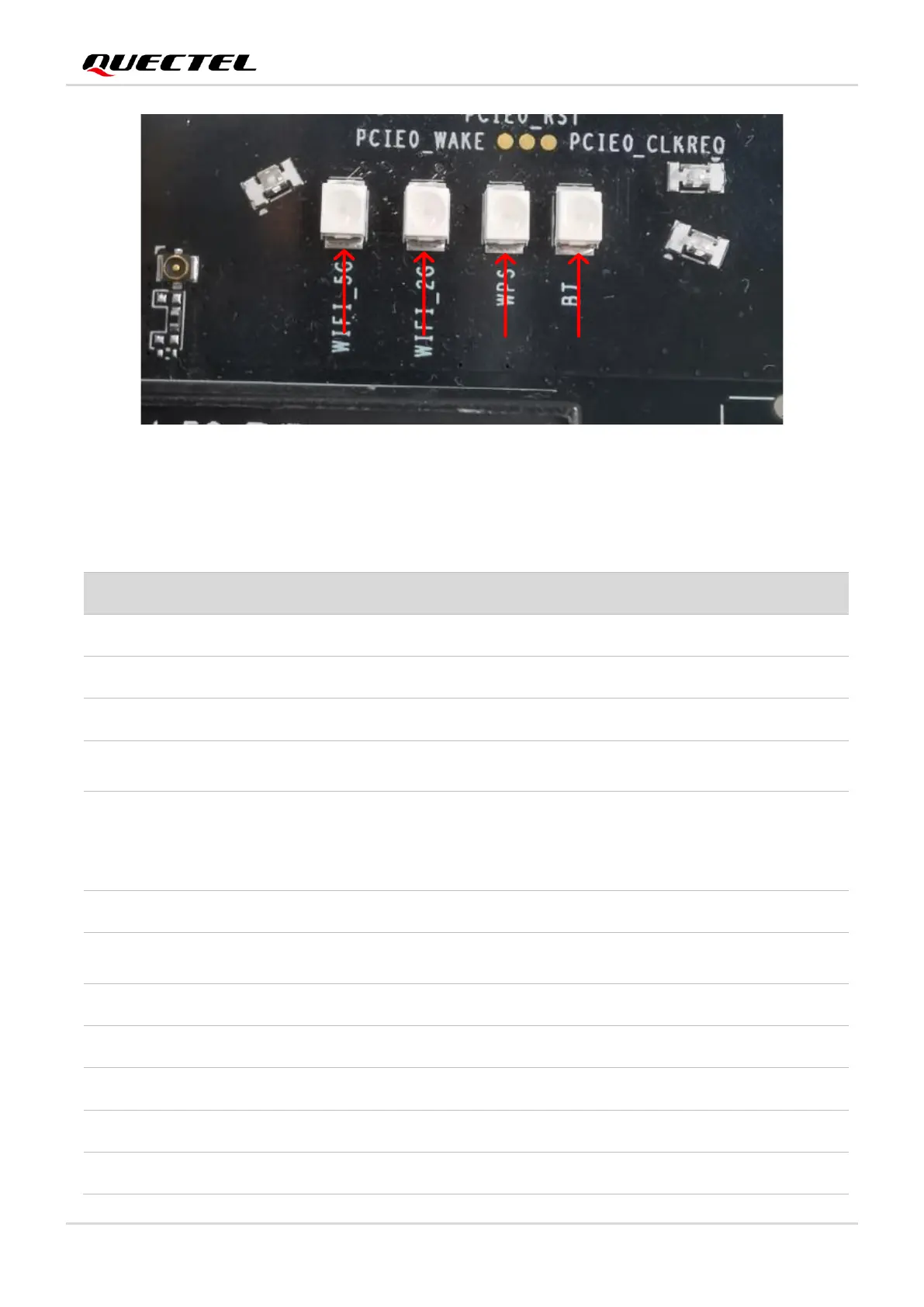

Figure 21: Wi-Fi/Bluetooth Status Indicators
Table 7: Description of 12 Status Indication LEDs
Reference Designator
Description
D1201
Indicates the VoIP function status.
D1202
Indicates the (U)SIM card function status.
D1203
Indicates the Wi-Fi mesh function status.
D1204
Network mode indicator, indicating whether the module has registered on
5G network.
D1205
Power supply on/off indicator, indicating whether the module’s power
supply is turned on or off.
LED on: VBAT ON
LED off: VBAT OFF
D1206
Indicates the module's flight mode.
D1207
Module’s operation status indicator, indicating whether the module is
powered on.
D1208
Indicates the module’s network activity status.
D0501
Indicates the Wi-Fi 5G function status.
D0502
Indicates the Wi-Fi 2.4G function status.
D0504
Indicates the Wi-Fi WPS function status.
D0503
Indicates the Bluetooth function status.
