Quectel UMTS&LTE EVB - Wi-Fi & Ethernet TE-A Interface

UMTS/HSPA/LTE Module Series
UMTS&LTE EVB User Guide
UMTS&LTE_EVB_User_Guide Confidential / Released 19 / 44
J101
J102

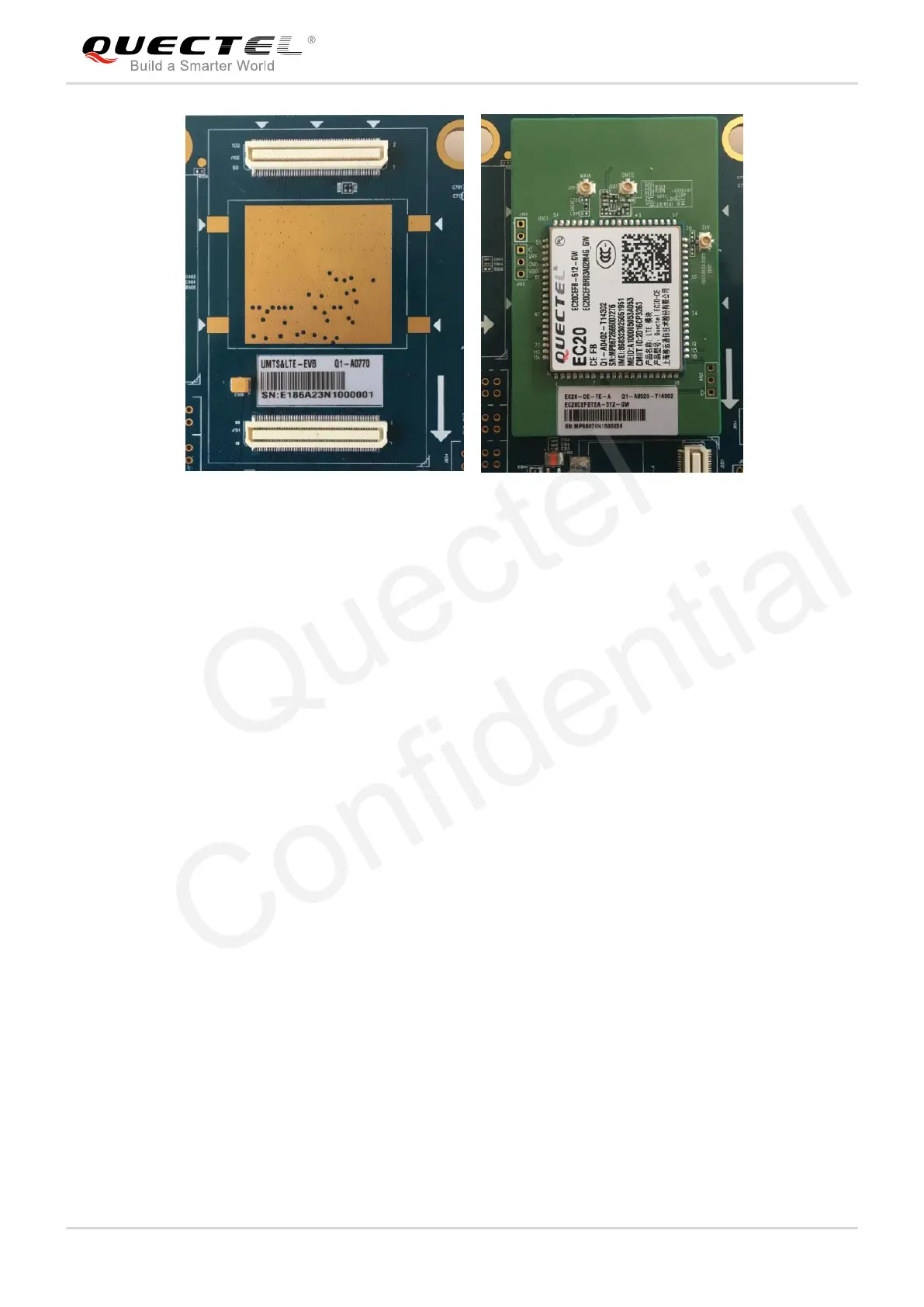

Figure 8: Connection between UMTS&LTE TE-A and EVB
4.3. Wi-Fi & Ethernet TE-A Interface
The Wi-Fi & Ethernet TE-A interface supports FC20 modules, and includes two BTB connectors named
J901 and J902, respectively. Wi-Fi & Ethernet TE-A (FC20 TE-A) is connected to the EVB via the two
connectors. The interface allows customers to easily test the Wi-Fi function of EC2x modules or to
develop applications with Wi-Fi function.
The following two figures show the connection between FC20 TE-A and EVB.
