4.5.2. Analog Audio Interfaces (J603/J601/J602)
4.5.2.1. Loud Speaker Interface (J603)
Audio interface J603 is designed for loud speaker and the following figure shows a reference design of
loud speaker with an external Class-D audio amplifier.
LOUDL/P
LOUDR/N
Differential layout
Amplifier
circuit
10pF
10pF
33pF
33pF
Close to speaker
GND
GND
ESD
ESD
Codec
FB
FB
C1
C2
J603
U101
ALC5616/T
LV3104
NCP2823
BTB CON
J501

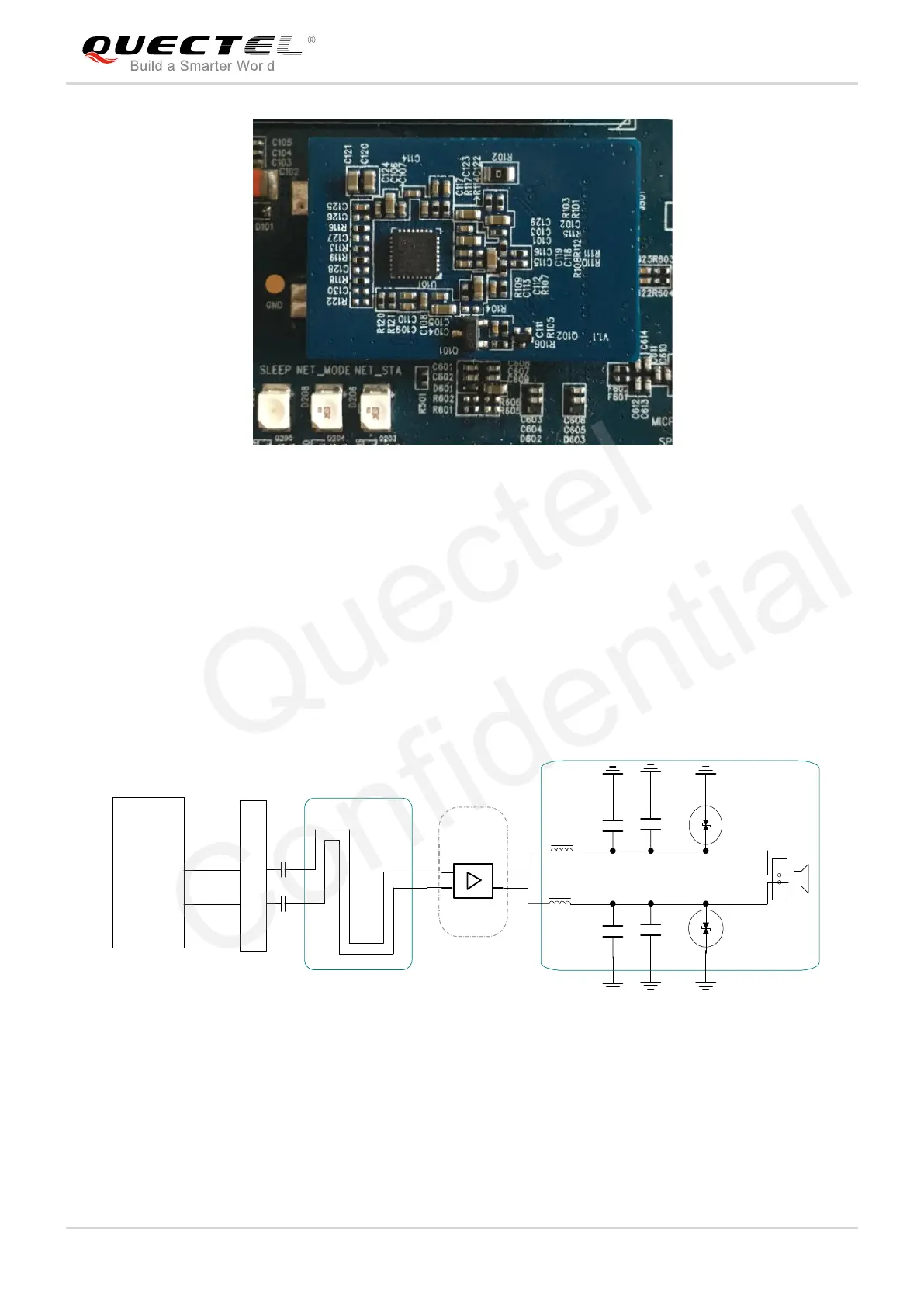

Figure 14: Reference Circuit Design for Loud Speaker Interface J603
