UMTS/HSPA/LTE Module Series
UMTS&LTE EVB User Guide
UMTS&LTE_EVB_User_Guide Confidential / Released 16 / 44
3 EVB Kit Accessories Assembly
The following figure shows the EVB Kit accessories assembly.

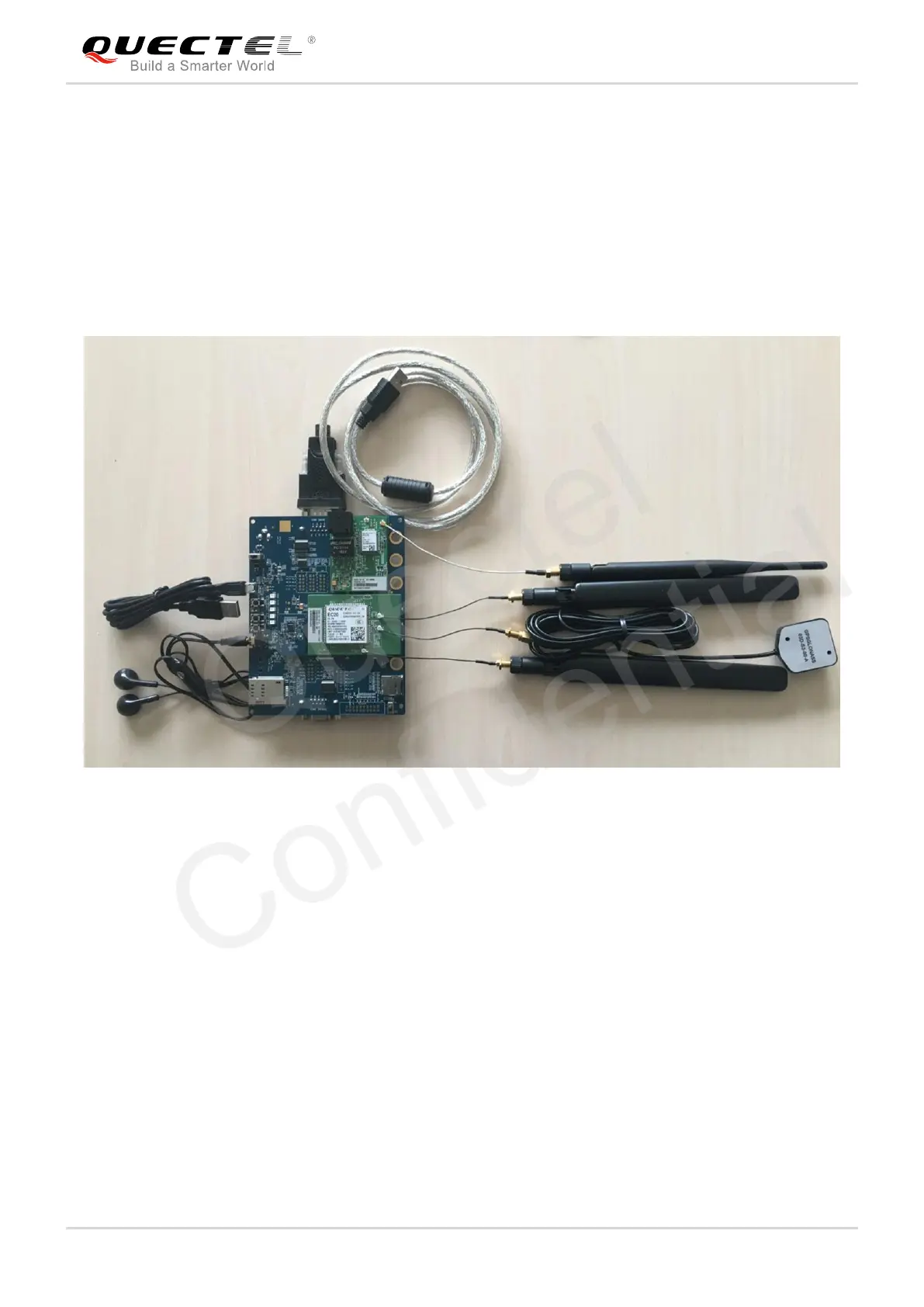

Figure 4: UMTS&LTE EVB Kit Accessories Assembly
