UMTS/HSPA/LTE Module Series
UMTS&LTE EVB User Guide
UMTS&LTE_EVB_User_Guide Confidential / Released 11 / 44
2.3. Interface Overview
COM1 (MAIN)
J201
J801
S201
S303
Micro USB
interface
J702
Power
supply
Power
switch
RESET
D209
J401
S302
PWRKEY
D205 D207
D208 D206
FC20 TE-A
EC2x TE-A
SD card
GND
J302
J103
USIM/SIM
card
connector
J402
COM2 (DBG)
VBAT
J805
J902
J901
60Pin
60Pin
J102
J101
100Pin
100Pin
J701
J806
J804
S901
S301
PWRDWN_N
J501
60Pin
J803
J601
Earphone
Test Points
UGxx TE-A
EG95 TE-A
UC20 TE-A
Codec board
interface
Handset
J602
Test Point
146.4
115

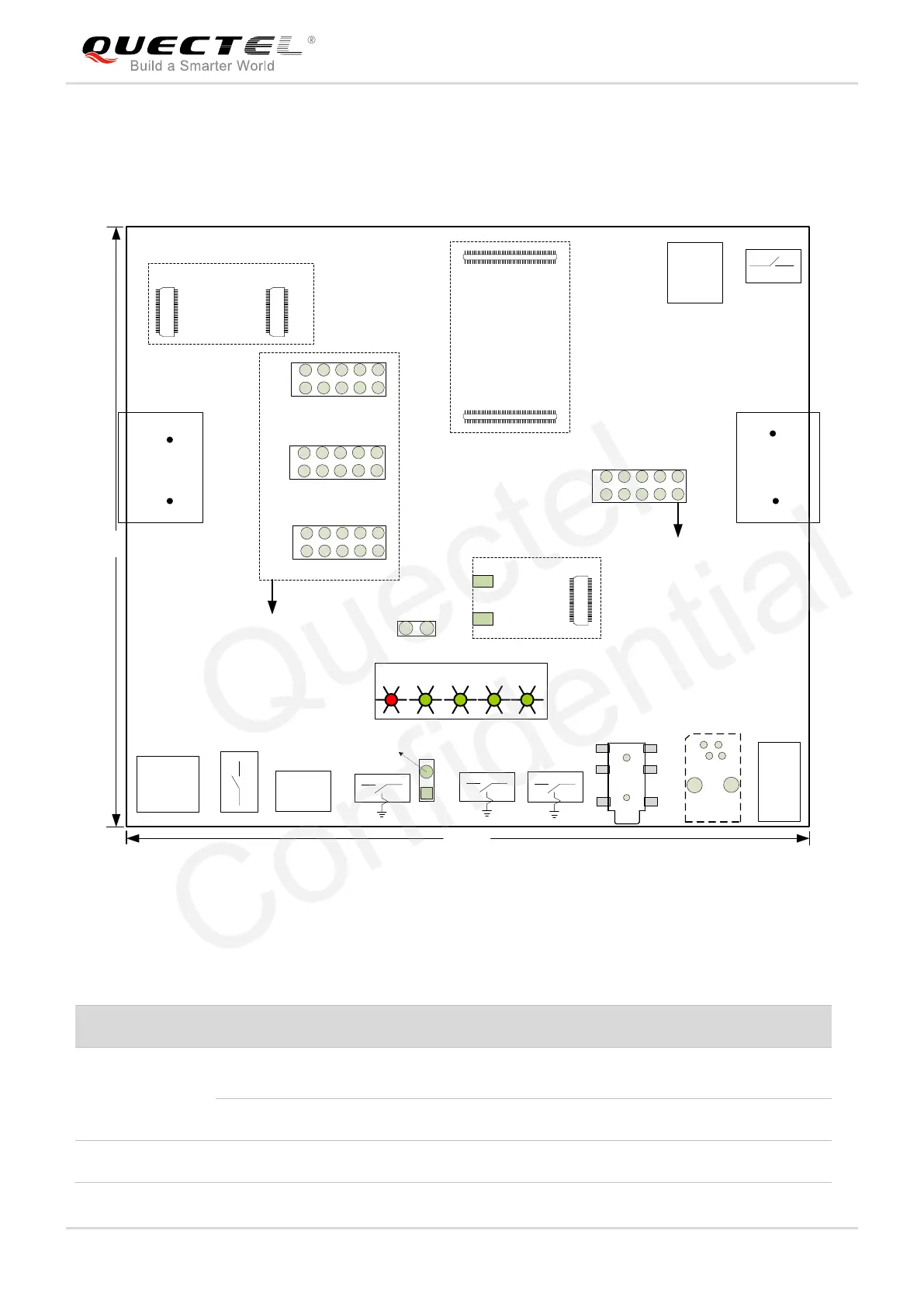

Figure 1: UMTS&LTE EVB Interface Overview (Unit: mm)
Table 2: Interfaces of UMTS&LTE EVB
Interface
Reference No.
Description
Power Supply
1)
J201
(bottom side)
The power jack on the EVB. Supply voltage typically: +5V
J801
USB_VBUS supplies voltage typically: +5V
Power Switch
S201
Control power supply VBAT ON/OFF
Quectel
Confidential
