QUICK-ROTAN MINI-STOP Q41MSII - Programming by the User

9. Programming by the User
Enables machine functions and parameters to be switched on or set up.
User programming of the SERVO-TOP can be carried out via
- external operator's control panel OC-TOP or
- the miniature integrated control panel (MPF)
The user programming of the SERVO-TOP is possible by means of the OC-TOP via:
- direct programming (only with drives from function level 40) and/or
- programming parameters.
The programming of parameters is possible via three levels of program:
- Programming on level A (operator level)
- Programming on level B (technician’s level)
- Programming on level C (special level)
9.1 User Programming with Operator Panel OC-TOP / DQ

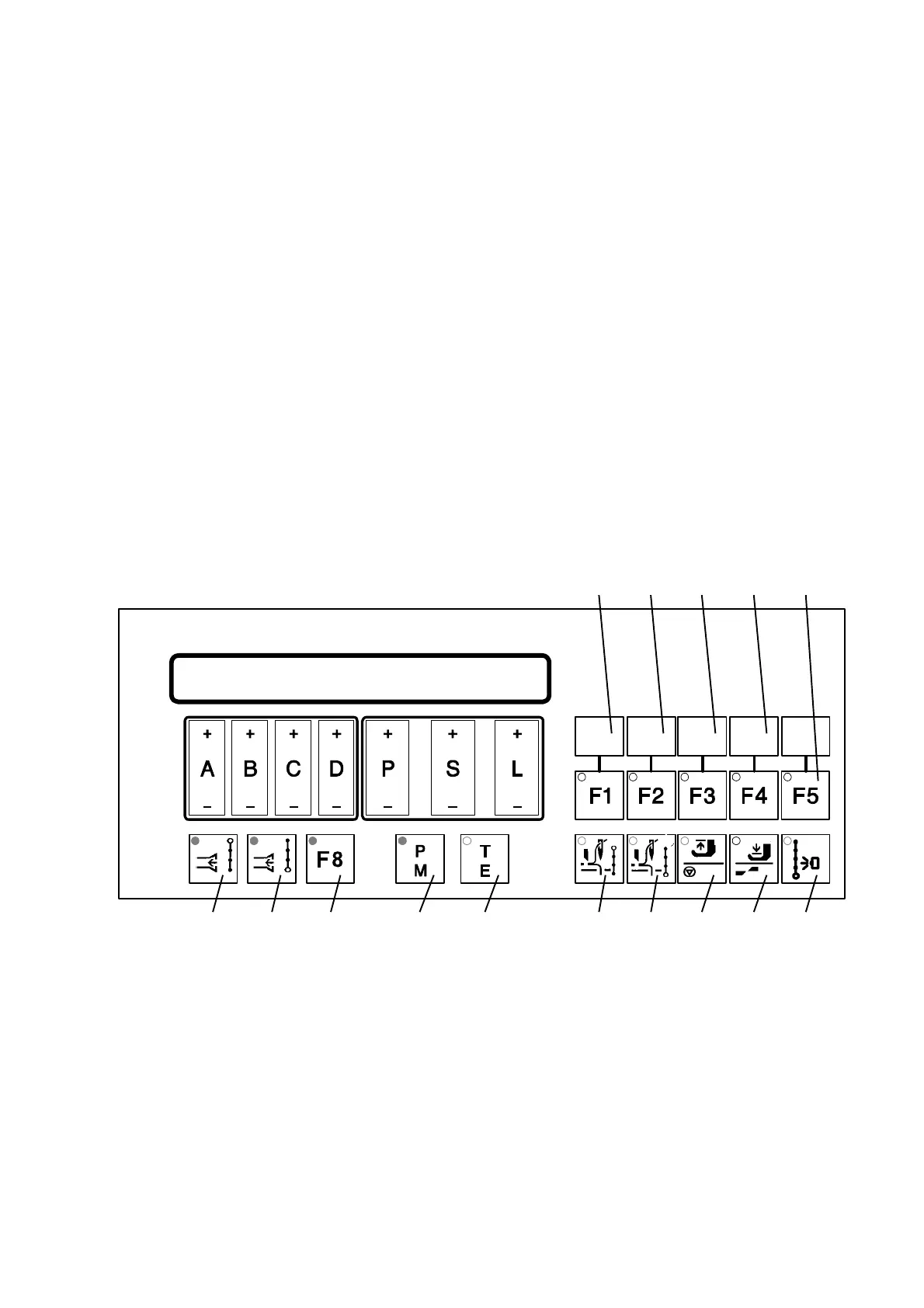

Fig. 9.1
30 00 0 2 0 1/00
T6 T7 T9
T10
T1 T2 T4T3 T5
T8 T11 T12 T13 T14 T15
