7.4 External Operator Panel OC-TOP / DQ

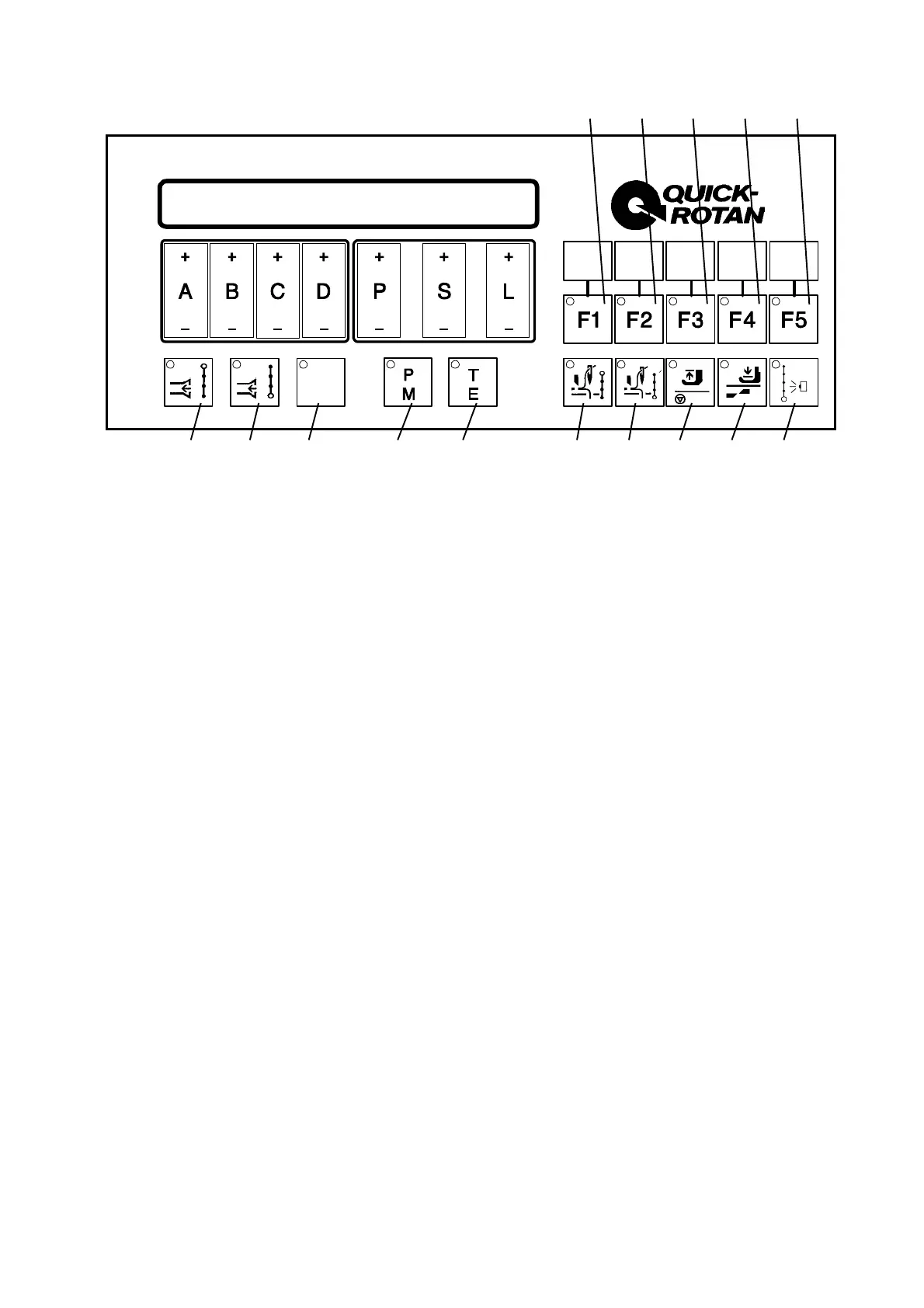

Fig. 7.2
The operator panel OC-TOP / DQ (Fig. 7.2) has the following components:
- a display: 16-digit LCD matrix
- 14 programming keys:
A+ / A-, B+ / B-, C+ / C-, D+ / D-, P+ / P-, S+ / S-, L+ / L-
- two keys (T9, T10) for selection of the operating mode
- 13 keys (T1…T8, T11…T15) for machine functions
- one connector for a light sensor at rear for connection of one or two (with adapter) light sensors
Function of the programming keys in operating mode “manual sewing”
(key T9 is dark key T10 is dark)
- A+/A-/B+/B- adjustment of stitchcount S1 at seam start (vacuum)
- C+/C-/D+/D- adjustment of stitchcount S2 at seam end (vacuum)
Function of the programming keys in operating mode ”programmed sewing”
(key T9 is bright, key T10 is dark)
- A+/A- adjustment of speed nx in program x
- A+/A-/B+/B- adjustment of stitchcount S1 at seam start (chopper)
- C+/C-/D+/D- adjustment of stitchcount S2 at seam end (chopper)
- D+/D- preselection of the program following program x
- P+/P- adjustment of program x (program number x = 01 ... 05)
- S+/S- adjustment of seam section 01 in program x NS = 01 ... 05
- L+/L- adjustment of the cycle counter for stacker activation, if NS = 00
- L+/L- adjustment of stitchcount of the activated NS (01 ... 05)
