Q-41-MSII-2-EN 9.8 02-02-21

9.2 User Programming via the Internal Mini Programming Panel (MPF)

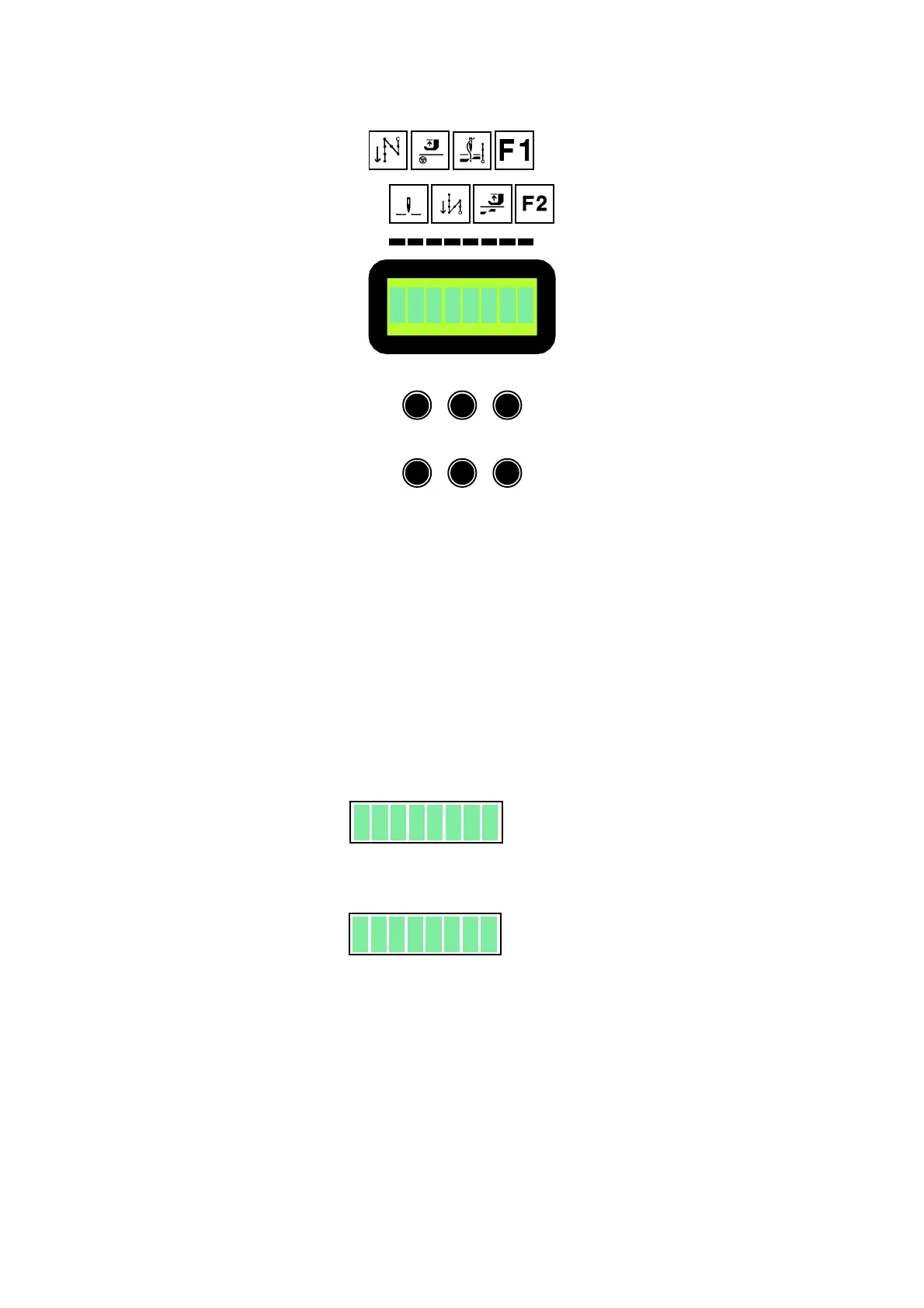

Fig. 9.2

The MPF comprises the following functional elements:

- the six programming keys: M

+ / M

−−

− / C

<<<<

<< / C

>>>>

>> / V

+ / V

−−

−

- the display: eight-digit LCD matrix

Each digit on the display is identified by a symbol for a sewing function.

The MPF is activated only when no external operating panel OC-TOP is connected to the control system.

When the drive system is turned on, message 01 is shown on the display for approx. 1 sec: type of control

system (e.g. Q41MSII).

Indication 01:

Subsequently, Indication 02 is shown on the display: software status (e.g. 7Z_932_5).

Indication 02:

After approx. 1 sec has elapsed, the display will show the indication 1

The following different options can be selected on the display:

Indication 1: rated stitches for seam section S1 at seam beginning

Indication 2: speed and rated stitches for seam section S2 at seam end

Indication 3: sewing functions

Indication 4: control parameters

Indication 5: hardware test (<797> = I, see chapter 10.5)

Indication 6: reset

MC V

3333A

Q1M_S

57Z
