Q-41-MSII-2-EN 7.2 02-02-21

7.2 Control system

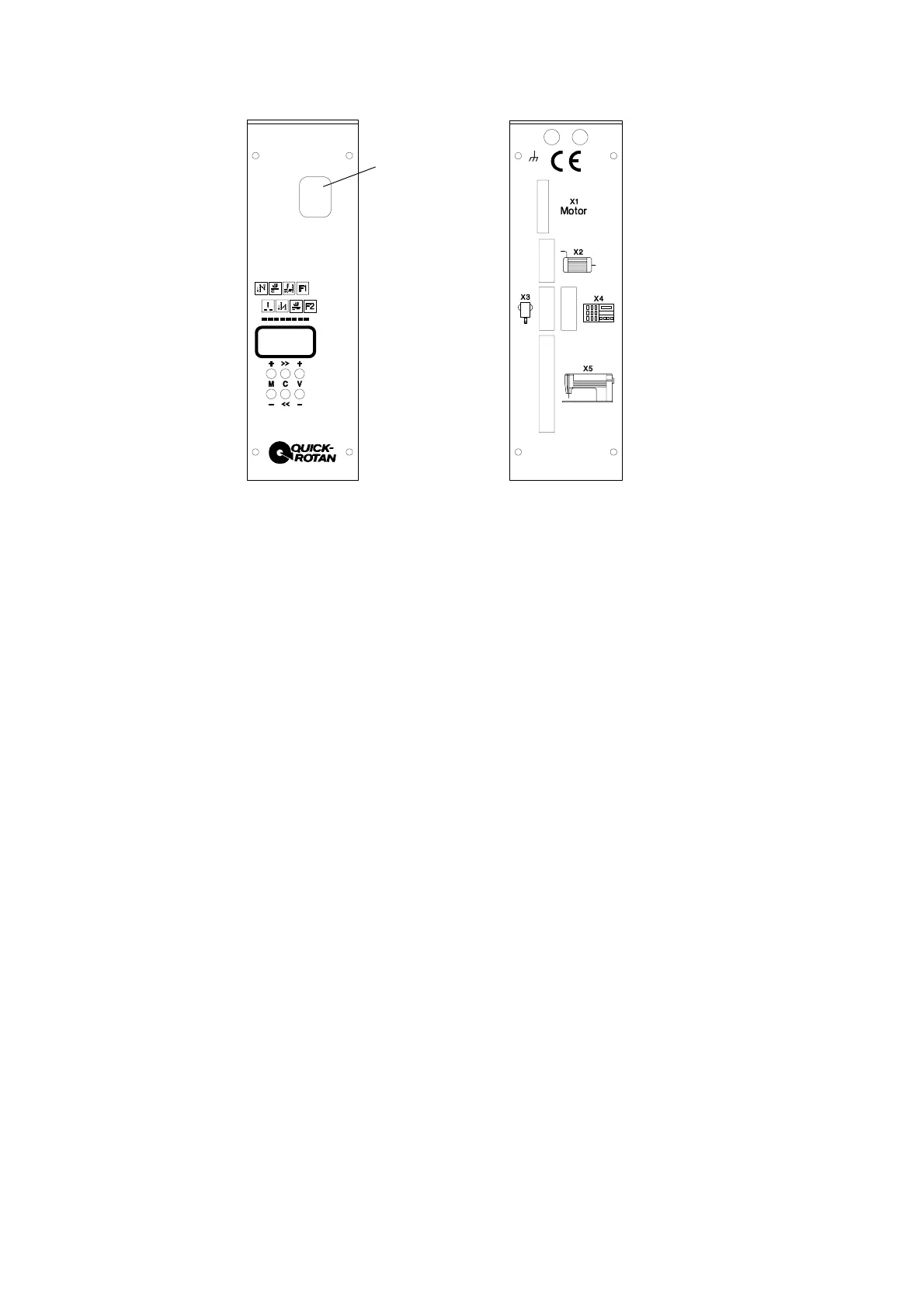

Fig. 7.5 Fig 7.6

The control box is attached to the underside of the machine table by means of the four enclosed screws.

The mains connection is single-phase, using the three-wire cord protruding from the rear and a standard

safety plug.

The control system has peripheral functions

on the front panel (Fig. 7.5):

1 mains switch S1

the Mini control panel (MPF)

contents: an LCD Display with 8 places

and 6 small keys: M+ / M-

C>> / C<<

V+ / V-

on the rear panel (Fig. 7.6):

sockets or connector plugs

X1 quadripole socket for connecting the motor’s stator coil

X2 nine-pole D-sub jack for connecting the motor’s increment encoder

X3 nine-pole D-sub plug for connecting set point adjuster SWG2 (Art. No. 63.012)

X4 nine-pole D-sub plug for connecting the control panel OC-TOP/AP (Art. No. 64.175)

X5 37-pole D-sub jack for connecting the process control system (keys, switches, solenoids,

solenoid valves) on the machine.
