Quick TCD 2022 User Manual

26
TCD 2022 / 2042
EN
INSTALLATION AND USE MANUAL - REV 002A
(1) With power supply voltage less than 9 Vdc the control can reset.
(2) Typical value with control disabled.
(3) Typical value with control enabled and one direction button pressed.
(4) Excluding the back of the control (IP20).

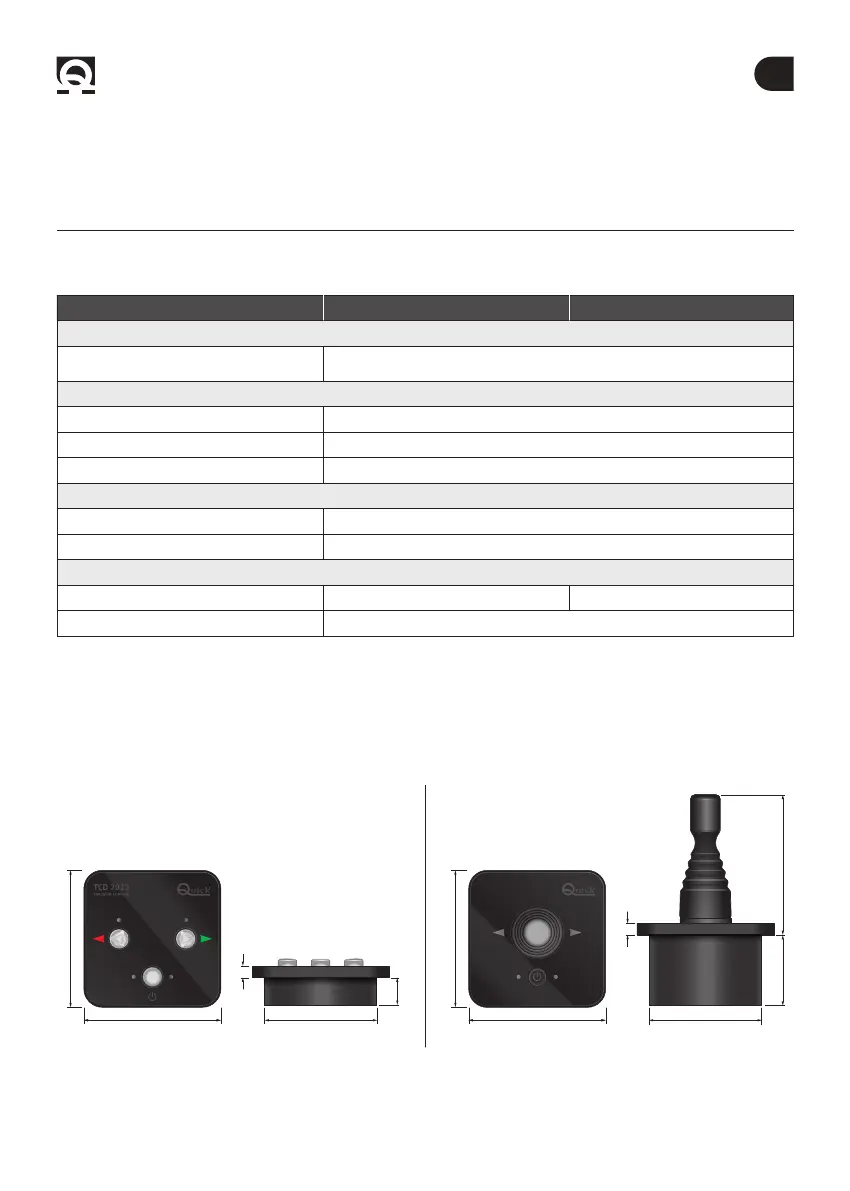

MODELS TCD 2022 TCD 2042
OUTPUT CHARACTERISTICS
Current capacity of right or left thruster
controls
4A max
INPUT CHARACTERISTICS
Supply voltage (1) from 9 to 31 Vdc
Quiescent current (2) 10 mA
Maximum current absorption (3) 55 mA + absorption of contactor coil
AMBIENT CHARACTERISTICS
Operating temperature from -20°C to +70 °C
Protection rating (4) IP66
GENERAL CHARACTERISTICS
Weight 80 g 140 g
EMC class EN 60945 - FCC TITLE 47 Part 15 SUBPART B CLASS B
Dimensions in mm (inches)
15 (
19
/32)
74 (2
29
/31)
74 (2
29
/31)
Ø 61 (2
13
/32)
6,2 (
1
/4)
Ø 61 (2
13
/32)
75 (2
61
/
64
)38 (1
1
/
2
)
TCD 2042
THRUSTER CONTROL
74 (2
29
/31)
74 (2
29
/31)
6,2 (
1
/4)
TCD 2022 TCD 2042
The control needs no special maintenance. To ensure optimum performance of the equipment, check the cables and the
electrical connections once a year.
Clean the control with a soft cloth dampened with water. Do not use chemical or abrasive products to clean the control.
6.0 - MAINTENANCE
7.0 - TECHNICAL DATA

Quick TCD 2022 Specifications

General

Brand	Quick
Model	TCD 2022
Category	Control Unit
Language	English
