ENGLISH
19
Attitude/Attitude Hybrid Rev.1.0
Torque Settings:
Torque in general is 7 Nm, unless otherwise
specified.
The screws used are fitted with threadlock at the factory
and can be adjusted up to 5 times after fitting. After that
they should be replaced or alternatively re-secured with
threadlock to medium tightness..
WARNING!
Secured nuts may only be used once.

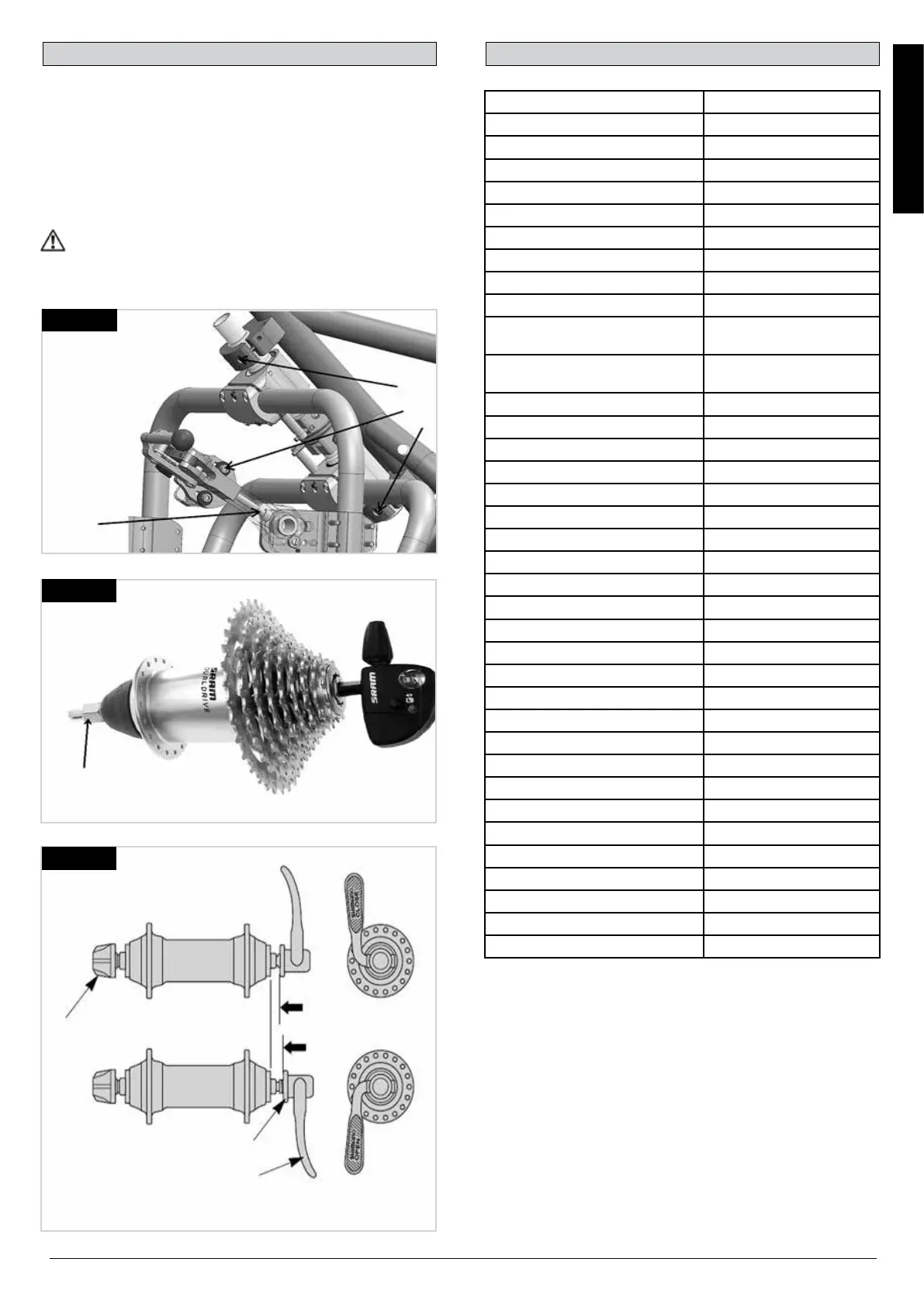

Fig.14.1
20 Nm
10 Nm
General
max user weight 100 kg
Seat width range wheelchair 28-46 cm
Weight (cpl) 21,5kg
Wheelsize 20"
Min Turning radius 270 cm*
Min slope 5° (9%)*
Max. inclination (static) 10°*
Mix. obstacle height 3,5cm*
Max. obstacle height 5cm*
Gearing SRAM X5 10 speed •
or Dual Drive (3x10 speed
Gear switch SRAM trigger /grip shift
switch
Motor (see also motor section 9) Hybrid only
Motor (peak) 250 W (650W)
Torque (full load) 12 Nm (40 Nm)
Range* 120 km
Voltage 36 Volt
Speed 25 km/h
Efficiency 80%
Battery (see also battery section) Hybrid only
Battery type Lithium ion
Battery capacity 14,5 Ah
Battery protection rating IP 54
Rated voltage 36,2 V
End-of-charge voltage 42 V
Total energy 515 Wh
Max discharge current 30 A
Ambient operating temperature -20 °C to 60 °C
Ambient storage temperature +10°C to +30°C
Ambient chargingg temperature 0 °C to 40 °C
Battery weight 3,5 kg
Display (MMI)
Display Monochrome
Display Size (diagonal) 2,4 "
Display resolution 240 x 320 pixel
Protection Rating Display IP 65
Operating temperature -20° to + 50°
* Depending on the wheelchair – add-on bike
combination values can vary e.g. rear wheel extension,
surface conditions, user weight, driving capability, add-
on weight.
Fig.14.2
30 Nm
Fig.14.3
Adjusting Nut
Lever Nut
Quick-release lever
Closed
Open
14.0 Torque 15.0 Technical Data
