9. FX SEND & RECEIVE: Unbalanced connections for adding
mono e󰀨ects pedals or pedal chains to the FX Loop of the PZ-
Pro. These connections are activated using the Boost/FX Loop
Footswitch.
10. PRE EQ OUT: Balanced XLR direct box output to feed a mic-level
signal to the PA or a recording interface. Pre EQ output is not
a󰀨ected by EQ & Filter settings or by FX/Boost functions.
11. 180, LIFT: Polarity reverse & ground lift switches for Pre EQ Out.
12. POST EQ OUT: Balanced XLR direct box output to feed a mic-
level signal to the PA or monitor system. Post EQ output signal
is a󰀨ected by the EQ & Filter settings as well as the FX/Boost
functions.
13. 180, LIFT: Polarity reverse & ground lift switches for Post EQ Out.
14. 15VDC: Connection for the Radial 15VDC/400mA power supply
(included).
15. CABLE CLAMP: Prevents accidental power disconnection by
locking down the AC adapter cable.

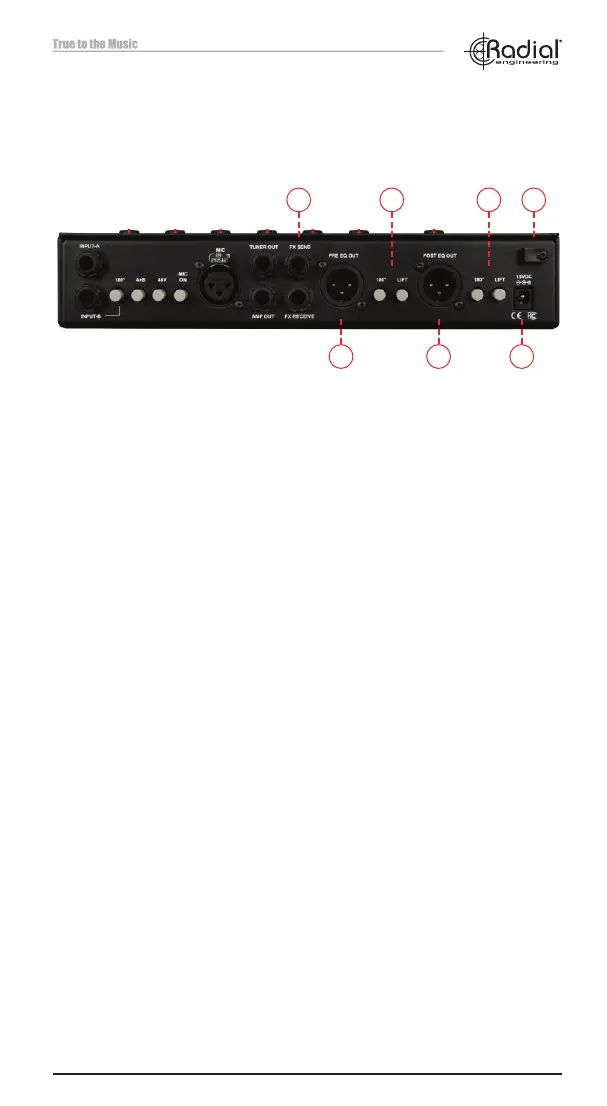

FEATURES - REAR PANEL CONTINUED
10 12 14
9
15
11 13
