1. INPUTS A & B: 1/4" inputs for guitars and instruments.
2. INPUT B 180: Polarity reverse switch for Input B helps to correct
for phase issues when summing both inputs together. This switch
also a󰀨ects Mic Input B.
3. A+B: Sums Input A and Input B together after their respective
EQ & Filter sections. Engaging this switch activates both inputs
simultaneously and disables the Toggle Footswitch.
4. 48V: Engages phantom power on Mic Input B for powering
condenser microphones.
5. MIC ON: Activates the Mic Input for channel B. When this switch
is pressed, the 1/4" instrument input for channel B is deactivated.
6. MIC INPUT B: XLR input for connecting a microphone to channel
B of the PZ-Pro. Compatible with dynamic and condenser mics.
7. TUNER OUT: 1/4" bu󰀨ered output to feed a tuner pedal. This
output will always be active, even when the Mute Footswitch is
engaged, allowing for quiet on-stage tuning anytime.
8. AMP OUT: 1/4" TS instrument-level output for feeding the input of
a stage amplier. Amp Out signals include all EQ & Filter settings,
FX Loop and Boost functions.

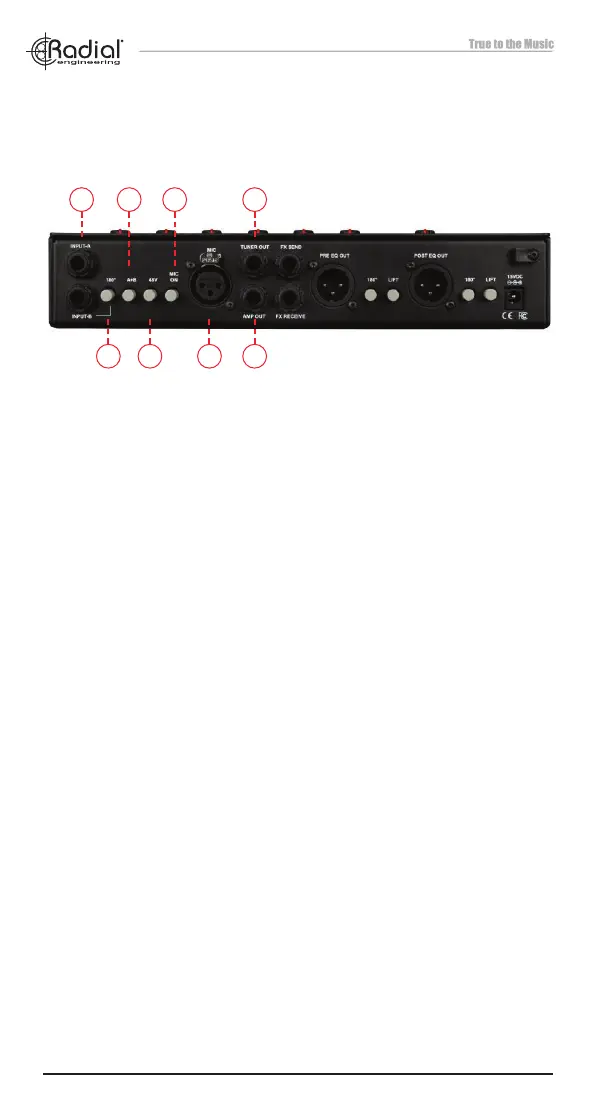

FEATURES - REAR PANEL
2 4 6 8
1 73 5
