2.3 ADJUSTING THE SEAT AND PEDALS
The pedals and seat can be adjusted to suit the driver.

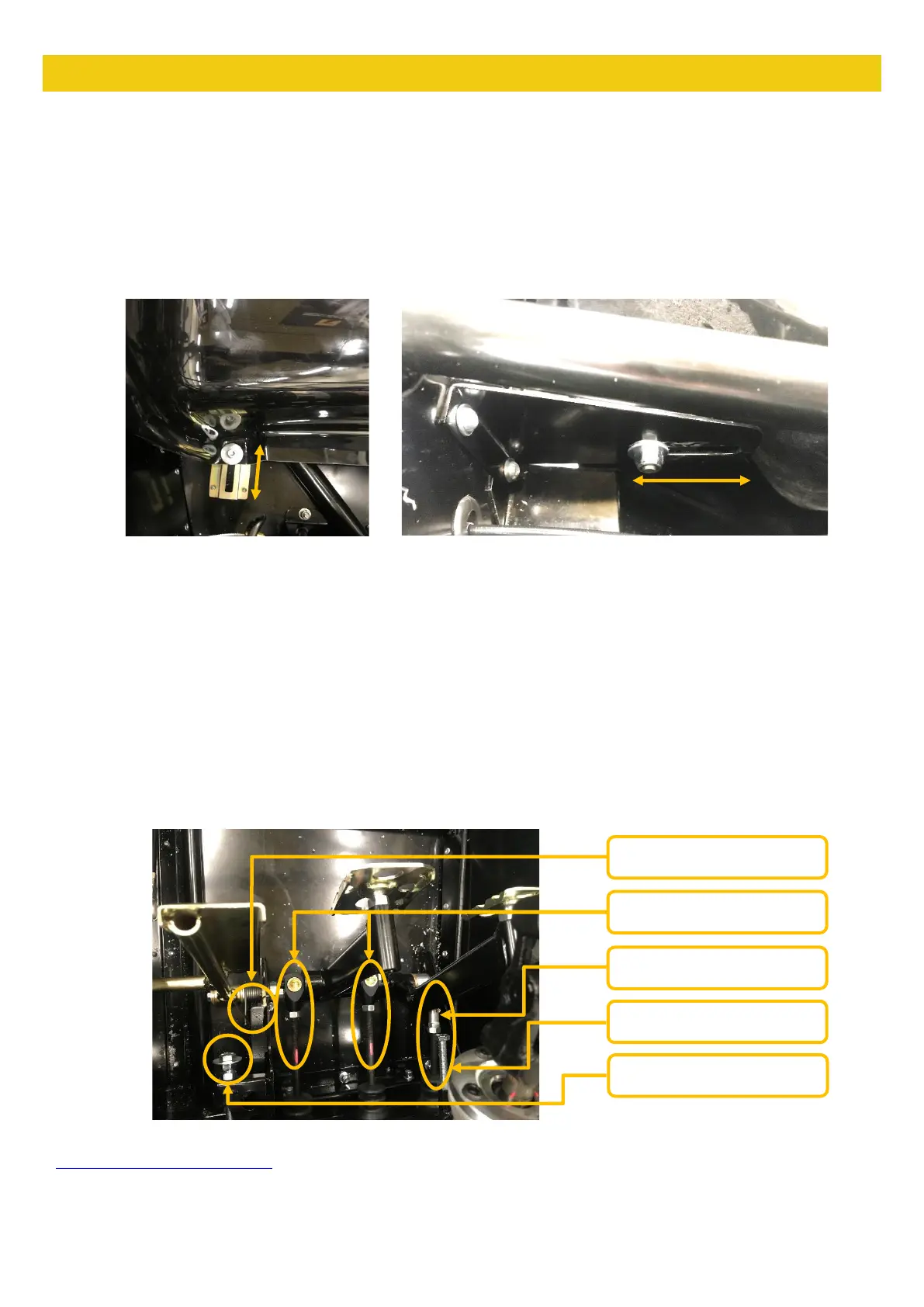

Seat Adjustment:
The seat is fitted on sliding rails which can be adjusted by loosening the 6 bolts on the seat. There are two
M6 nylocs, one either side at the top of the seat between the chassis, two M6 button heads at the base of the
seat and two M6 cap heads at the front lip of the seat. Once these are loose simply pull the seat forward or
back whichever is desired, then tighten all six fixings.
Pedal Adjustm ent:
The pedals can be adjusted by either loosening the locknuts on the pedal pad, or by loosening the locknuts
on the m aster cylinder pushrods, then turning the rods to move the pedal. The pushrods must be moved
evenly as this will affect the brake bias. The clutch pedal stop must be reset if the pedal is moved.
Measure the gap between the pedal and the stop, once the pedal has been adjusted, move the stop until the
same gap is achieved between the pedal and the clutch stop. The throttle pedal can be adjusted by
lengthening or shortening the throttle adjustm ent bolt. The throttle position must be checked after
adjusting, the TPS should sit at 4% when at idle, you must then make sure full throttle can be achieved
100%+ if not the throttle stop must be adjusted. Also check the tension of the throttle cable if any
adjustments are made.
If any further adjustment is required, pedal extension kits are available. Contact our stores department:
