starting value.
(2) Press "Enter" button ,starting value stop flashing,adjustment is completed.
(3) Press "Exit" button for two times,back to the initial interface.

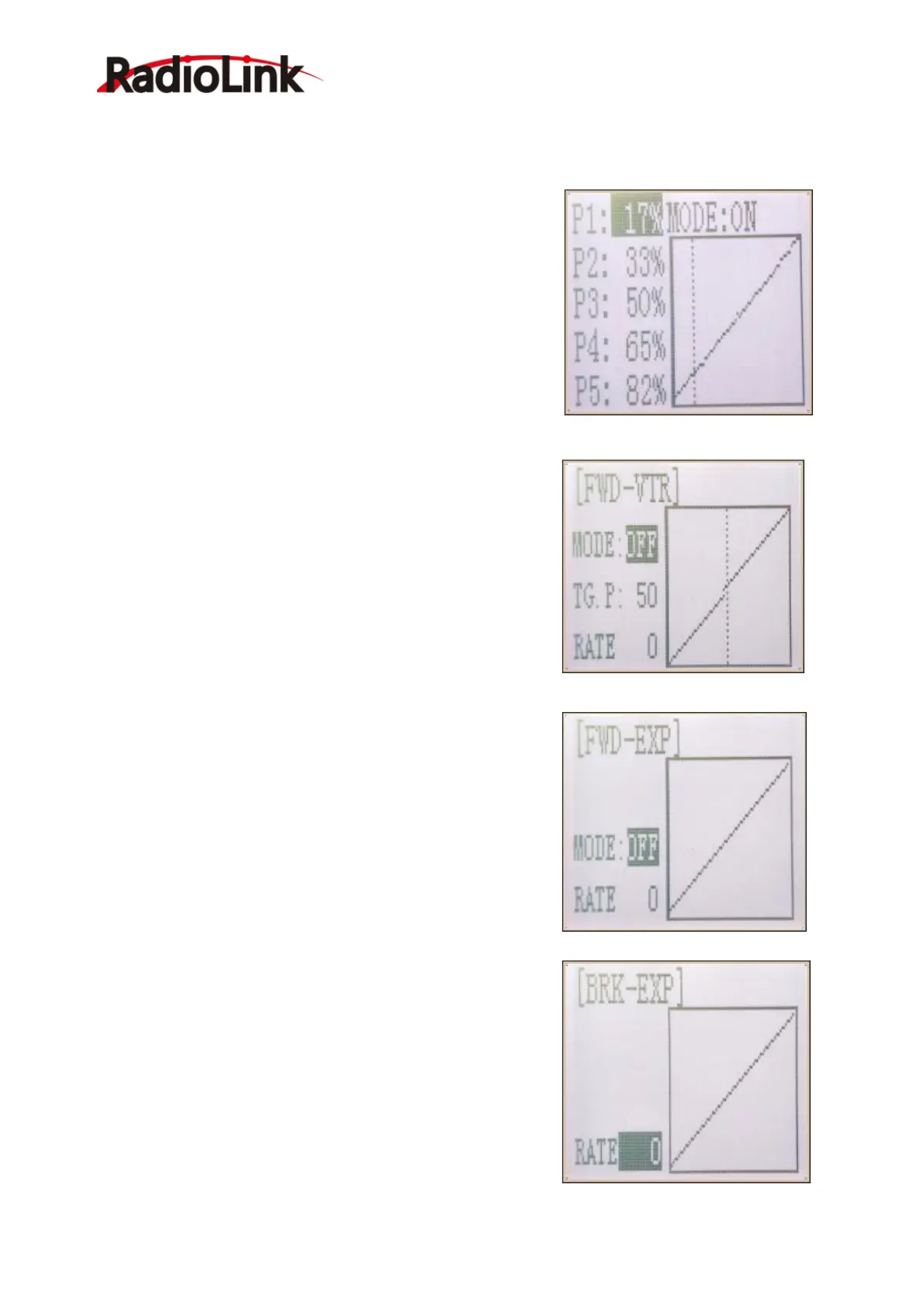

Throttle curve adjustment
Adjustment method for CRV curve
Setup Items
Mode: ON/OFF
RATE: 0%~100%
1. Enter the function menu and use“ Dec(-) ” or “ Inc(+) ”button
to access THEXP function. Select “FWD-CRV” function.
2. Press “Dec(-)” or “Inc(+)” button to select curve points 1~5
for curve point adjustment that you want, from the graph you
will clearly see the changes you have made.
Adjustment method for VTR curve
Adjustment range
TG.P: 20-80
RATE: -100~0~+100
1.Enter the function menu and use “Dec(-)” or“Inc(+)”button
to access THEXP function. Select“FWD-VTR” function.
2.Press “Dec(-)” or “Inc(+)” button to select RATE for forward
side adjustment that you want, when the “MODE” value is “OFF”
the VTR will not work, only the “MODE” value set to “ON” the VTR
function is available. From the graph you will clearly see the changes
you have made on TG.P and RATE.
Adjustment method for EXP curve
Setup items
MODE: EXP turn on or turn off
RATE: EXP rate
Adjustment range
MODEL: OFF/ON
RATE: -100 ~ 0 ~ +100
1. Enter the function menu and use “Dec(-)” or “Inc(+)” button
to access THEXP function, then select the “FWD-EXP” function.
2. Press “Dec(-)” or “Inc(+)” button to select RATE for adjustment,
set the most comfortable value you want. From the graph you will
clearly see the changes you have made on the EXP RATE, also
move the trigger to check the throttle status.
Adjustment method for BRK-EXP curve
Setup Items
RATE: BRK-EXP rate
