RadioLink RC6GS V2 User Manual

RadioLink Electronic Ltd
www.radiolink.com
2
⚫ RF Power: <20dbm
⚫ Frequency: 2.4Ghz ISM Band（2400.0MHz--2483.5MHz）
⚫ Modulation Mode: GFSK
⚫ Channel resolution: 4096, the regular jitter is 0.5us
⚫ Spread Spectrum: FHSS
67 Channels Pseudo Random Frequency Sequence Hopping
⚫ LCD Screen: 128*64 Resolution, LCD Back Light
⚫ Low Voltage Alarm: Yes (can be customized on 2S-4S battery)
⚫ Adaptable Models: Fishing boats, Robots
Vehicles(Crawlers/Tanks/Truck)
⚫ Compatible Receiver: R7FG, R6FG,R6F, R8EF, R8F, R4FGM,R4F
⚫ Battery Tray Dimension: 89*59*18mm (3.5”*2.32”*0.71)
⚫ Model Memory: 10
1.2 Receiver R7FG(Standard Pack)
RC6GS V2, sells with R7FG, 2.4GHz 7 channels receiver, gyro integrated and high voltage servo supported.
R7FG Specification
◼ Size: 35*20*13mm (1.05"*0.6"*0.39")
◼ Weight: 9.5g(0.34oz)
◼ Channel: 7CH
◼ Antenna Length: 210mm(8.27")
◼ Operating Current: 30mA
◼ Operating Voltage: 4.6-10V
1.2.1 Receiver Installation and Binding
Binding
1. Put the transmitter and the receiver close to each other (about 50 centimeters) and power both on.
2. Switch on the transmitter and the led on R7FG will start flashing slowly.
3. There is a black binding button(ID SET) on the side of receiver. Press the button for more than 1 second

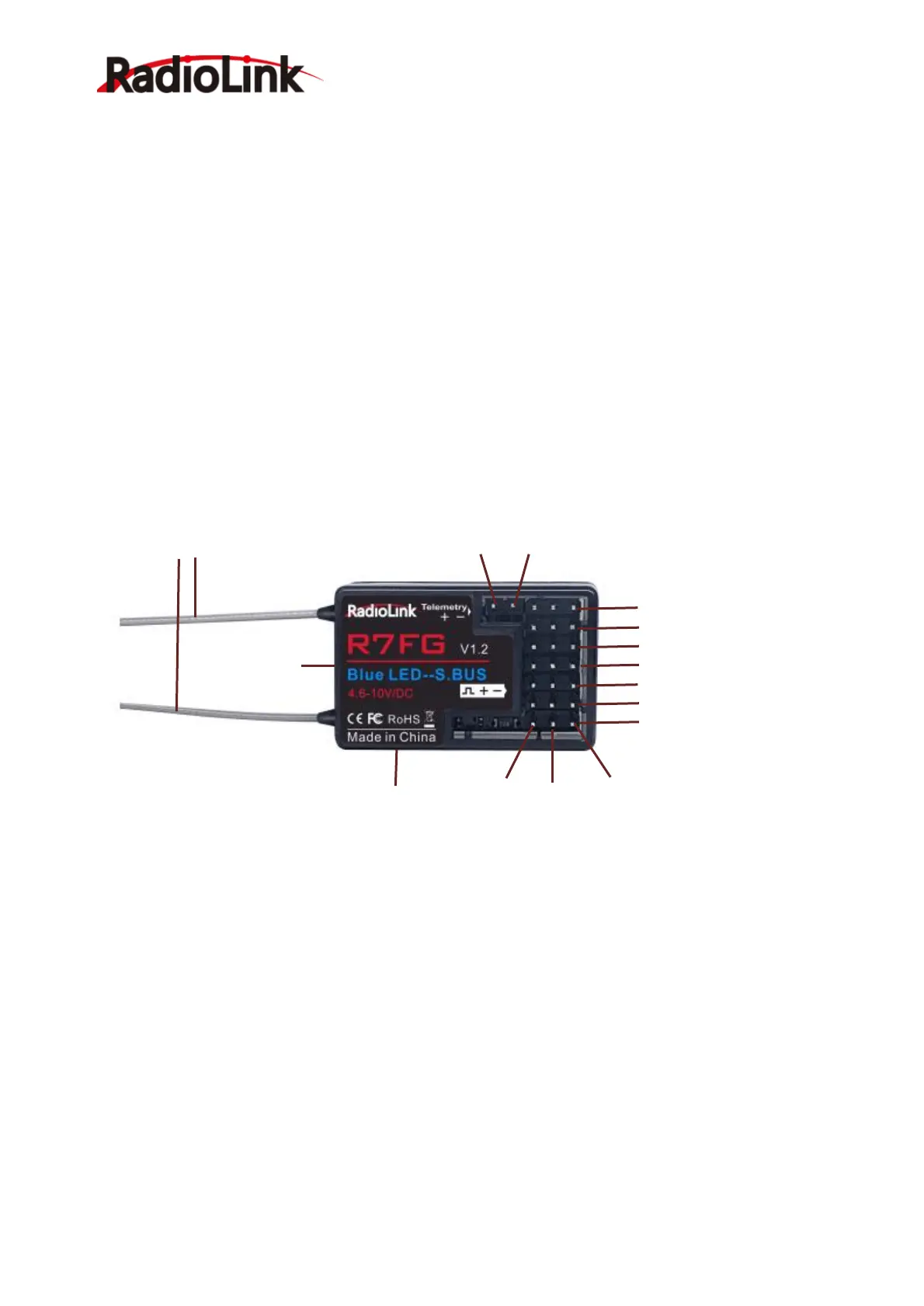

Antenna
VCC GND
Telemetry Port of Model Battery Voltage
Binding Button
(ID SET)
LED Indicator Signal VCC GND
CH1 Steering
CH2 Throttle
CH3 Aux
CH4 Aux
CH5 Aux
CH6 Aux
PPM/SBUS

RadioLink RC6GS V2 Specifications

General

Channels	6
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Failsafe	Yes
Frequency Band	2.4GHz ISM band
Modulation Mode	GFSK
Spreading Spectrum	FHSS
Operating Voltage	4.8-15V
Low Voltage Alert	Yes
Simulator	Yes
Antenna Length	106mm
Weight	346g
Display	LCD
Range	600m
Adjacent Channel Rejection	>38dB
Control Distance	600m
Receiver	R7FG
Screen	LCD
Model Type	Car/Boat
Voltage Range	4.8-15V
Compatible Receivers	R6FG, R7FG
