2. Steering mix Throttle：Tracked vehicles turning left/right
As tracked vehicles turning left/right is controlled by steering, steering leads throttle in the mix control. That is,
Master-Steering, Slave-Throttle. Please refer to the “button operation”and get into below interface to complete
the setup.
* Percentage value varies the turning angle;
”-”means Master and Slave move to different directions at the same time
2.17 Auxiliary Channel "AUX-CH"
The channel 3 and channel 4 servo position can be set from the transmitter. When CH3 is assigned to the 3
rd

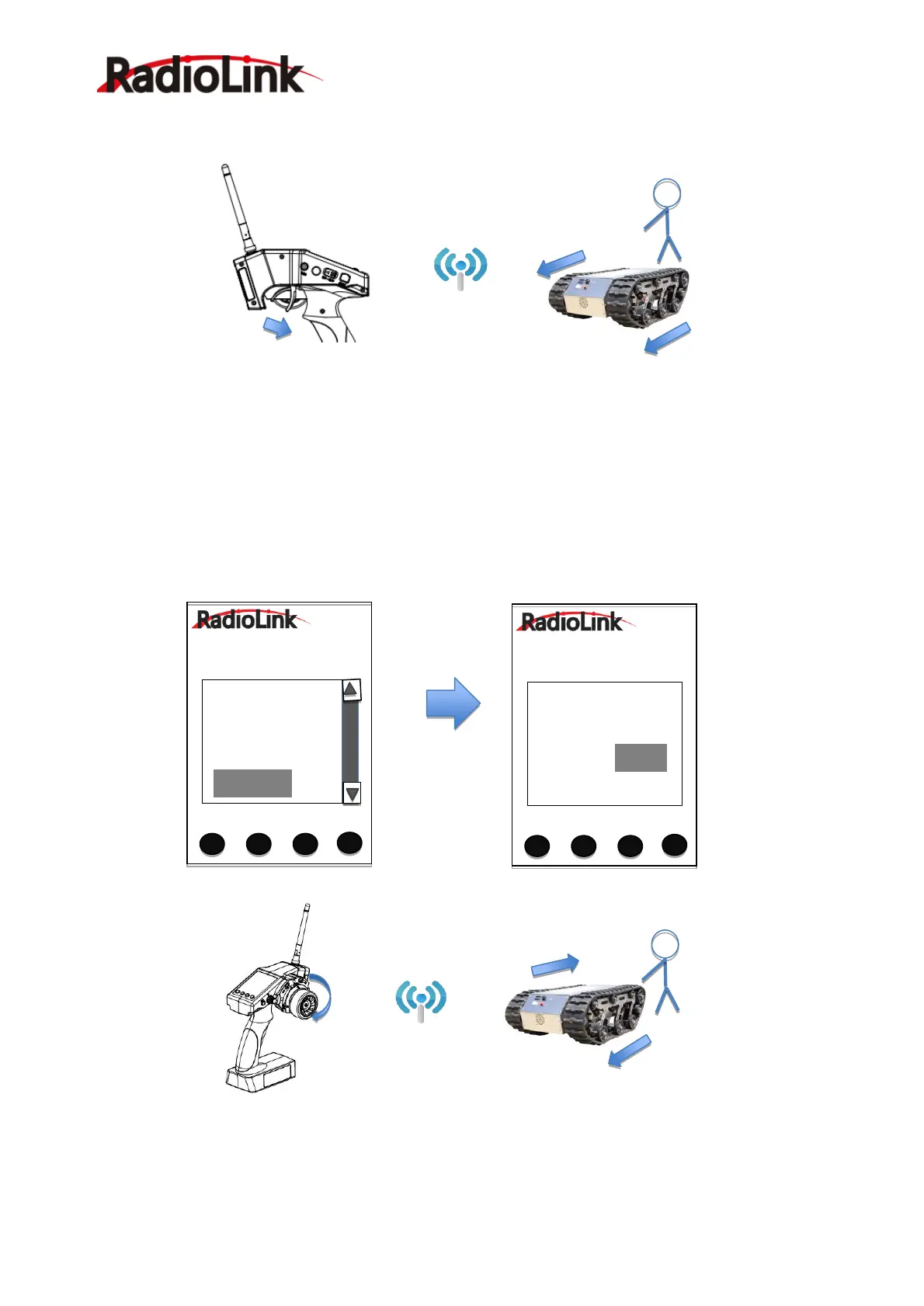

Throttle mix steering setup completed, both tracks moves forward
when pulling the throttle
6 - Channel
Radio Control System
13. D/R
14. ATL
15. PMIX01
16. PMIX02
Enter
Exit
Dec(-)
Inc(+)
6 - Channel
Radio Control System
[PMIX02]
MXMD：ON
LEFT: -100% MST：ST
RIGH: -100% SLV：TH
Enter
Exit
Dec(-)
Inc(+)
Steering mix throttle setup completed, left track moves forward while right backward when
turning the wheel clockwise. The differential realizes the right turning of track vehicle

RadioLink RC6GS V2 Specifications

General

Channels	6
Frequency	2.4GHz
Modulation	FHSS
Telemetry	Yes
Failsafe	Yes
Frequency Band	2.4GHz ISM band
Modulation Mode	GFSK
Spreading Spectrum	FHSS
Operating Voltage	4.8-15V
Low Voltage Alert	Yes
Simulator	Yes
Antenna Length	106mm
Weight	346g
Display	LCD
Range	600m
Adjacent Channel Rejection	>38dB
Control Distance	600m
Receiver	R7FG
Screen	LCD
Model Type	Car/Boat
Voltage Range	4.8-15V
Compatible Receivers	R6FG, R7FG
