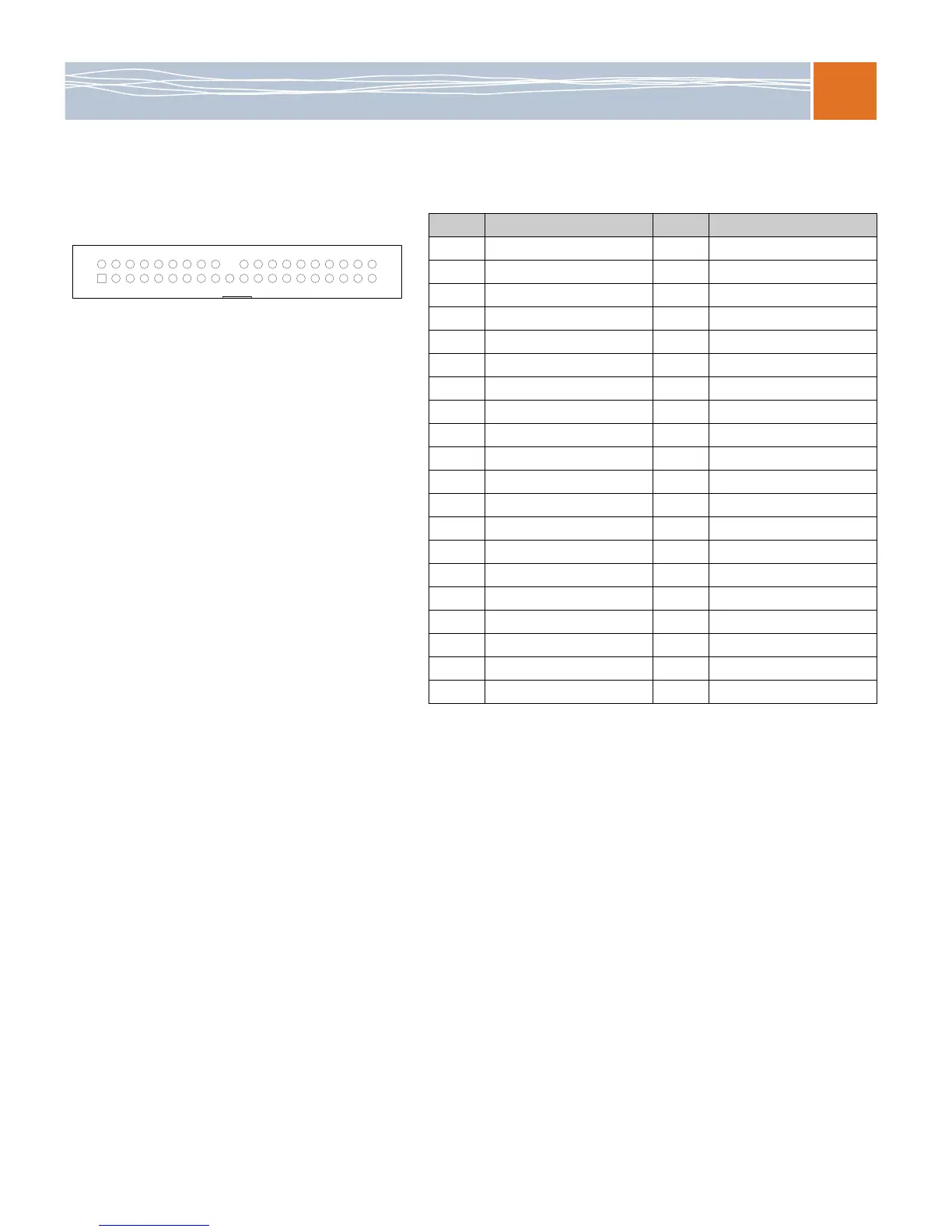

RadiSys PL35Q - IDE Connector

A
Internal device connectors
47
IDE connector
Pin # Signal Pin # Signal
1Reset# 2GND
3DD7 4DD8
5DD6 6DD9
7DD5 8DD10
9 DD4 10 DD11
11 DD3 12 DD12
13 DD2 14 DD13
15 DD1 16 DD14
17 D D0 18 D D15
19 GND 20 Key pin
21 DMARQ 22 GND
23 DIOW# 24 GND
25 DIOR# 26 GND
27 IORDY 28 CSEL
29 DMACK# 30 GND
31 INTRQ 32 Reserved
33 DA1 34 PDIAG#
35 DA0 36 DA2
37 CS0# 38 CS1#
39 DASP# 40 GND
