RadiSys PL35Q - VGA Connector

A
External Device Connectors
57

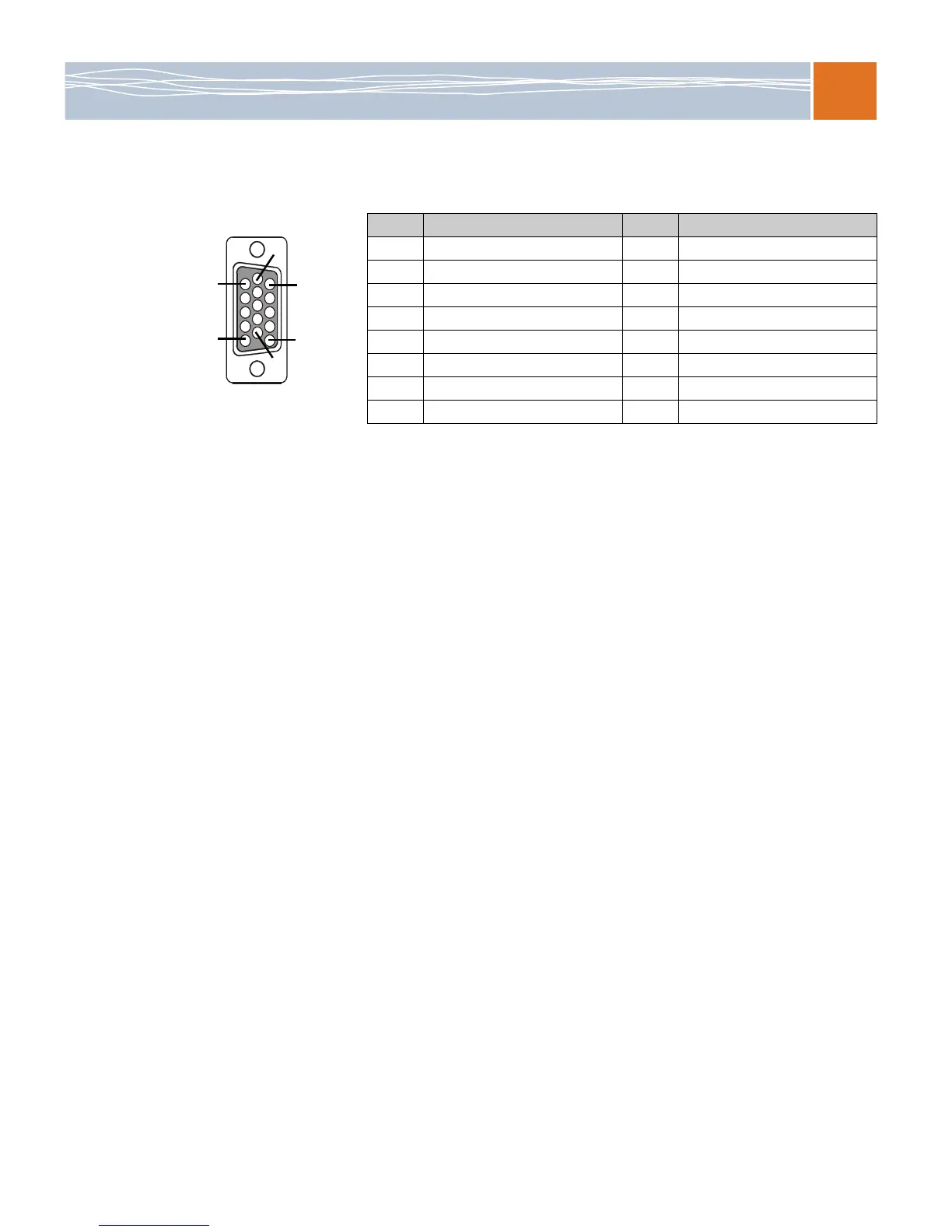

VGA connector
1
5
11
15
10
6
Pin # Signal Pin # Signal
1RED 2GREEN
3BLUE 4ID2
5GND 6RED GND
7GREEN GND 8BLUE GND
9 +5V (optional) 10 SYNC GND
11 ID0 12 ID1 or SDA
13 HSYNC 14 VSYNC
15 ID3 or SCLK 16
