RadiSys PL35Q - SATA Header; Smbus Header; UART Port (Internal); USB Header (Internal)

A

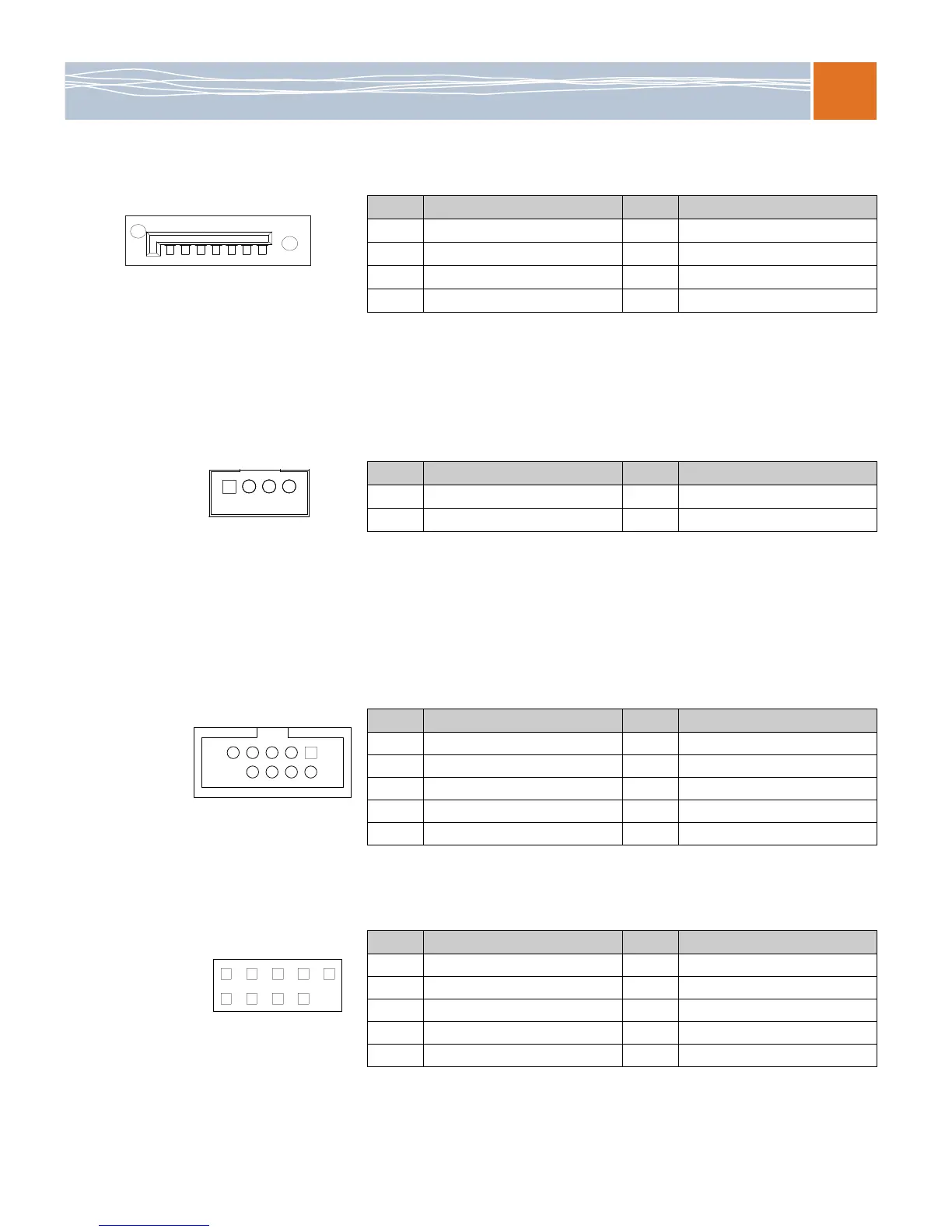

Internal device connectors
55
SATA header
SMBus header
UART port (internal)
USB header (internal)
Pin # Signal Pin # Signal
1GND 2SATA_TXP
3SATA_TXN 4GND
5SATA_RXN 6SATA_RXP
7GND 8{Omitted}
17
Pin # Signal Pin # Signal
1
+3.3V_STANDBY
2
SMB_DATA
3
SMB_CLK
4
GND
41
Pin # Signal Pin # Signal
1DCD 2DSR
3RXD 4RTS
5 TXD 6 CTS
7DTR 8RI
9GND 10NC
2
9
1
Pin # Signal Pin # Signal
1 USB +5V Power 2 USB +5V Power
3USB1- 4USB2-
5USB1+ 6USB2+
7GND 8GND
9 {Omitted pin} 10 GND
210
1
