12. COMMUNICATION
Communication menu enables configuration of port settings. The settings are accessed upon
pressing
button.
Communication with peripheral devices is established via the following ports:
• COM 1 (RS232),
• COM 2 (RS232),
• USB type A
• USB type B
• WIFI,
Parameters of USB ports are not configurable. The port type B is designed to connect a printer or
a computer, and the port type A is designed to connect a computer keyboard, a bar code reader or
the flash drive.

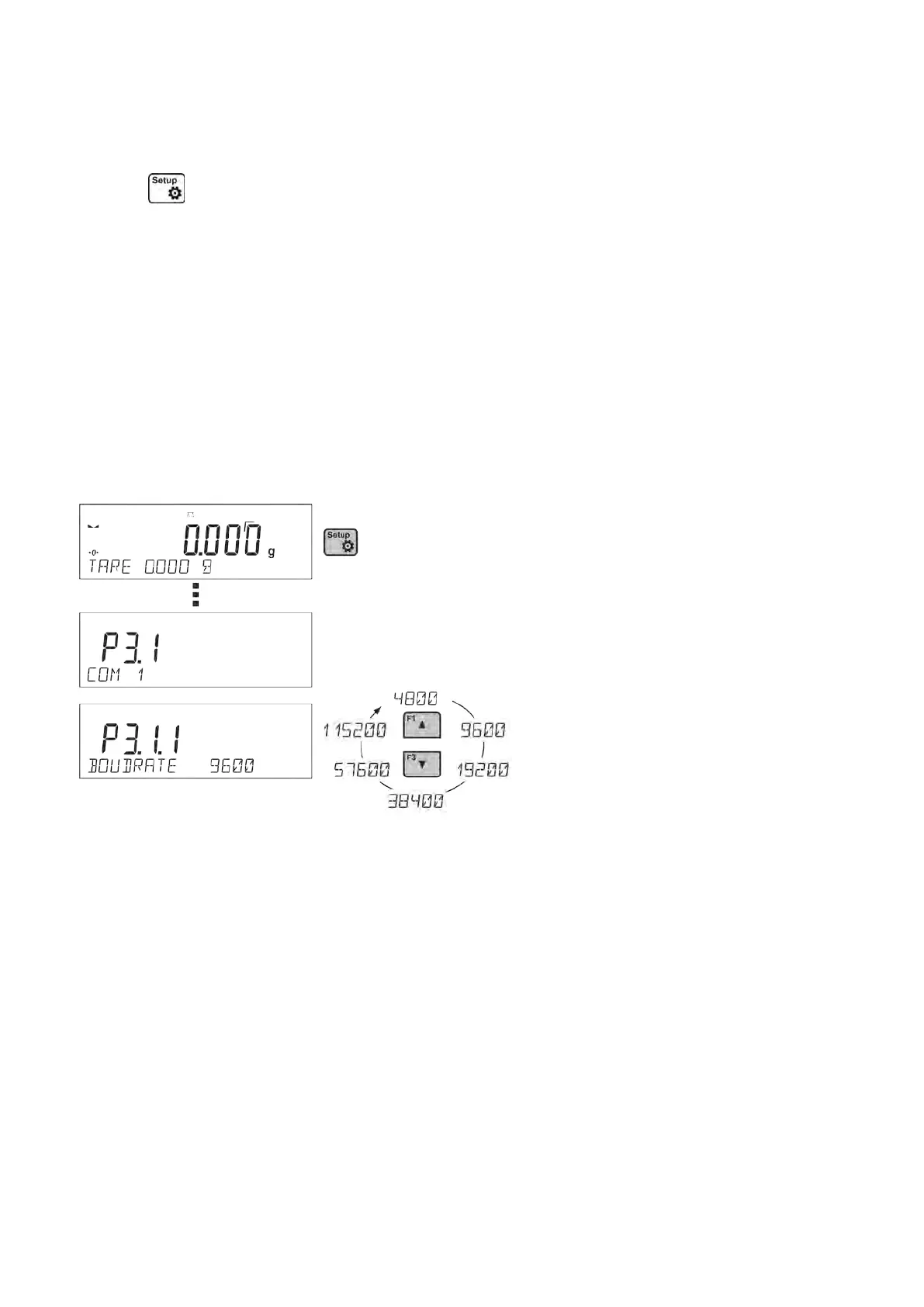

12.1. RS 232 PORTS SETTINGS (COM)
Procedure:
• Select communication port <COM 1> or <COM 2>,
• Set respective values
The RS 232 ports enable the following setting of transmission parameters:
• Baud rate – 2400, 4800, 9600, 19200, 38400, 57600, 115200 bit/s
• Parity – NONE, ODD, EVEN
12.2. WIFI PORT SETTINGS
CAUTION!
• The transmission parameters must be matched to the customer’s local network.
• To ensure proper communication with a computer via Wi-Fi port, set the computer port parameter on
your balance to <WIFI>: P4.1.1 <DEVICES/COMPUTER/PORT/WIFI>.
Parameters for Wi-Fi connection:
P3.3.1 – STATUS
P3.3.2 – WIFI
P3.3.3 – CHOOSE NETWORK
P3.3.4 – NETWORK SETTING
P3.3.3.1 – DHCP
P3.3.3.2 – NAME (the name of the network that has been selected)
P3.3.3.3 – PASSWORD (password – ‘stars’ are displayed)
