Radwin 1000 User Manual

Mounting the IDU-C Chapter 3
RADWIN 1000/2000/5000 User ManualVersion 2.5.30p3 3-10

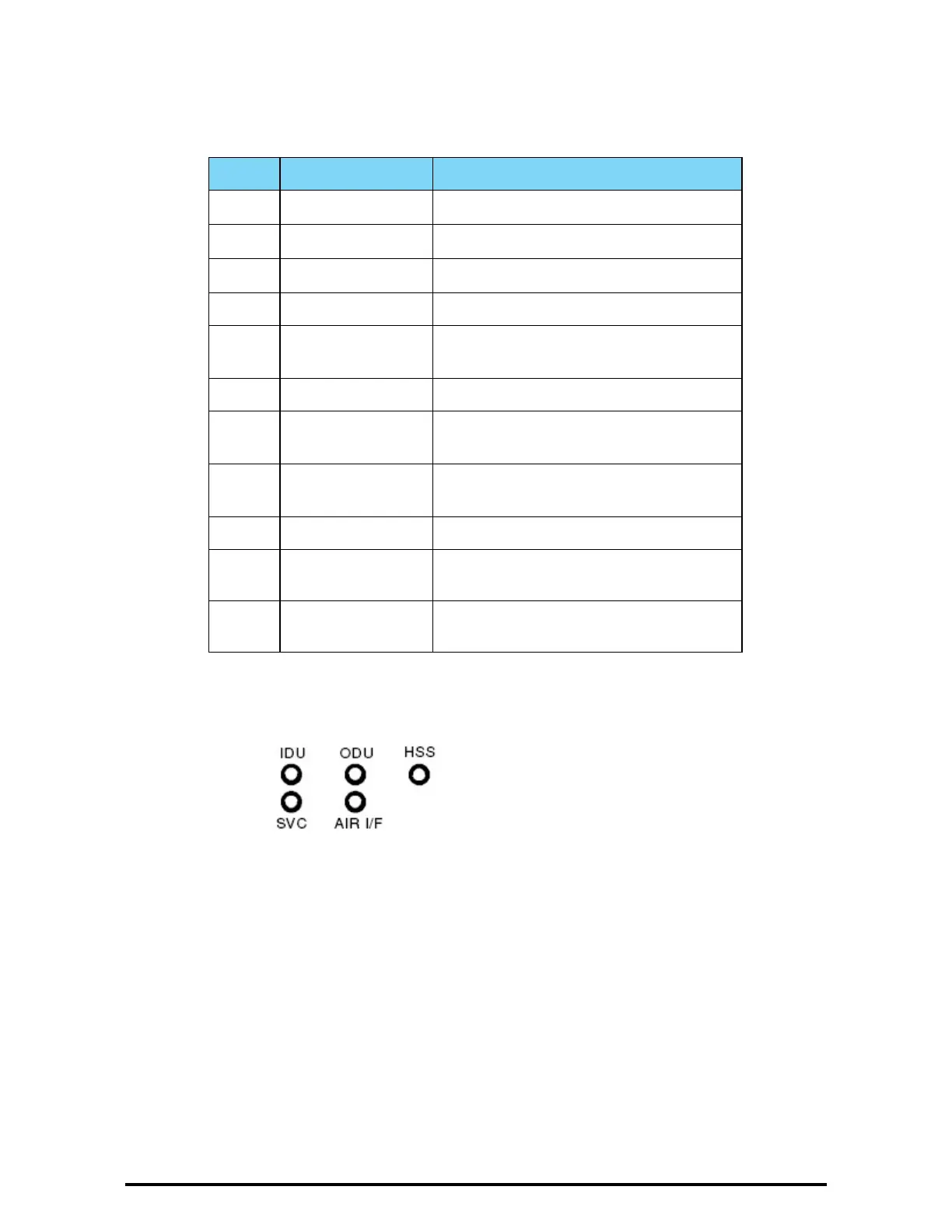

Further description of the keyed items in figure 3-8 is shown in table 3-1
below:
The Indicator LEDs (Item A in table 3-1 above) are shown in more detail in
figure 3-10 below:
Figure 3-10: IDU-C LEDs
Table 3-1: Components of an IDU-C front panel
Key Label Remarks
A Indicator LEDs
See figure 3-10.
B ODU Port
RJ-45 connector, see table B-1.
C 2 LAN Ports
Ethernet, RJ-45 connector, see table B-2
D SFP Port The IDU-C is SFP ready.
E Alarm Ports Standard DB25 female connector, see
table B-3.
F Label indent Place for adhesive identification labels
G Primary 3 pin Power
Connector
Standard 3 pins in line power connector,
see table B-4.
H Secondary 3 pin
Power Connector
Standard 3 pins in line power connector,
see table B-4.
I Grounding Lug Use the lug supplied
J Rack mounting
holes
K Detachable Rack
mounting brackets
