Connect Field Valve Wires

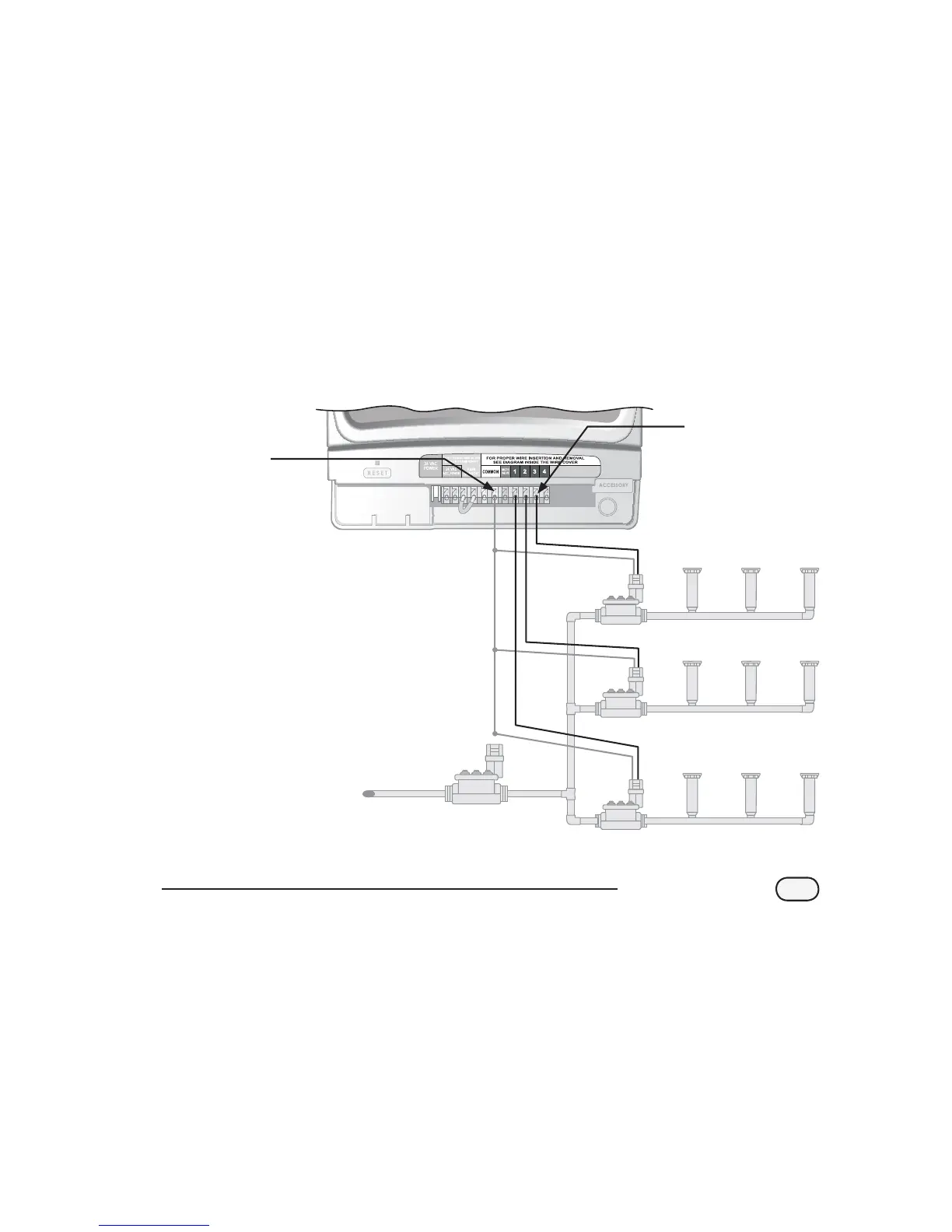

Connect the valve wiring for every zone to the STP Plus controller.
Connect the valve power
wire from each zone to the
corresponding zone number on
the terminal block.
Every zone valve should be
connected to one common
wire. Connect this common
wire to one of the COMMON
terminals.
Zone 3
Zone 2
Zone 1
15
STP Plus Controller
