Connect Rain Sensor

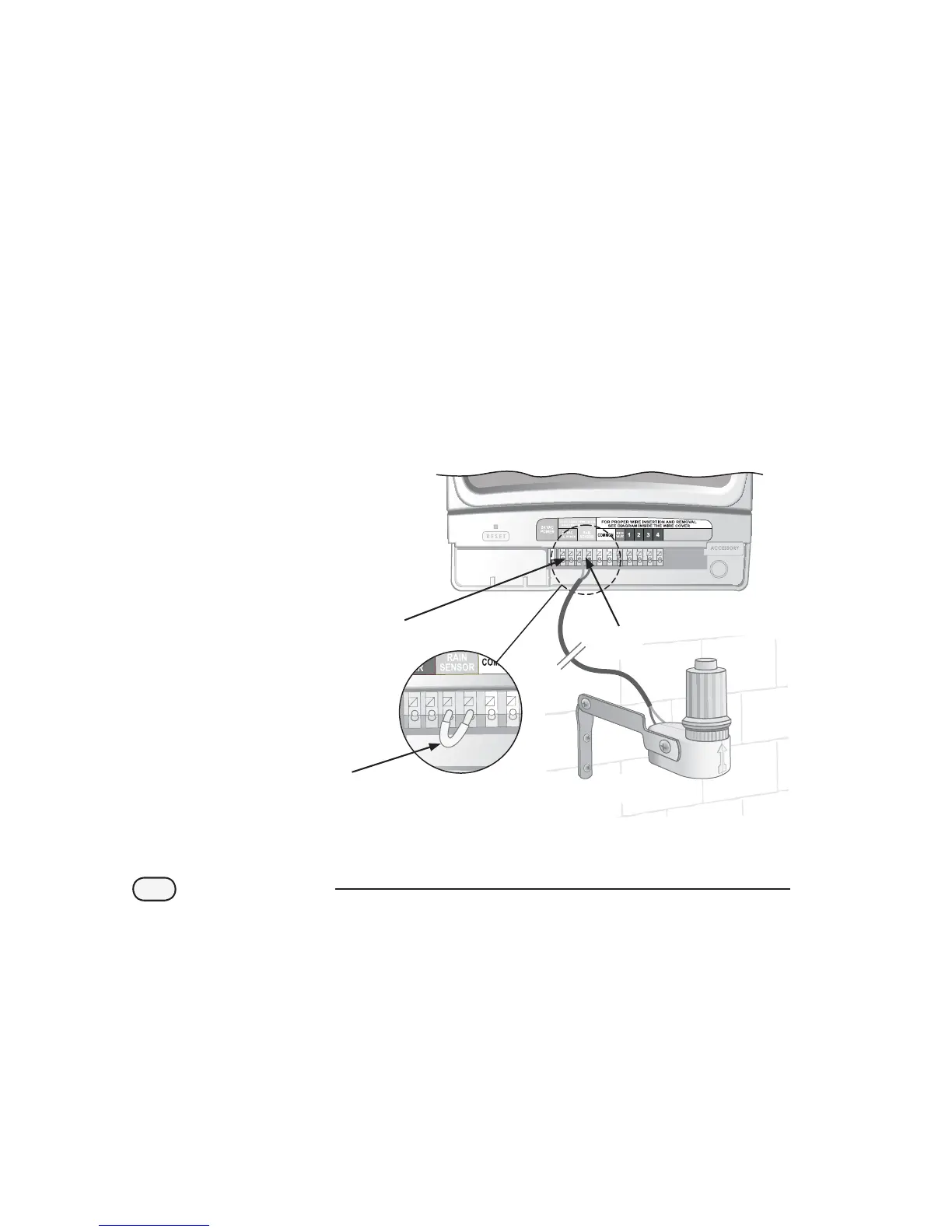

Connect an optional Rain Sensor to the STP Plus Controller.



Remove the jumper wire from the
Rain Sensor terminals.

Connect both Rain Sensor delay
wires to the terminals marked
RAIN SENSOR.

NOTE: The Rain Bird WR-2 and
SMRT-Y models also connect to the
24V power connection.
24 VAC
ACC. POWER
