WPX Battery-Operated Controller
5
Special Features
Delay Watering
Delay automatic irrigation for up to 9 days.
 Press the MODE button until the AUTO RUN screen is displayed.
(Unit must NOT be watering.)
 Press and hold
+
for 3 seconds, then press
+
or
–
to select the
number of DAYS to delay irrigation, up to 9 days.
 To cancel, press
–
until DAYS is set to 0. (Controller will revert to
AUTO RUN.)
SYMBOL and DAYS remaining are displayed while Rain Delay is
in eect.
Contractor Default Save
Save irrigation schedules for future retrieval.
 Press the button until the OFF screen is displayed.
 Press and release both and
+
buttons at the same time.
 The “OFF” symbol will ash briey to conrm schedules are saved.
Contractor Default Restore
Restore previously saved irrigation schedules.
 Press the
button until the OFF screen is displayed.
 Press and release both
+
and buttons at the same time.
 The “OFF” symbol will ash briey to conrm schedules are re-
stored.
Factory Default Restore
Restore the controller’s factory default settings.

CAUTION: All programmed irrigation schedules currently stored
in memory will be lost. However, Contractor Default settings re-
main stored in separate memory and are not aected by Factory
Default Restore, and can be recalled after restoring Factory De-
faults.
 Press the MODE button until the Seasonal Adjust screen is dis-
played.
 Press and release both
and buttons at the same time.
Rain Sensor Bypass
Set sensor to Active or Bypass for all zones.
 Press the MODE button until the AUTO RUN screen is displayed.
 Press and release both
–
and buttons at the same time to
toggle between OBEY and IGNORE.
SYMBOL is displayed when IGNORE is selected.
Set sensor to Active or Bypass for any individual zone.
 Press the MODE button until the Set Irrigation Schedule screen is
displayed.
 Press
+
or
–
to select the desired zone.
 Press and release both
–
and buttons at the same time to
toggle between OBEY and IGNORE.
SYMBOL is displayed when IGNORE is selected.Installation
Installation
Valve Wiring
Wires may be extended up to 100 feet (30 meters) (18 AWG / 0.75
mm² minimum wire size) from the controller. All wire connections
should be made using appropriate water-proof splice kits (not pro-
vided).
 Attach the black wires from each solenoid to the black (common)
wire(s) on the WPX.
 Attach one red wire from each solenoid to the appropriate zone
wire on the WPX.
 Connect an optional Master Valve.

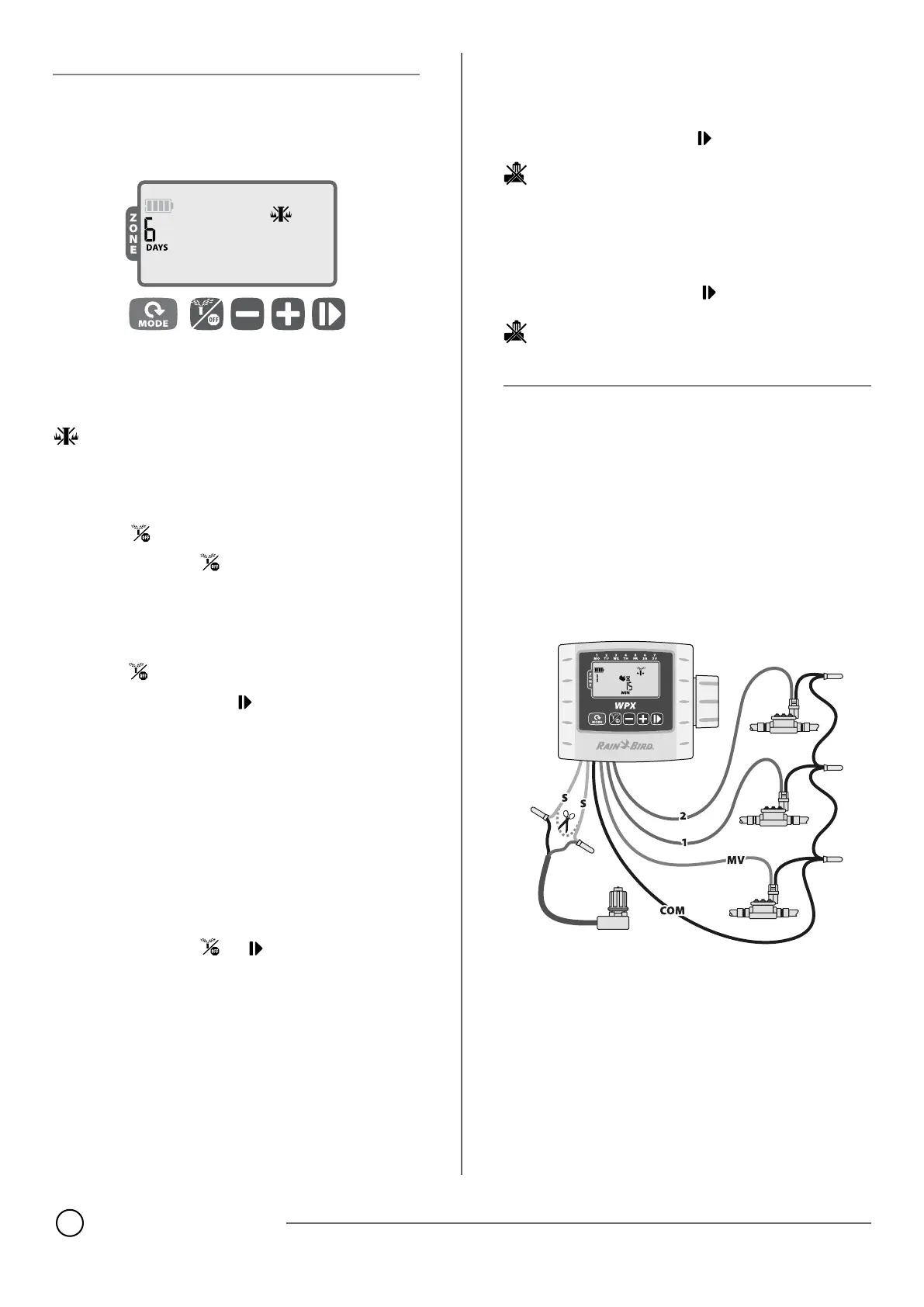

VALVE WIRING
