RAM DBS II - Setup and Configuration; 5.0 Set-Up Instructions; 5.1 Inspection; 5.2 Setup Switches

RAM DBS II
Refrigeration Solid State Starter

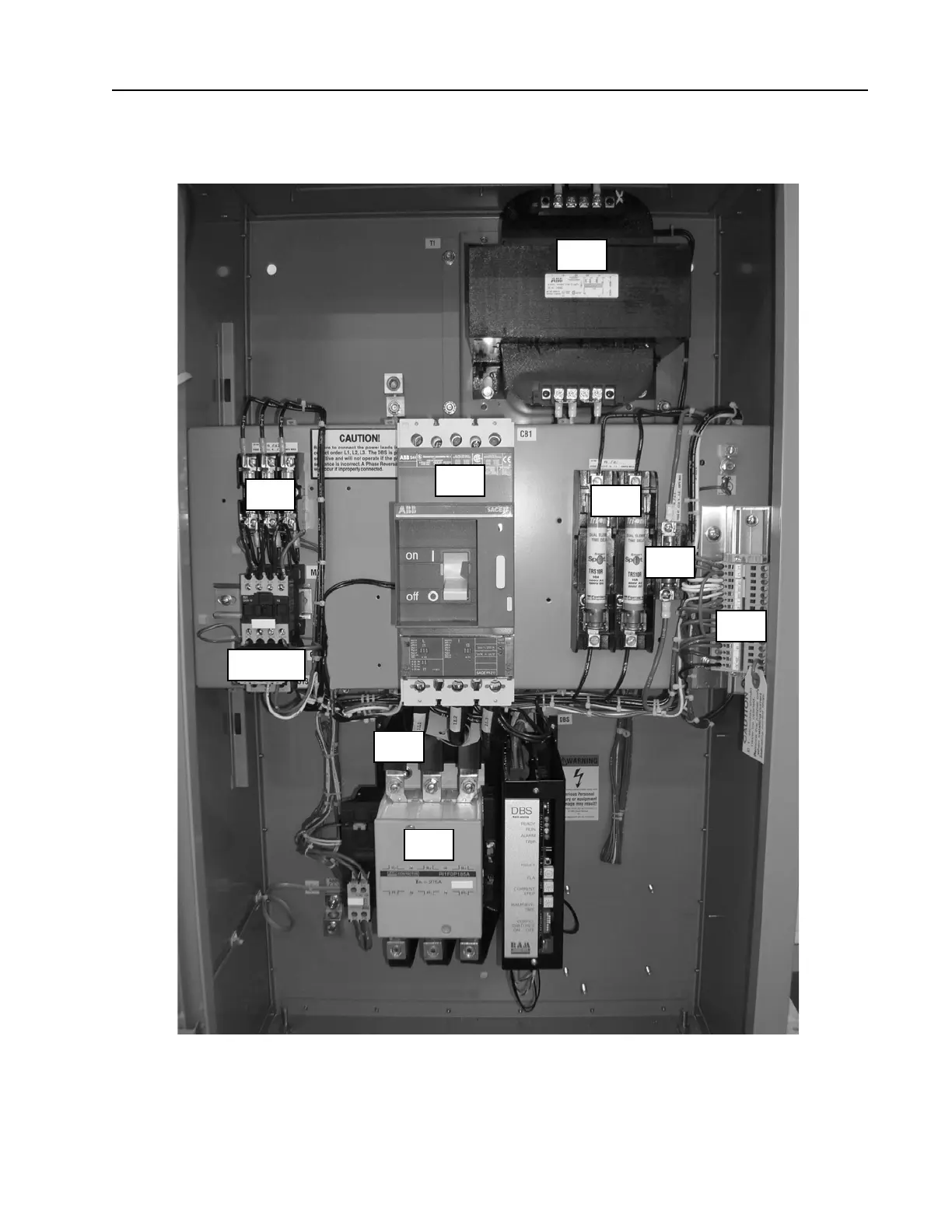

Panel Layout
CB1
T1
FU1
FU2
TB1
FU3
CT7
DBS
M5/OL5
T1: Control Power Transformer
CB1: Circuit Breaker
FU1: Control Power Transformer Primary Fuses
FU2: Control Power Transformer Secondary Fuse
FU3: Oil Pump Starter Fuses
TB1: Terminal Strip
CT7: Current Transformer
DBS: Solid State Starter Chassis
M5/OL5: Oil Pump Starter
