RAM DBS II
Refrigeration Solid State Starter
35

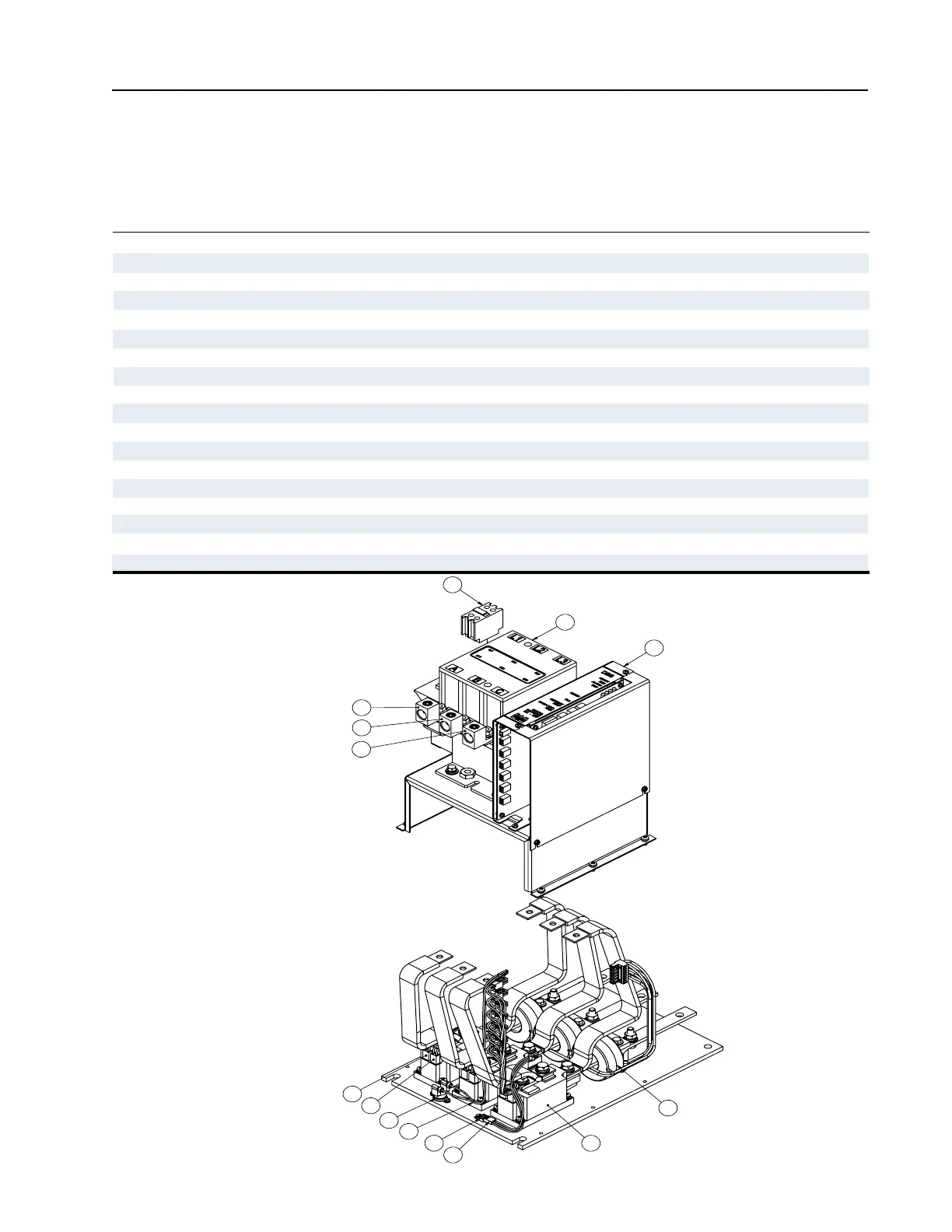

12.0 Replacement Parts
DBS Chassis Sizes B1, B2, B3, C1, C2, C3
with RAM Contactor
11
1
8
2
13
3
4
9
5
10
6
12
14
7
209036 A
Item Replacement Parts B1 B2 B3 C1 C2 C3
1 Circuit Board Set RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF
2 Bypass Contactor RI1-F115A-120 RI1-F150A-120 RI1-F185A-120 RI1-F150A-120 RI1-F185A-120 RI1-F265A-120
3 Aux Contact RI1D-N11 RI1D-N11 RI1D-N11 RI1D-N11 RI1D-N11 RI1D-N11
4 Load Lug (Left) TL-0243 TL-0244 TL-0244 TL-0255 TL-0255 TL-0258
5 Load Lug (Center) TL-0243 TL-0244 TL-0244 TL-0253 TL-0253 TL-0256
6 Load Lug (Right) TL-0243 TL-0244 TL-0244 TL-0254 TL-0254 TL-0257
7 Current Transformer XF-0196 XF-0198 XF-0198 XF-0199 XF-0302 XF-0303
8 SCR Module (Eupec) CR-0096 CR-0096 CR-0096 CR-0097 CR-0097 CR-0097
8a SCR Module (Jinglai) CR-0140 CR-0140 CR-0140 CR-0141 CR-0141 CR-0141
9 Temp Sensor Harness HA-0877 HA-0877 HA-0877 HA-0877 HA-0877 HA-0877
10 Temp Sensor IC-0036 IC-0036 IC-0036 IC-0036 IC-0036 IC-0036
11 Thermostat Harness HA-0879 HA-0879 HA-0879 HA-0879 HA-0879 HA-0879
12 Thermostat SW-0345 SW-0345 SW-0345 SW-0345 SW-0345 SW-0345
13 Gate Leads (Eupec-Right) HA-0872 HA-0872 HA-0872 HA-0881 HA-0881 HA-0881
13a Gate Leads (Jinglai-Right) HA-400663-01 HA-400663-01 HA-400663-01 HA-400663-02 HA-400663-02 HA-400663-02
14 Gate Leads (Eupec-Left) HA-0873 HA-0873 HA-0873 HA-0882 HA-0882 HA-0882
14a Gate Leads (Jinglai-Left) HA-400664-01 HA-400664-01 HA-400664-01 HA-400664-02 HA-400664-02 HA-400664-02
