RAM DBS II
Refrigeration Solid State Starter
36
12.0 Replacement Parts (continued)

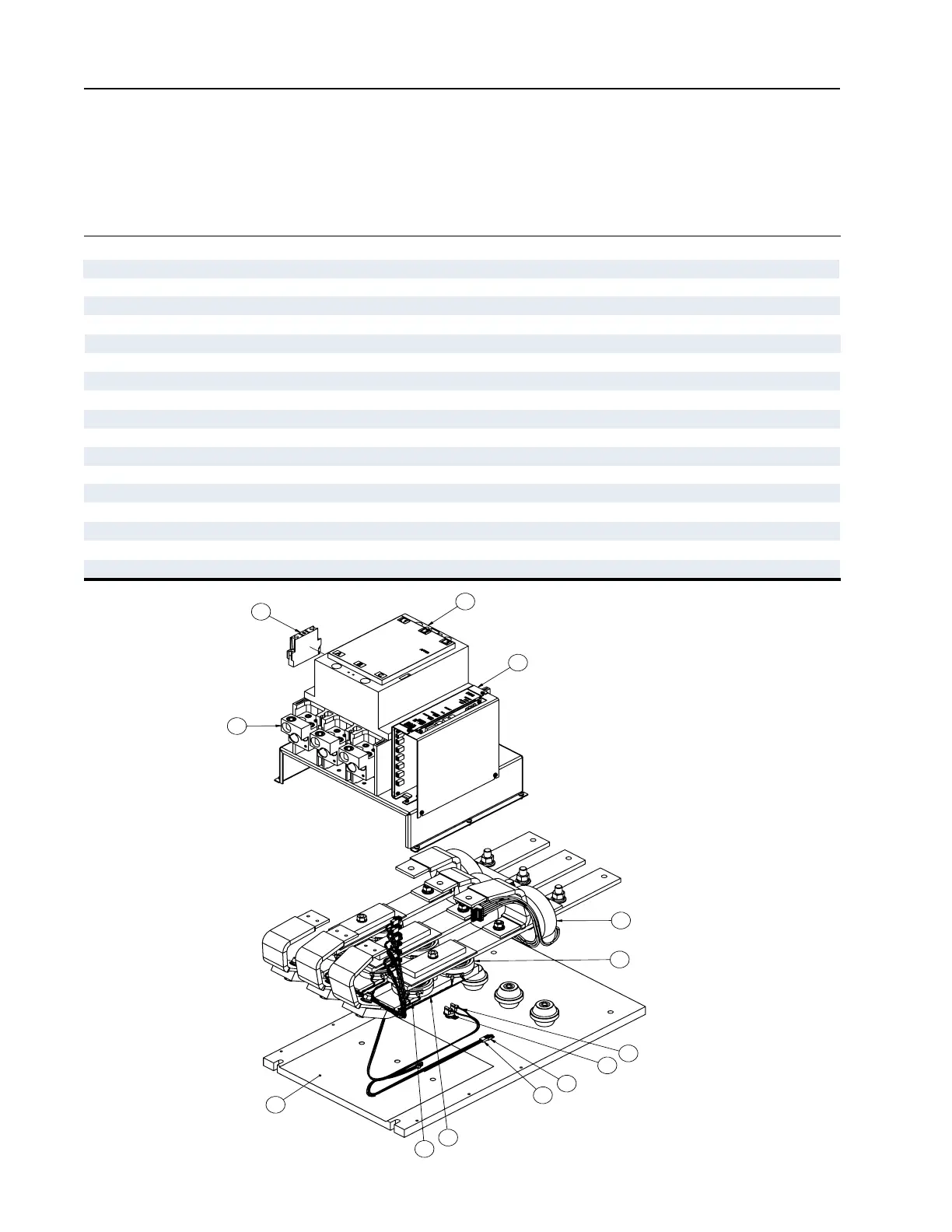

DBS Chassis Sizes D1, D2, D3, E1, E2, E3
with ABB Contactor
7
1
2
3
4
5
6
9
10
12
11
13
8
209037 A
Item Replacement Parts D1-1 D1 or D2 D3 E1 E2 E3
1 Circuit Board Set RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF RAM-400339-AF
2 Bypass Contactor CT-0794 CT-0795 CT-0796 CT-0797 CT-0798 CT-0798
3 Aux Contact CT-0895 CT-0895 CT-0895 CT-0895 CT-0895 CT-0895
4 Load Lug Kit (3) TL-0234 TL-0235 TL-0235 TL-0236 TL-0236 TL-0236
5 Current Transformer XF-0210 XF-0210 XF-0202 XF-0203 XF-0203 XF-0203
6 SCR (Eupec) CR-0109 CR-0109 CR-0110 CR-0110 CR-0110 CR-0132
6a SCR (Jinglai) CR-0142 CR-0143 CR-0143 CR-0143 CR-0144 CR-0144
7 Thermostat Harness HA-0880 HA-0880 HA-0880 HA-0880 HA-0880 HA-0880
8 Thermostat SW-0345 SW-0345 SW-0345 SW-0345 SW-0345 SW-0345
9 Temp Sensor IC-0036 IC-0036 IC-0036 IC-0036 IC-0036 IC-0036
10 Temp Sensor Harness HA-0878 HA-0878 HA-0878 HA-0878 HA-0878 HA-0878
11 Gate Leads (Eupec-Long) HA-0875 HA-0875 HA-0875 HA-0875 HA-0875 HA-0875
11a Gate Leads (Jinglai-Long) HA-400665-02 HA-400665-02 HA-400665-02 HA-400665-02 HA-400665-02 HA-400665-02
12 Gate Leads (Eupec-Short) HA-0876 HA-0876 HA-0876 HA-0876 HA-0876 HA-0876
12a Gate Leads (Jinglai-Short) HA-400665-01 HA-400665-01 HA-400665-01 HA-400665-01 HA-400665-01 HA-400665-01
13 Baseplate Insulator (3/8" bolt) HD-0637 HD-0637 HD-0637 HD-0637 HD-0637 HD-0637
13a Baseplate Insulator (1/2" bolt) HD-400506 HD400506 HD400506 HD400506 HD400506 HD400506
12.0 Replacement Parts
