Instruction Manual for CT 416 and 518 D & DX Series
© Copyright RAMSOND Corporation 2007 – All rights protected. Unauthorized reproduction, in part or whole prohibited.
®

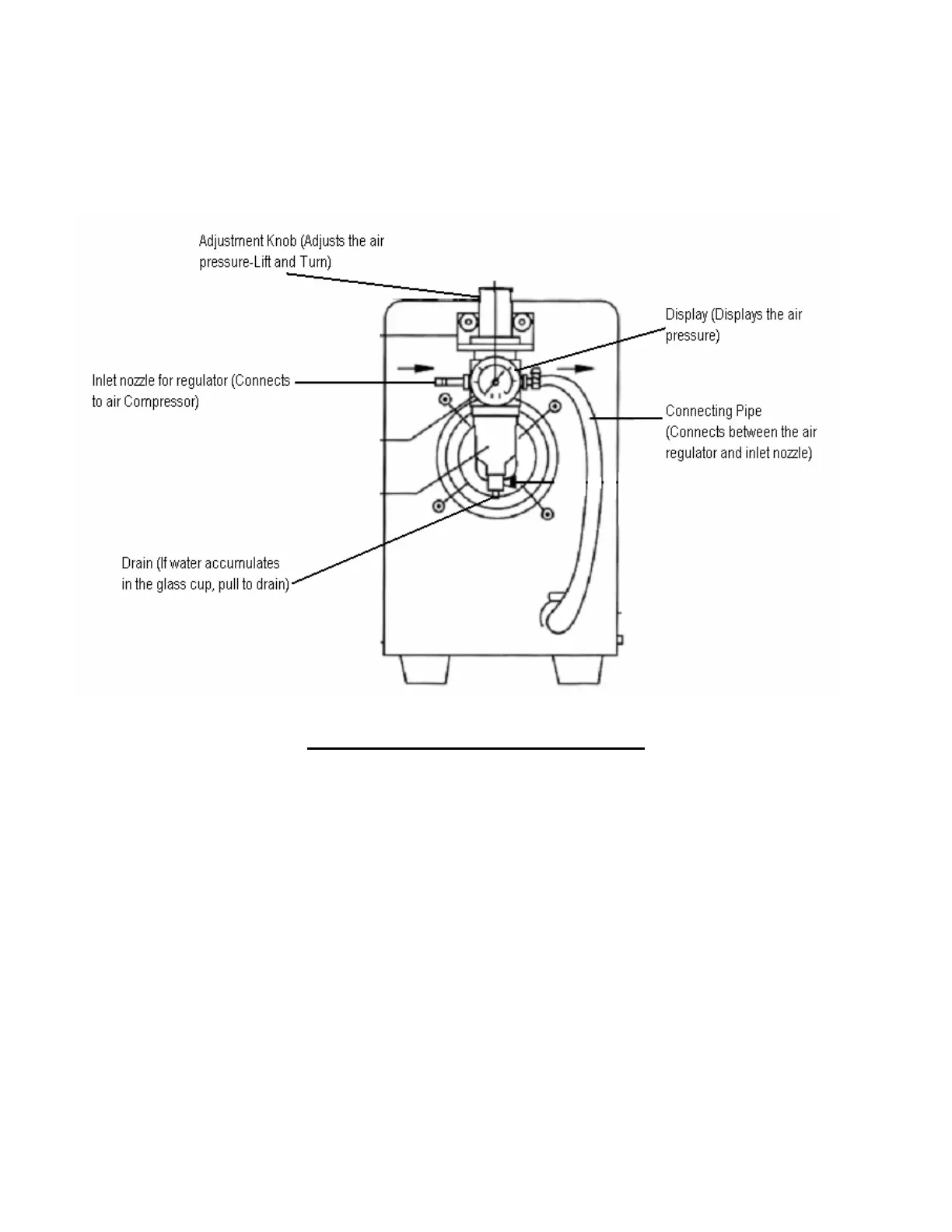

DIAGRAM #4
REAR AIR CONNECTION DIAGRAM
Connecting the Air/Gas Supply
Your Ramsond CT must be supplied with clean air with sufficient pressure and Argon gas
(for TIG) to operate. Never operate your machine’s TIG and Plasma function without
compressed air/gas. A multifunction air regulator/filter and an argon gas flow meter have
been supplied with your machine.
The air filter/regulator connects to the back of your machine. The two bolts on top are of
the machine connect to the bracket supplied with your air regulator/filter. There is also a
rubber hose and tightening clamps provided which connects between the air regulator/filter
and “gas in” nozzle of your machine. The filter/regulator is equipped with an adjustment
knob on top to control the air pressure. The display dial will change according to your
desired pressure. In the event of water accumulation in the glass cup, pull the nozzle on the
bottom to drain the water.
The argon flow meter will connect to the argon tank.
