Instruction Manual for CT 416 and 518 D & DX Series
© Copyright RAMSOND Corporation 2007 – All rights protected. Unauthorized reproduction, in part or whole prohibited.
®
PLASMA CUT FUNCTION
1. Ensure proper connection before you begin. See Diagram 3.
2. Turn on the power Switch.

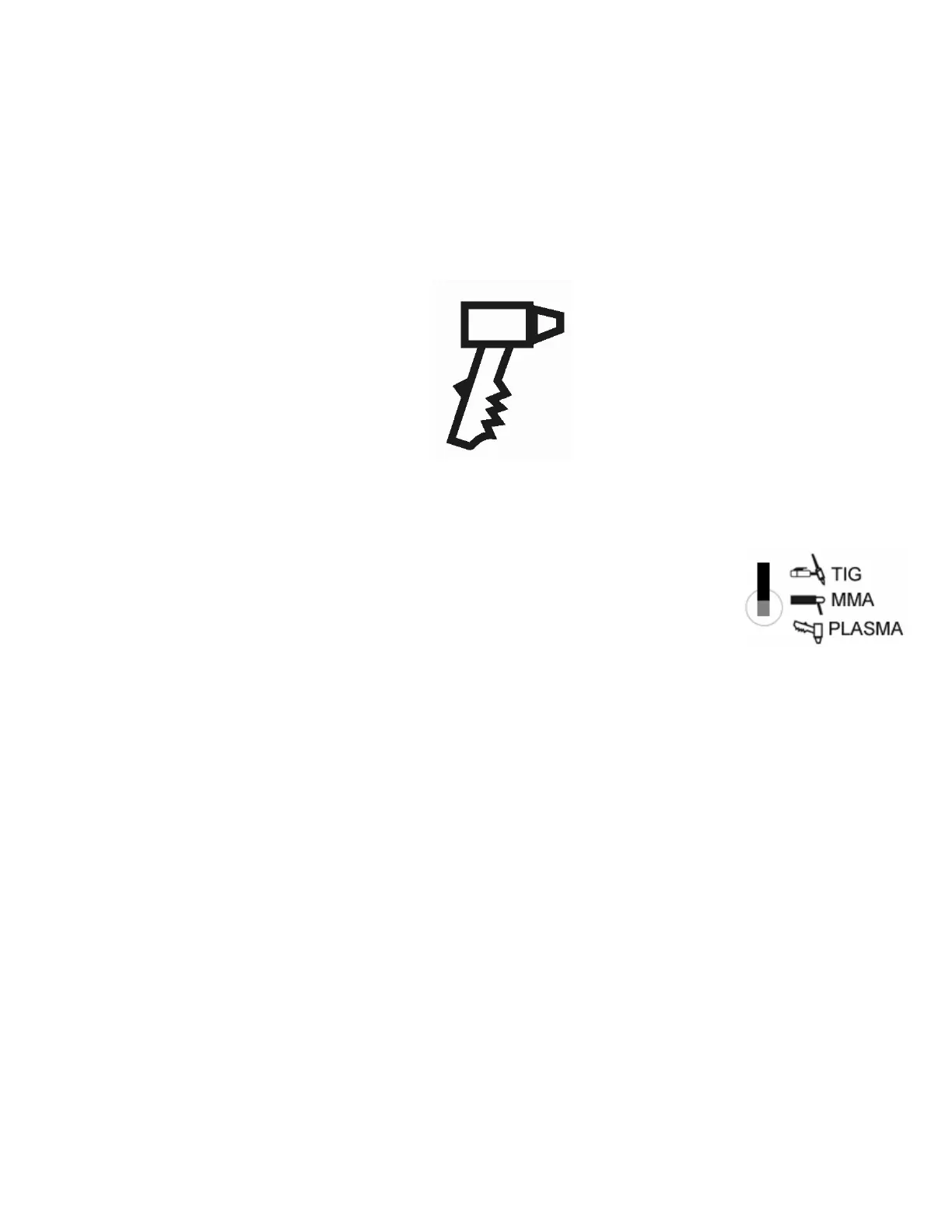

3. Move the toggle switch of the function selector to plasma cut
position.
4. Set a desired current according to the thickness of the work piece and its
material.
5. Turn on the air regulator and achieve a minimum 30 psi air pressure.
6. Push down the torch button. At this time you should hear the HF arc. The
compressed air will also begin to flow at this time.
7. Bring the tip of the torch close to the work piece (sometimes it is necessary
to touch the work piece) and you will achieve plasma arc you can begin your
work now. After the arc-starting, keep the nozzle and work piece about 1mm
from each other, which is good for protecting the nozzle and consumables.
Page 12
