Ramsond CT Series - CONNECTION DIAGRAM (TIG and MMA FUNCTION); DIAGRAM #2

R amsond
Instruction Manual for CT 416 and 518 D & DX Series
© Copyright RAMSOND Corporation 2007 – All rights protected. Unauthorized reproduction, in part or whole prohibited.
®

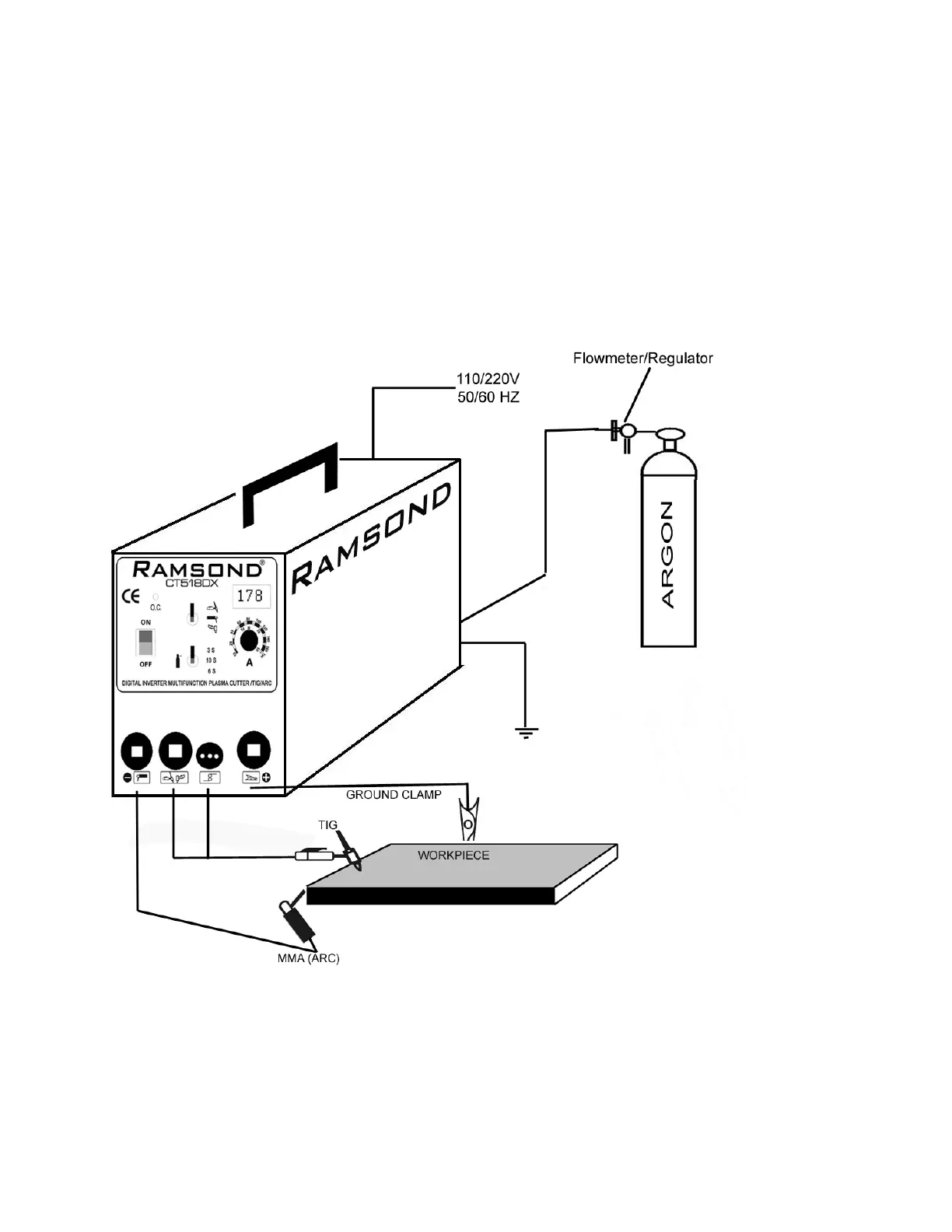

CONNECTION DIAGRAM
(TIG and MMA FUNCTION)
DIAGRAM #2
ENSURE THE PROPER GROUNDING OF THE CUTTING SURFACE. IF THE
WELDING SURFACE IS NOT PROPERLY GROUNDED, YOU WILL NOT GET
ADEQUATE ARC. DEBRIS, RUST AND OTHER PARTICLES MUST BE
REMOVED TO ENSURE PROPER GROUNDING OF THE WORK SURFACE.
Page 6
