6.2.7 Transferring configuration files
You can use the interface box and your computer to transfer configuration files between EcoCool configuration software and a controller. Configuration files
can be downloaded to the controller or copy card and uploaded to your computer.
Disconnect power to the controller. Power is supplied by the interface box.

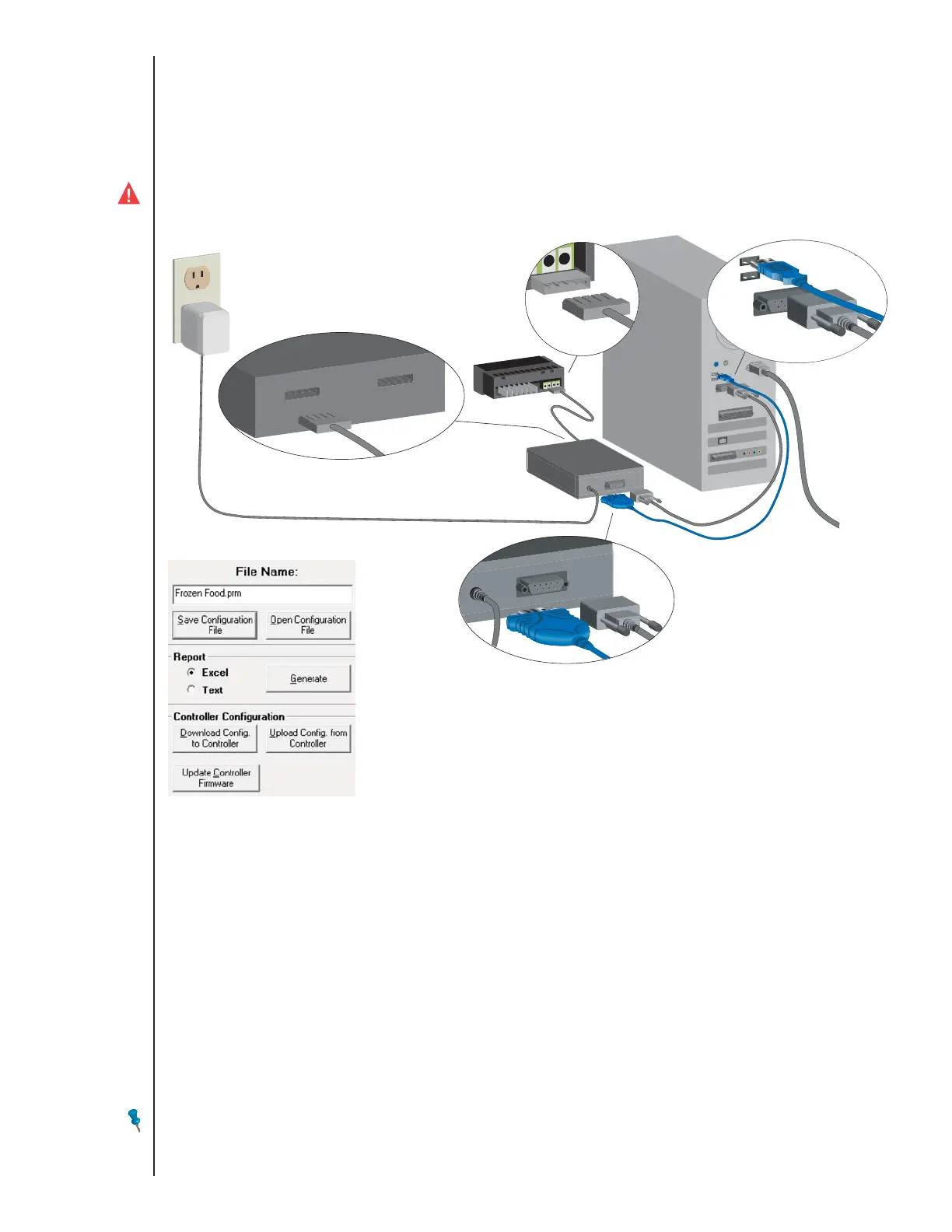

Connect the controller to the interface box as shown below.
Connect the interface box to the computer using either the RS232 db9 serial cable OR the USB to RS232 db9 converter cable (shown in blue below).
WARNING: The controller must not be connected to power while configuring it with the interface box.
6.2.7.1 Downloading a configuration file to a controller from EcoCool configuration
software:
Start EcoCool configuration software.
Create a configuration or select the configuration file and click Open Configuration File to load the values into EcoCool configuration software.
Click Download Config. to Controller.
Follow the on screen prompts.
Disconnect the controller from the interface box.
6.2.7.2 Uploading a configuration file from a controller to EcoCool configuration software:
Start EcoCool configuration software.
Click Upload Config. from Controller.
Follow the on screen prompts.
Disconnect the controller from the interface box.
The configuration is loaded into EcoCool configuration software and can be viewed or modified.
To save the configuration file, enter a filename and click Save Configuration File.
NOTE: Be sure that the correct File Name is displayed before you click Save Configuration File.
Disconnect the controller from the interface box.
Type E7 EcoCool™ Electronic Temperature and Defrost Controllers
©2008 Invensys Controls All rights reserved.
