FX1- 4N1 Control Operation con’t
Running cycle
H Hold Mode operates at any set point temperature.
Set point from factory is at 35°F
aux2 When lit Auxiliary function mode in operation
IP1, IP2, IP3 When lit indicates insert probe is in use
Auxiliary
relay

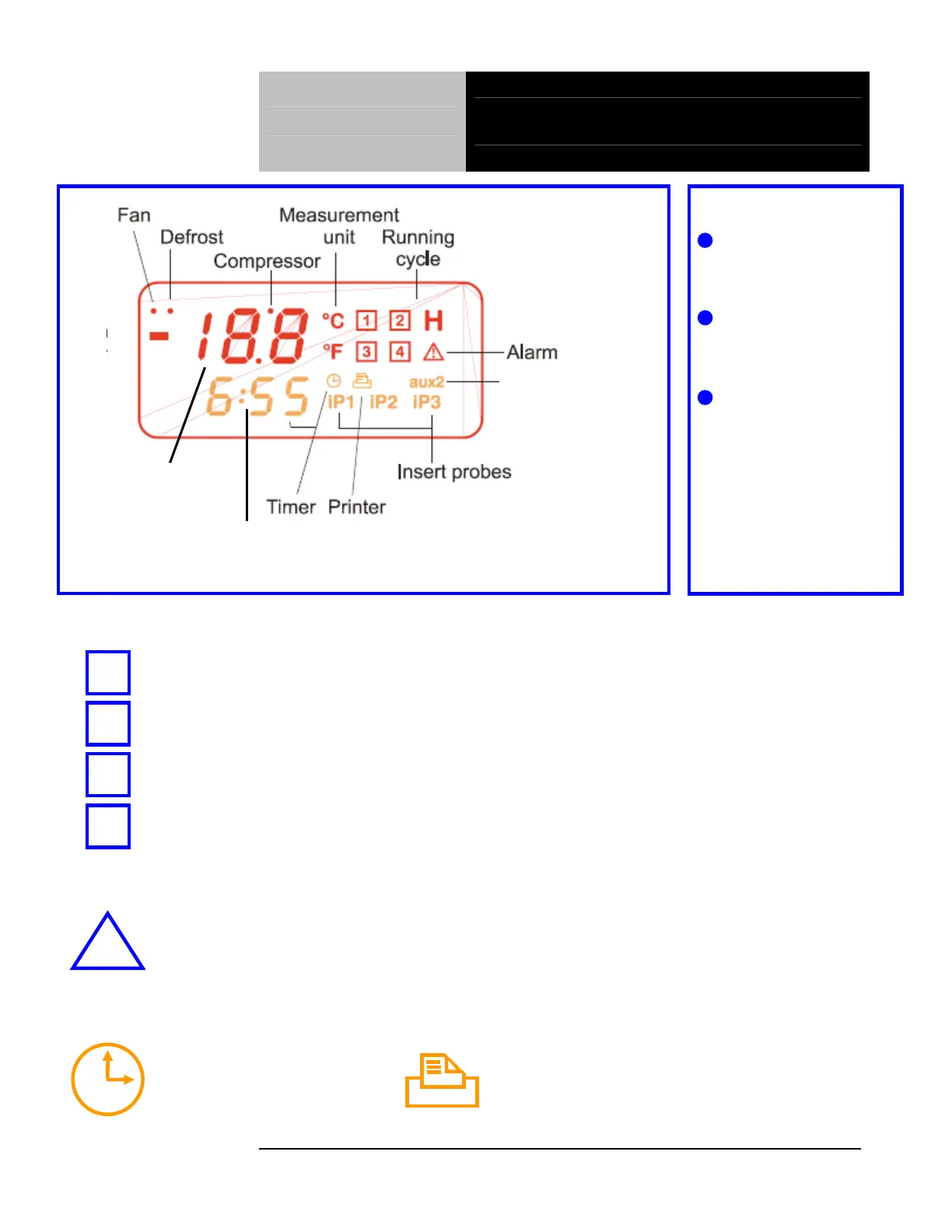

DISPLAY KEY:
Fan light – when
lit evaporator fan
is running
Defrost light –
when lit defrost
cycle on
Compressor light
– when lit
compressor is
running
Measurement unit
°C = Celsius
°F = Fahrenheit
1
2
3
4
Refrigerator mode operating set point at 35°F
Freezer mode operating set point at -4°F
Quick Chill mo
de chills 22 lbs of hot product to 35°F and holds
automatically in refrigerated mode
Rapid Thaw mode thaws 20 lbs of frozen product in
approximately
6 hours and holds automatically in refrigerated mode
Alarm display indicates failure
!
When lit Time
r mode is set
When lit Printer is on
Cabinet
Temperature
display
Timer/Clock/Insert probe temperature
(IP1, IP2, IP3)
