R&M CMX 007 - Page 13

2

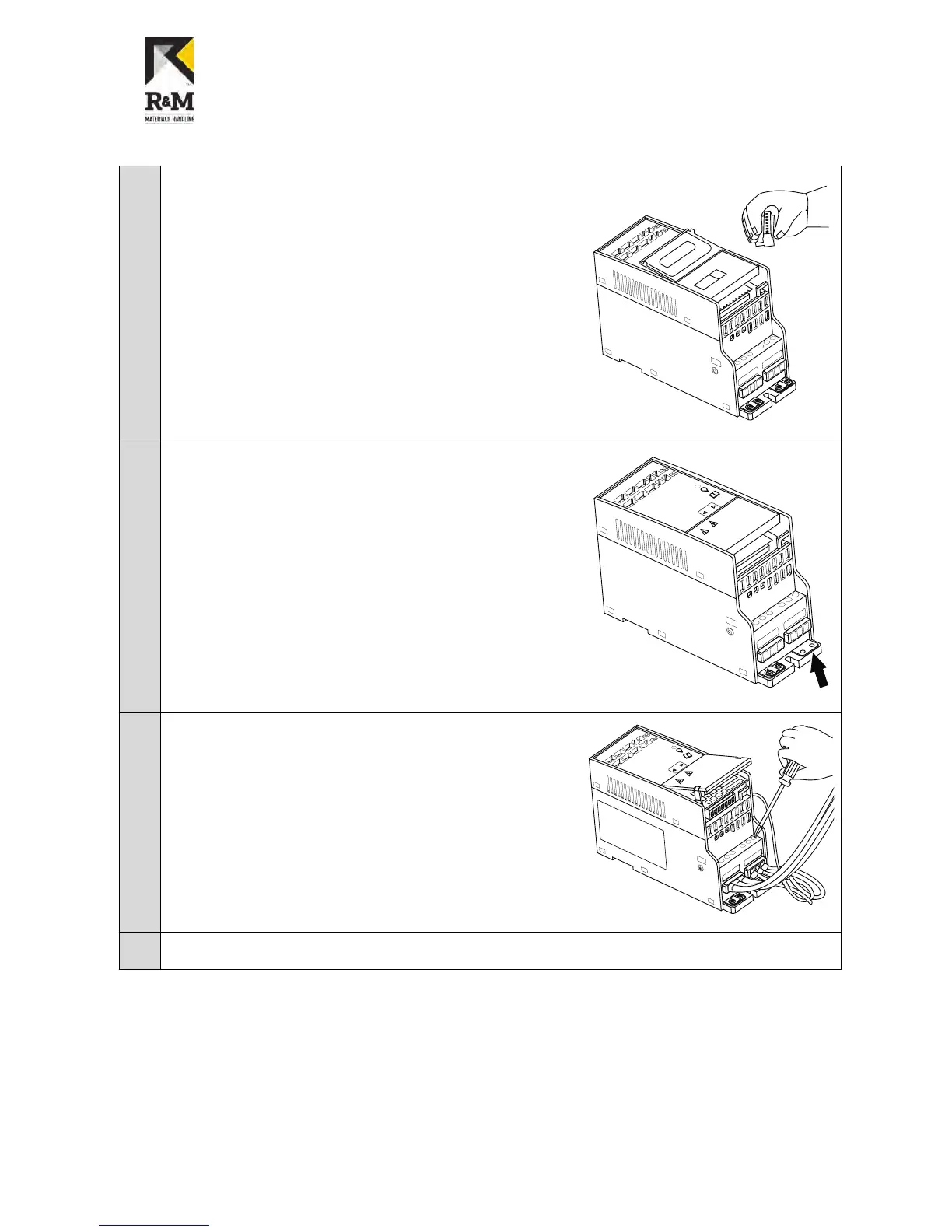

Remove the input wire terminal from the ControlMaster®NXT
003 frequency converter.
S6
S7
S8
S9
S10
S1
S5
S4
S3
S2
1
0
1
0
3
Remove the grounding wire connector. See image. Leave the
other in place.
The inverter doesn't fit into the motor
connection box otherwise.
S6
S7
S8
S9
S10
S1
S5
S4
S3
S2
1
0
1
0
OK
4
Connect the frequency converter power supply wires; L1, L2,
L3 and motor power supply wires; U,V,W.
S6
S7
S8
S9
S10
S1
S5
S4
S3
S2
1
0
1
0
OK
DANGER
5
Set the correct dip switch settings according to commissioning tables.
R&M Materials Handling, Inc.
4501 Gateway Boulevard
Springfield, Ohio 45502
P.: (937) 328-5100
FAX: (937) 325-5319
13/28
R&M Materials Handling, Inc. reserves the right to alter or amend the above information without notice.
