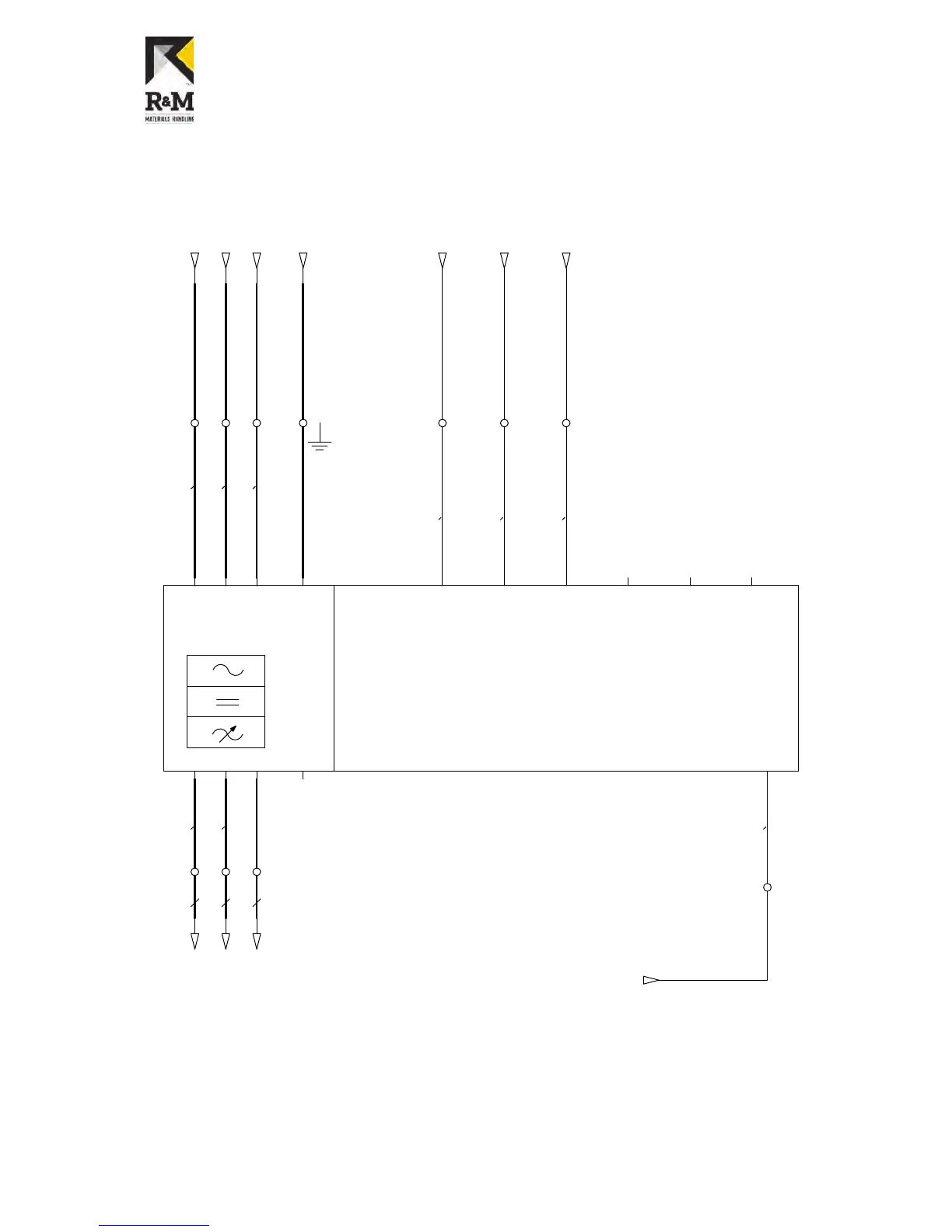

R&M CMX 007 - Electrical Connection Diagram

7 ELECTRICAL DRAWING
Frequency controllerControlMaster®NXT
L1
L2
L3
PE
11
21
41
X1
L1 L2 L3 PE
2.5 mm²
L1 L2 L3 PE
L1 L2 L3 PE
TRAVELLING INVERTER
TMK003E0100WMM
A1
U
V
W
PE
U
V
W
PE
2.5 mm²
W1
X1
U
V
W
BN
BK
GY
L11
L21
L31
TRAVEL MOTOR
SIIRTOMOOTTORI
X1
8 9 10
1 2 3 4 5 6
DI1
DI2
DI4
DI3
DI5
DI6
DI1 DIRECTION 1
DI1 SUUNTA 1
DI2 DIRECTION 2
DI2 SUUNTA 2
DI3-6 DIGITAL INPUT
DI3-6 DIG.TULO
DCOM
DCOM OHJAUSJÄNNITE, NOLLA
CONTROL VOLTAGE, NEUTRAL
DCOM
7
11
X1
ON
