R&M CMX 007 - DIP Switch Configuration

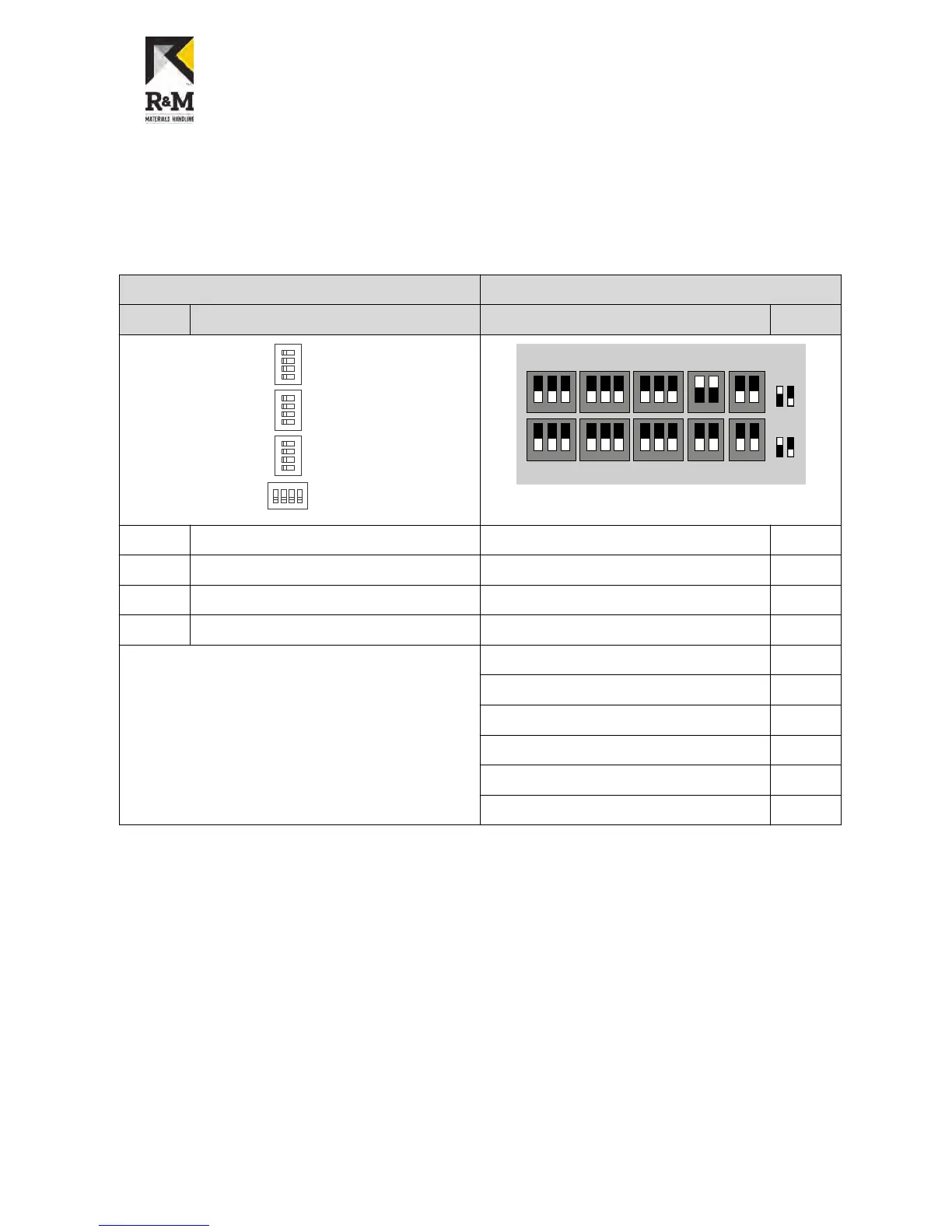

3.4 DIP switches
CMX 007 has 4 groups
of DIP switches (S1-S4), whereas ControlMaster®NXT has 10 groups of DIP switches
(S1-S10).
The correct DIP switch settings for ControlMaster®NXT 003 can be found in Chapter 5: “Commissioning”.
CMX 007 ControlMaster®NXT 003
Switch Description Description Switch
S1
S2
S3
S4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
ON
1 2 3 4
DIP DIP DIP
DIP
1
2
1
2
1
2
1
2
31
2
31
2
3
1
2
31
2
31
2
3
1
2
S1 S2 S3 S4 S5
S6 S7 S8 S9 S10
1
0
1
0
S1 Maximum driving frequency Maximum driving frequency S1
S2 Minimum driving frequency Minimum driving frequency S2
S3 Acceleration and deceleration ramp times Acceleration and deceleration ramp times S3
S4 Control mode and motor type Control method and slowdown mode S4
Limit operations S5
Voltage at low frequencies (U/f curve) S6
Current limit S7
Start and stop current S8
Motor nominal frequency S9
Terminal DI6 operation S10
