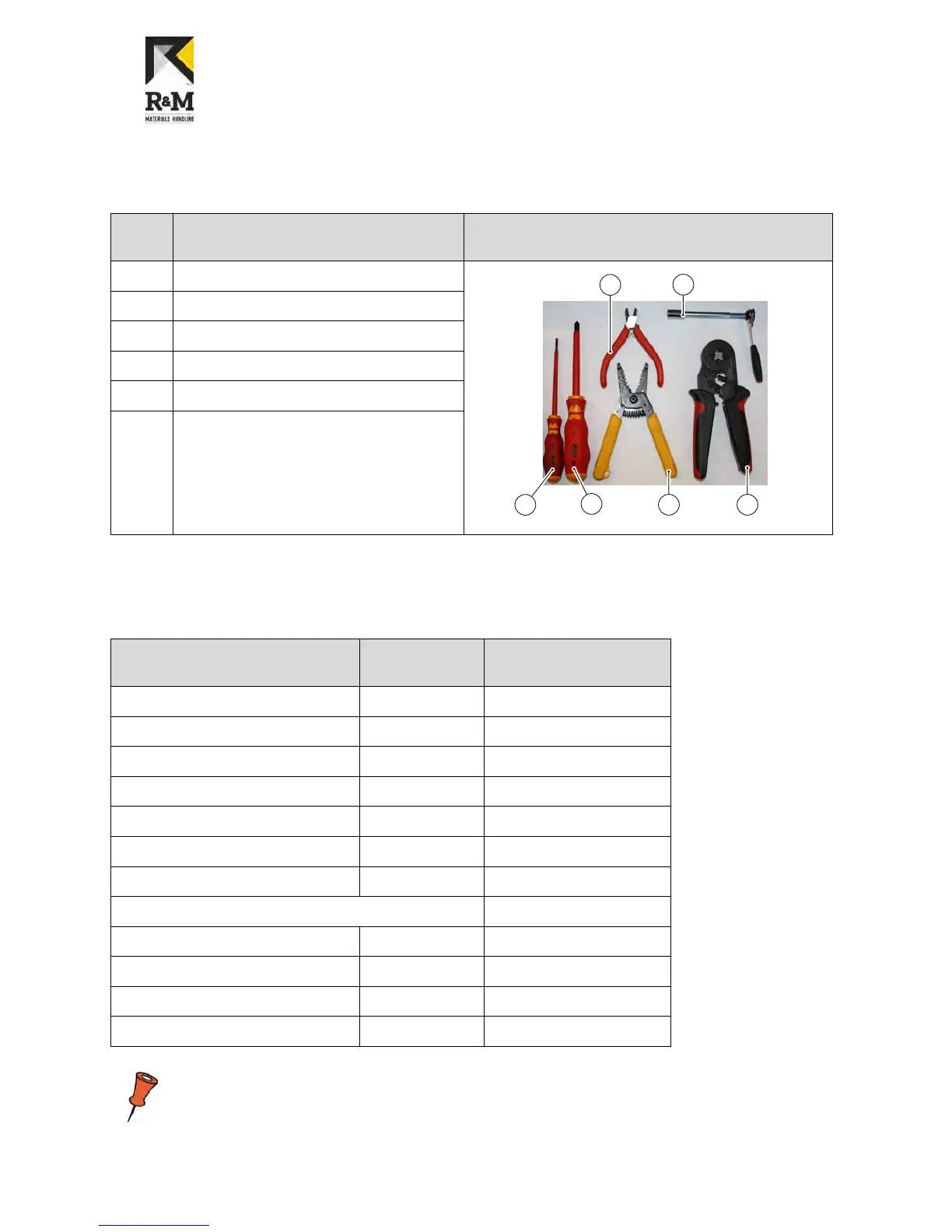

3.2 Required tools
Item
No
Name Image
1 Screwdriver, slot-head 3.5 x 0.6 mm
3
1
2
4
6
5
2 Screwdriver, Phillips No. 2 (PH2)
3 Wire cutters
4 Socket wrench, 8 mm
5 Crimping tool for wire end ferrules
6 Wire strippers
3.3 Terminal connections
The following table describes the differences between the terminals of CMX 007 and ControlMaster®NXT
003 .
Description of terminal CMX
007 Terminal X1
ControlMaster®NXT
003 Power terminals
Protective earth 1 PE
Power supply, phase 1 2 L1
Power supply, phase 2 3 L2
Power supply, phase 3 4 L3
Motor supply, phase 1 5 U
Motor supply, phase 2 6 V
Motor supply, phase 3 7 W
Control board terminals
Drive command, direction1 8 1
Drive command, direction 2 9 2
Speed 2 / Acceleration command 10 3
Control voltage, common 11 7
Terminals 4, 5 and 6 in ControlMaster®NXT 003 control board are not used.
