VNA GUI reference
R&S
®
ZNL/ZNLE
311User Manual 1178.5966.02 ─ 20
●
While in Cartesian diagrams the x-axis represents the stimulus values, in polar and
Smith diagrams this direct relation is lost. In any case, a marker can be used to dis-
play the stimulus value of a given trace point.
For "Time Domain" traces, points in the "observation interval" are interpreted as
stimulus values.
●
All stimulus settings except the "Time Domain" settings are channel settings. "Time
Domain" applies to the active (time domain) trace only.
Background information
Refer to Chapter 9.1.3, "Traces, channels and diagrams", on page 185.
10.2.1 Stimulus tab
Defines the sweep range in the current channel, depending on the sweep type.
Related Settings
Refer to the following sections:
●
Chapter 9.1.4.2, "Stimulus and sweep types", on page 189
●
Chapter 10.5.2, "Sweep Type tab", on page 327
The following "Stimulus" settings are also available on the "Power" tab:
●
Power
●
Start Power / Stop Power
(R&S ZNL only)
Start Frequency / Stop Frequency / Center Frequency / Span Frequency
Defines the sweep range for non-segmented frequency sweeps.
For a Lin Freq sweep, setting "Start Frequency" and "Stop Frequency" or "Center Fre-
quency" and "Span Frequency" are alternatives.

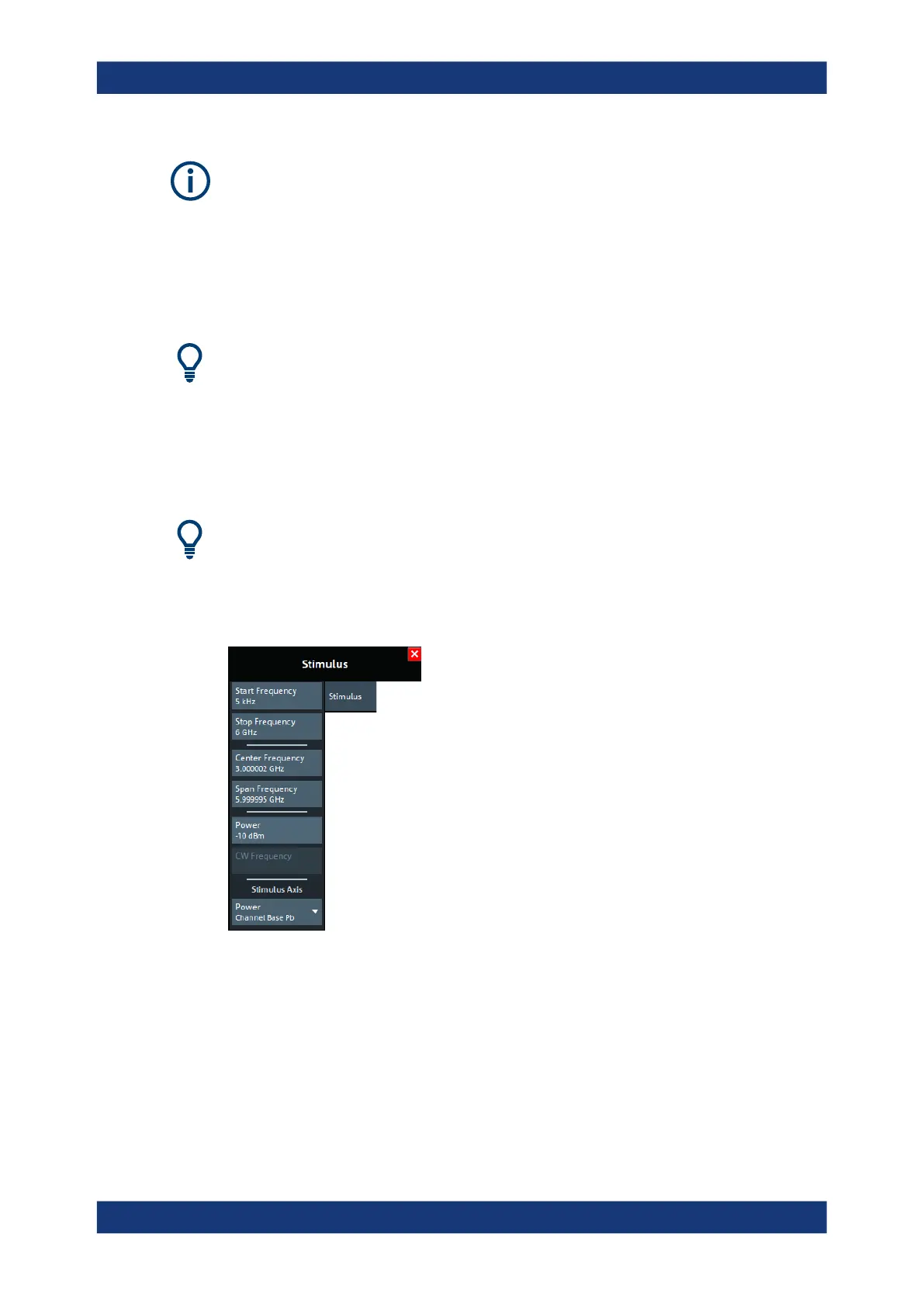

Stimulus softtool
