INSTALLATION
Check the appliance is electrically safe and gas sound when you have nished.
19
ArtNo.090-0028 - 90 cooker min spacing GENERIC
All dimensions are in mm
650 min. with hood
5 5
420 min.
700 min. without hood
Air inlet section
min. 100 cm
2
Air inlet section
min. 100 cm
2
COOKER
COOKER
Air inlet section
min. 100 cm
2
Air inlet section
min. 100 cm
2
Cooker
hood
flue
Electrical ventilator
COOKER
COOKER
Fig. 7.1
Fig. 7.2
Fig. 7.3

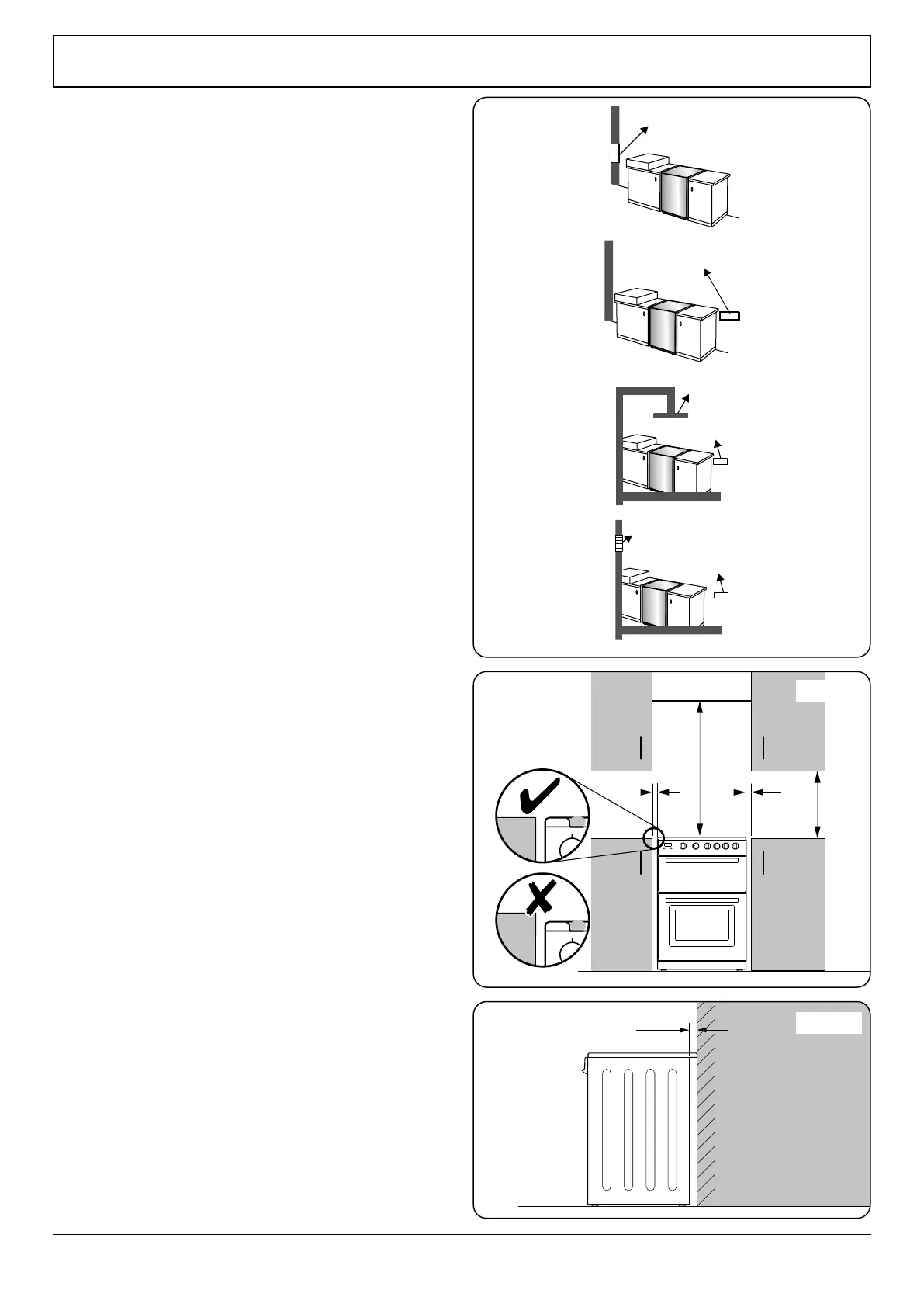

Positioning the Cooker
Fig. 7.2 shows the minimum recommended distance from
the cooker to nearby surfaces.
The cooker should not be placed near the fridge or on a base.
The hotplate surround should be level with, or above, any
adjacent work surface.
The cooker is designed to t between kitchen cabinets
spaced over 600 mm apart. 5 mm clearance either side of the
appliance is recommended to allow removal of the cooker for
servicing.
A minimum space of 700 mm is required between the top of
the hob and a horizontal combustible surface. This can be
reduced to 650 mm if a cookerhood is installed.
*Any cookerhood should be installed in accordance with the
hood manufacturer’s instructions.
**Any splashback must be tted in accordance with the
manufacturers instructions.
It is recommended that there is at least 20 mm space between
the back cover of the cooker and the wall, for air circulation
(Fig. 7.3).
Adjacent kitchen furniture must be heat resistant to 90 °C.
General instructions
After removing the packaging material from the appliance
and its accessories, ensure that the appliance is not
damaged. If you suspect any damage, do not use it and
contact an authorised service person or qualied technician
immediately.
Make sure that there are no ammable or combustible
materials in the close vicinity, such as curtains, oil, cloth etc.
which may catch re.
The worktop and furniture surrounding the appliance must
be made of materials resistant to temperatures above 100°C.
The appliance should not be installed directly above a
dishwasher, fridge, freezer, washing machine or clothes dryer.
The appliance can be placed close to other furniture on
condition that, in the area where the appliance is set up, the
furniture’s height does not exceed the height of the cooktop.
Installation of the Cooker
If the kitchen furniture is higher than the cooktop, the kitchen
furniture must be at least 10 cm away from the sides of
appliance for air circulation.
Moving the Cooker
n
On no account try and move the cooker while it is
plugged into the electricity supply.
n
The cooker is very heavy, so take great care.
n
Do not try to lift or move the cooker by pulling on
the door handles.
