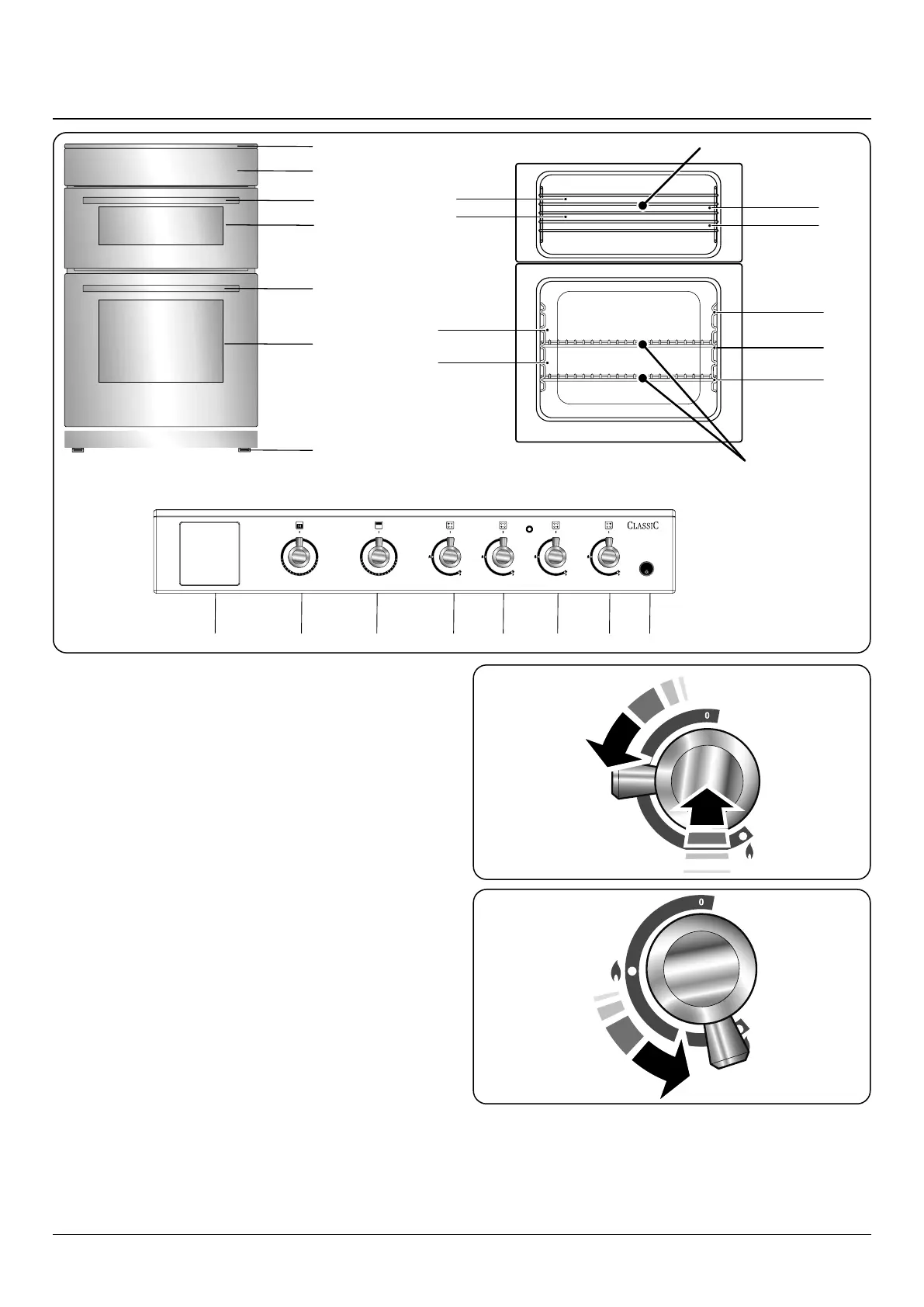

The 60cm cooker (Fig. 2.1) has the following features:
1. Cooktop
2. Control Panel
3. Top Oven Door Handle
4. Top Oven Door
5. Main Oven Door Handle
6. Main Oven Door
7. Adjustable Feet
8. Button (Ignition/Oven Lamp)
9. Timer
10. Main Oven Control Knob
11. Top Oven Control Knob
12. Hob Control Knob
Hotplate Burners
The drawing by each of the knobs indicates which burner
that knob controls.
Each burner has a Flame Supervision Device (FSD) that
prevents the ow of gas if the ame goes out.
To ignite a hotplate burner push in and turn the associated
control knob counterclockwise to the high position as
indicated by the large ame symbol (

), (Fig. 2.2).
1
2
3
4
5
6
7
1 at shelf
2 at shelves
TOP OVEN
MAIN OVEN
Shelf Position 2
Shelf Position 4
Shelf Position 1
Shelf Position 3
Shelf Position 2
Shelf Position 4
Shelf Position 5
Shelf Position 3
Shelf Position 1
9
10
11
12
12
12
8
12
Fig. 2.1
Fig. 2.2
Fig. 2.3
2. Cooker Overview
