6 | Electrical connection
46 / 92
80.06.070_iCombi Pro-iCombi Classic_IM_V01_en-GB
2.

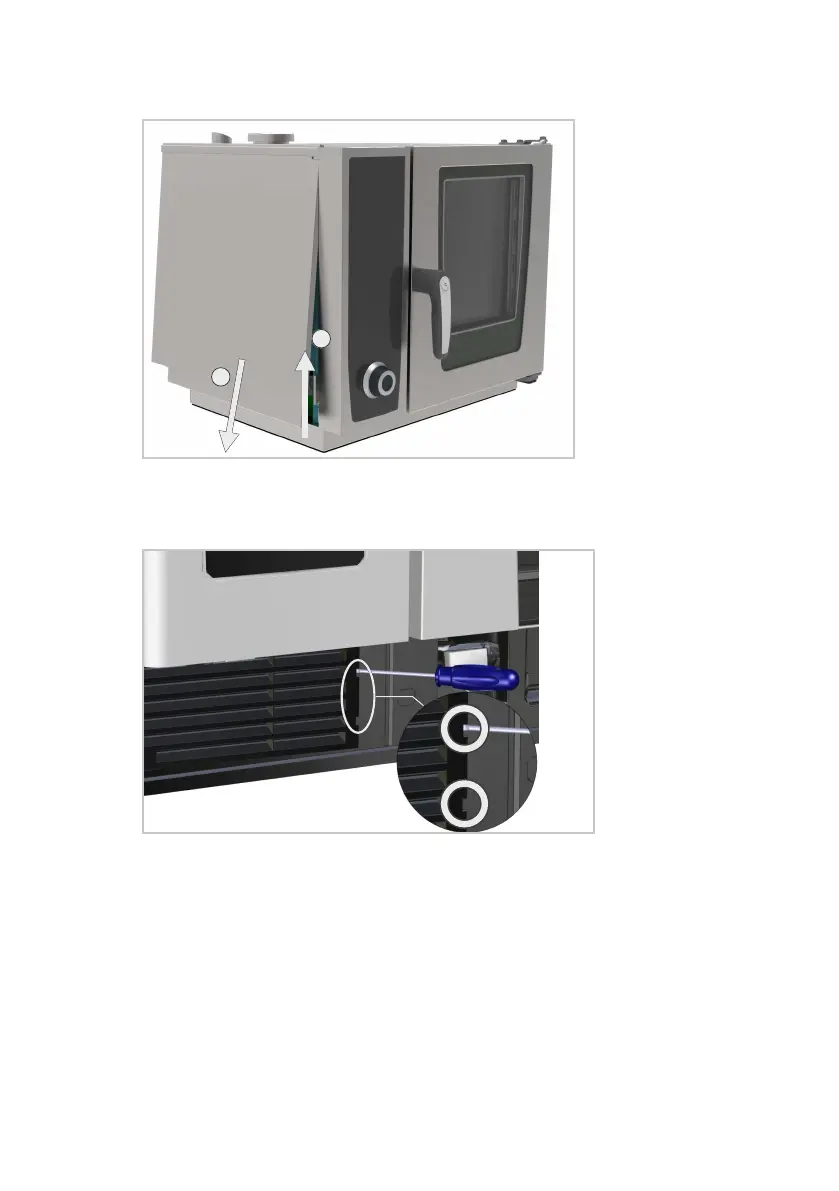

Lift up the left side panel from below and pull the side panel downwards
away from the unit.
1
2
>>
The electrical compartment is open.
Unit size 6-1/1 GN up to 10-2/1 GN
1.
Lever out the grating underneath the control panel with a screwdriver.
45
47
